Astra H

Replace turbocharger solenoid valve

  Remove

1.   Raise vehicle by its full height

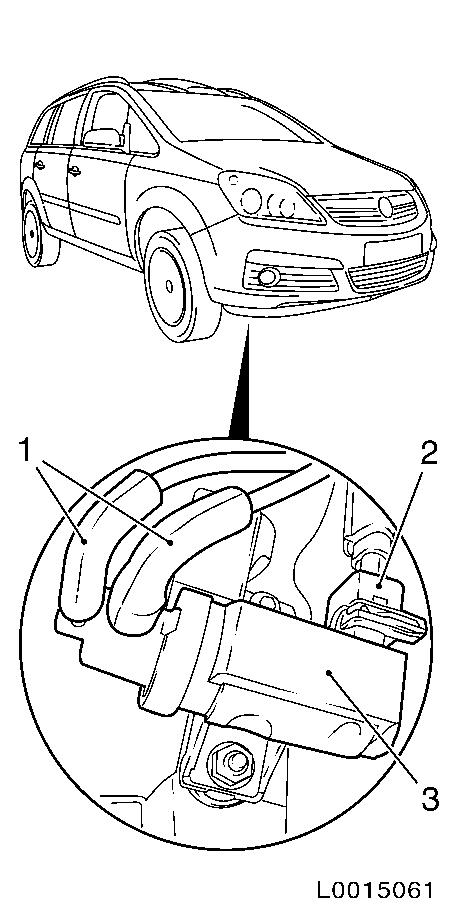

2.   Remove turbocharger solenoid valve (3)
•   Disconnect wiring harness plug (2)
•   Detach 2x vacuum hoses (1)
Note:   Mark affiliation
•   Unscrew 2x nuts
Object Number: 8230694 Size: DEFAULT


  Install

3.   Install turbocharger solenoid valve
•   Tighten 2x nuts
•   Attach 2x vacuum hoses
Note:   Pay attention to marks
•   Fix wiring harness plug
4.   Lower vehicle by its full height
