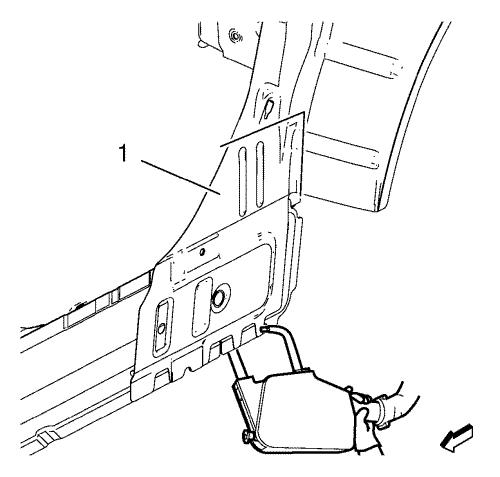

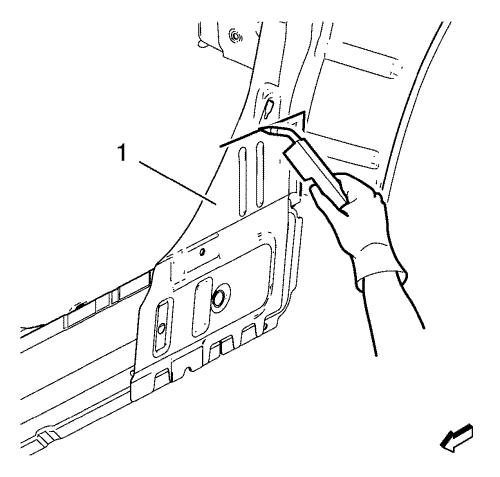

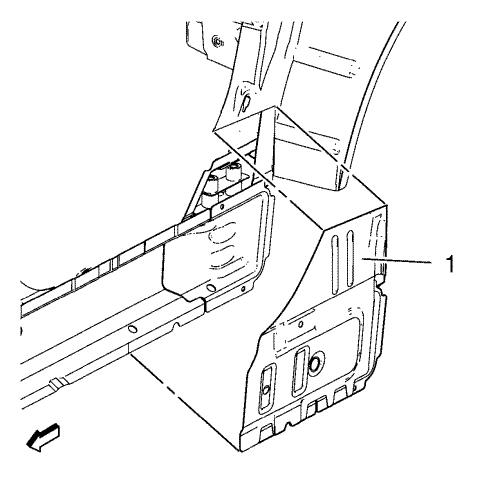

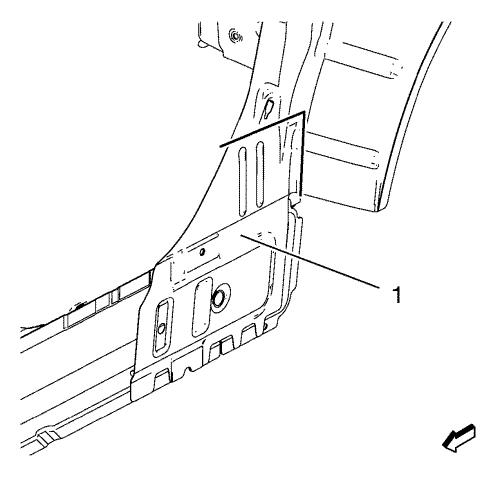

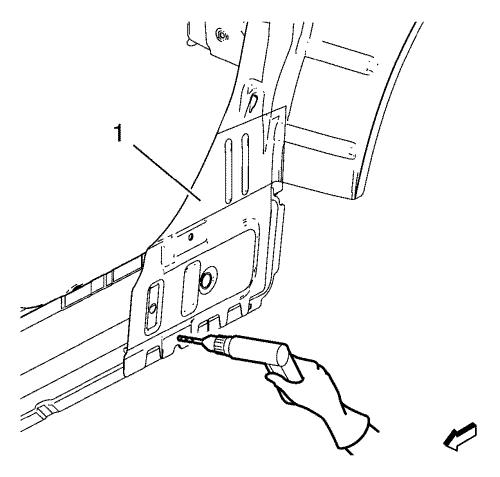

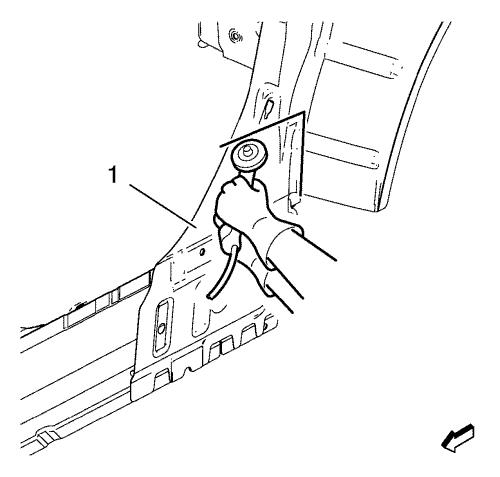

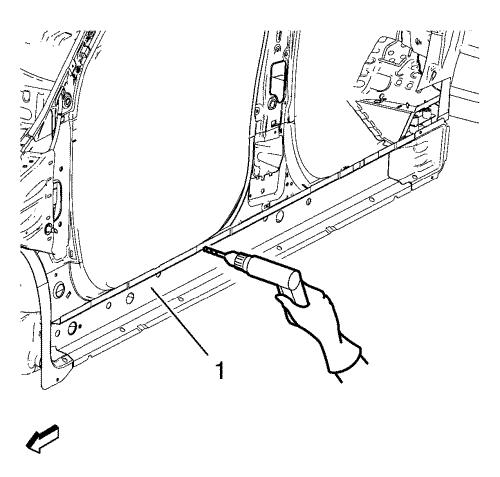

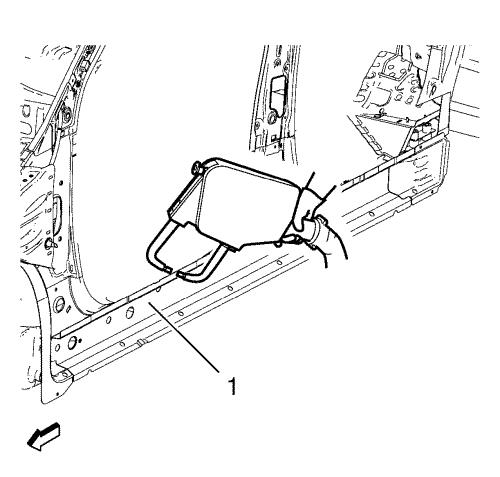

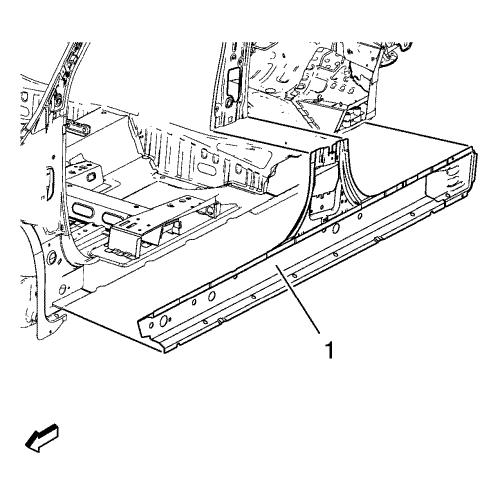

Rocker Inner Panel Replacement Note:  According to different corrosion warranties, only the regional mandatory joining methods are allowed. Removal Procedure Warning:  Refer to Approved Equipment for Collision Repair Warning . Warning:  Refer to Collision Sectioning Warning . Warning:  Refer to Glass and Sheet Metal Handling Warning . 1. Disable the SIR System. Refer to SIR Disabling and Enabling . 2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . 3. Remove all related panels and components. 4. Visually inspect the damage. Repair as much of the damage as possible. 5. Remove the sealers and anti-corrosion materials from the repair area, as necessary.            6. Create cut lines on the body side inner panel (1).            Note:  Do not damage any inner panels or reinforcements. 7. Cut the panel (1) where sectioning is to be performed.            8. Locate and mark all the necessary factory welds of the body side inner panel (1). 9. Drill all factory welds.            10. Remove the body side inner panel (1).            11. Locate and mark all the necessary factory welds of the rocker inner panel (1). 12. Drill all factory welds.            13. Remove the damaged rocker inner panel (1). Installation Procedure 1. Align the rocker inner panel. 2. Clean and prepare the attaching surfaces for spot welding. 3. Apply structural adhesive to all attaching surfaces.            4. Position the rocker inner panel (1) on the vehicle. 5. Verify the fit of the quarter outer panel. 6. Clamp the rocker inner panel into position.            7. Spot weld the rocker inner panel (1) accordingly.            8. Spot weld the body side inner panel (1) accordingly.            9. Braze the body side inner panel (1) accordingly. 10. To create a solid braze with minimum heat distortion, make 25 mm (1 in) stitch brazes along the seam with 25 mm (1 in) gaps between them. Then go back and complete the stitch braze. 11. Apply the sealers and anti-corrosion materials to the repair area, as necessary. 12. Paint the repaired area. 13. Install all related panels and components. 14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . 15. Enable the SIR system. Refer to SIR Disabling and Enabling .
