Air Injection Pump Relay: Diagrams (page 52 of 227)
- Make
- Volvo
- Model
- XC90 AWD
- Engine
- V8-4.4L VIN 85 B8444S
- Year
- 2005
- Section
- Relays and Modules - Emission Control Systems › Air Injection Pump Relay › Diagrams
Relays and ModulesDiagram Information and Instructions · page 52 of 227

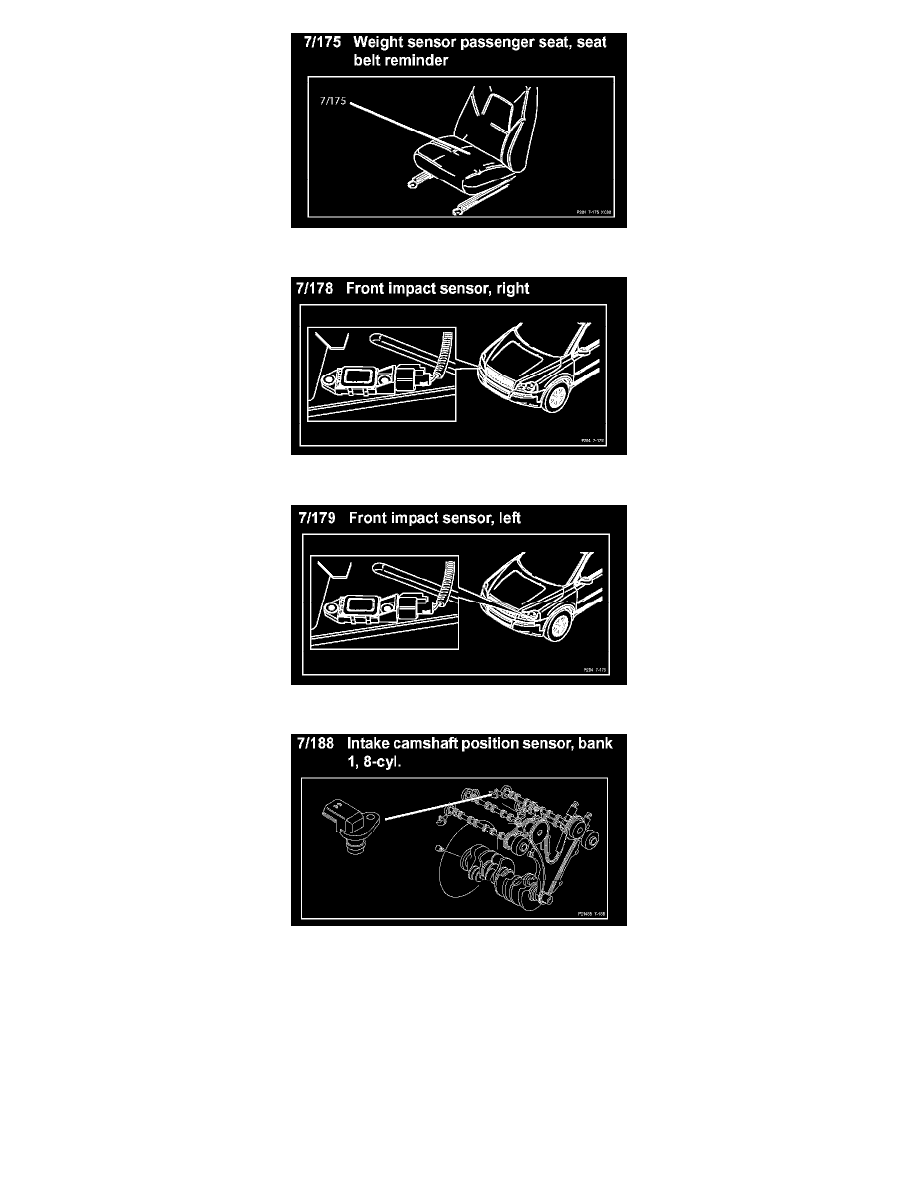

7/175 Weight Sensor Passenger Seat, Seat Belt Reminder
7/178 Front Impact Sensor, Right
7/179 Front Impact Sensor, Left
7/188 Intake Camshaft Position Sensor, Bank 1
