145 electrical system diagnosisConnector c

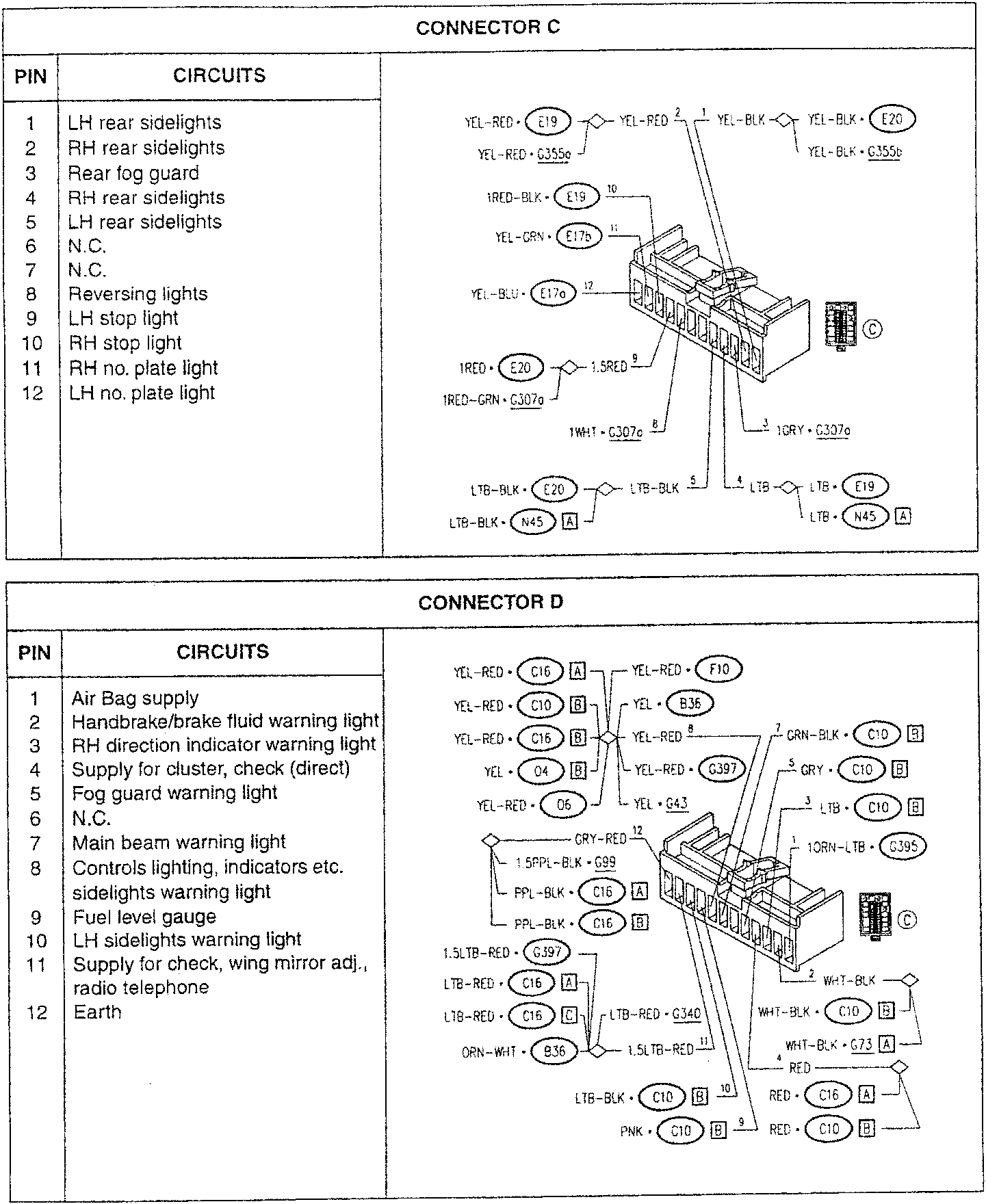

CONNECTOR C

PIN	CIRCUITS
1	LH rear sidelights
2	RH rear sidelights
3	Rear fog guard
4	RH rear sidelights
5	LH rear sidelights
6	N.C.
7	N.C.
8	Reversing lights
9	LH stop light
10	RH stop light
11	RH no. plate light
12	LH no. plate light

CONNECTOR D

PIN	CIRCUITS
1	Air Bag supply
2	Handbrake/brake fluid warning light
3	RH direction indicator warning light
4	Supply for cluster, check (direct)
5	Fog guard warning light
6	N.C.
7	Main beam warning light
8	Controls lighting, indicators etc. sidelights warning light
9	Fuel level gauge
10	LH sidelights warning light
11	Supply for check, wing mirror adj., radio telephone
12	Earth
