F1

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox › F1

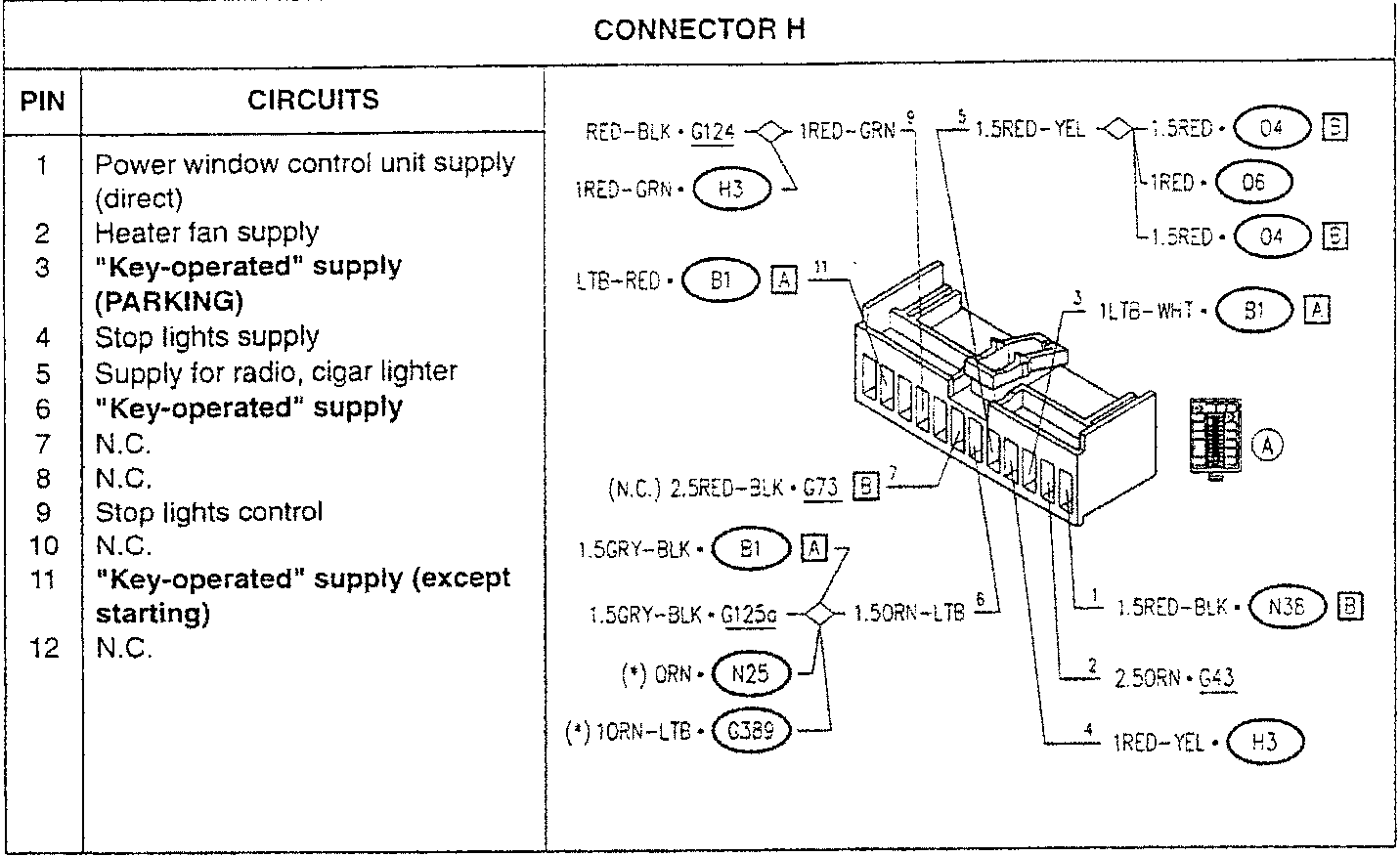

145 electrical system diagnosisF1

F1

PIN	CIRCUITS
1	Power window control unit supply (direct)
2	Heater fan supply
3	"Key-operated" supply (PARKING)
4	Stop lights supply
5	Supply for radio, cigar lighter
6	"Key-operated" supply
7	N.C.
8	N.C.
9	Stop lights control
10	N.C.
11	"Key-operated" supply (except starting)
12	N.C.

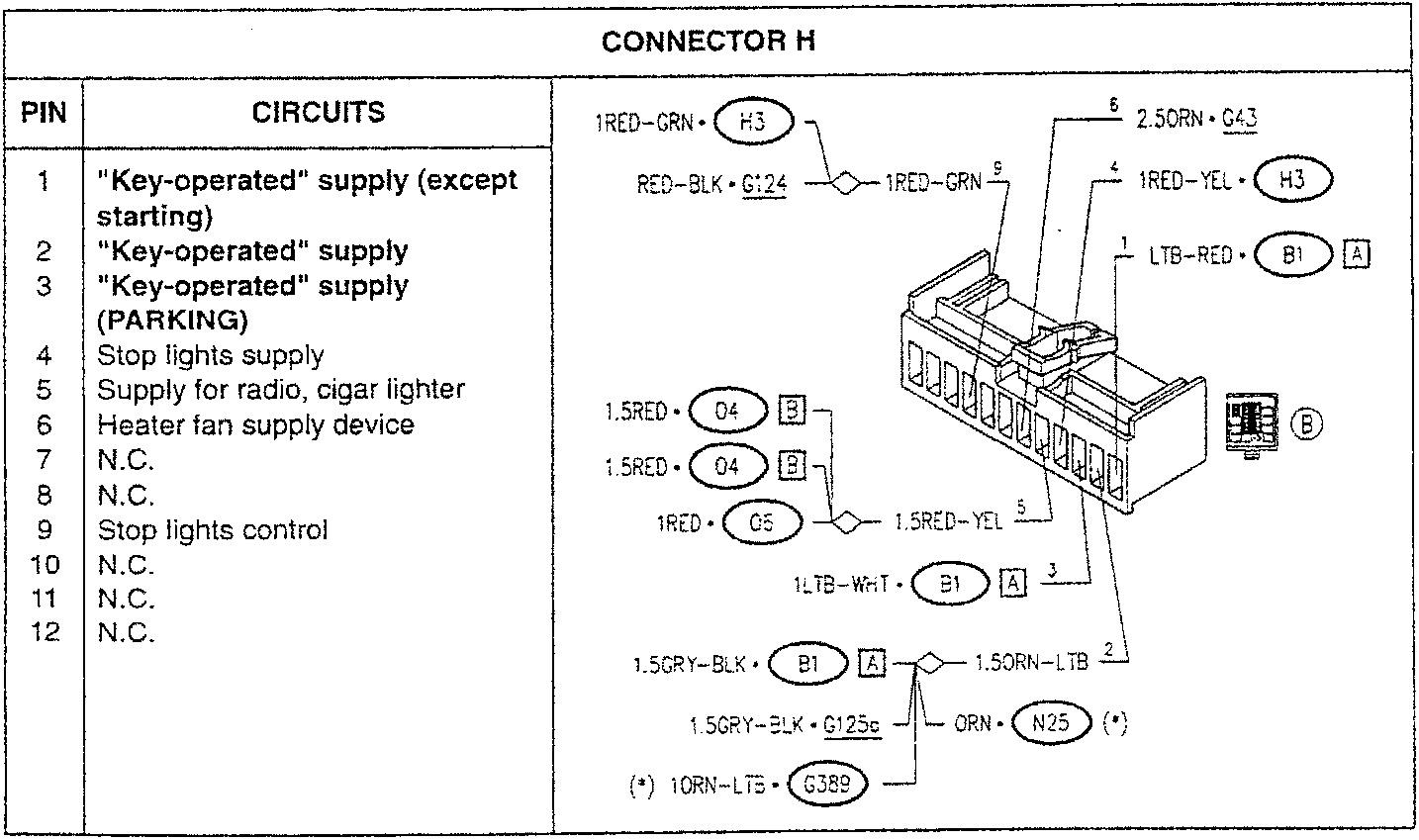

F2

PIN	CIRCUITS
1	"Key-operated" supply (except starting)
2	"Key-operated" supply
3	"Key-operated" supply (PARKING)
4	Stop lights supply
5	Supply for radio, cigar lighter
6	Heater fan supply device
7	N.C.
8	N.C.
9	Stop lights control
10	N.C.
11	N.C.
12	N.C.

(*) from Model Year '97
