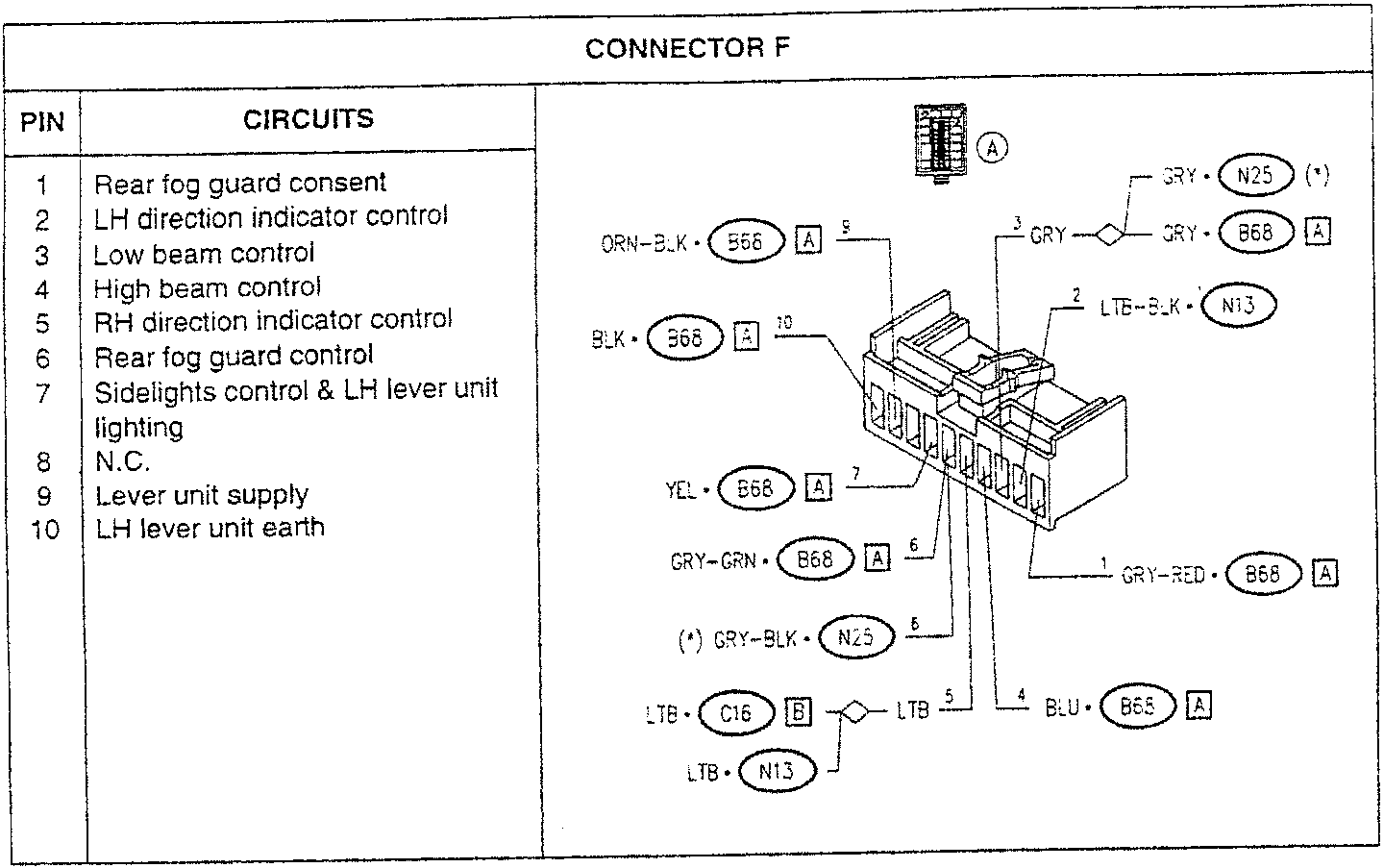

CONNECTOR F

PIN	CIRCUITS
1	Rear fog guard consent
2	LH direction indicator control
3	Low beam control
4	High beam control
5	RH direction indicator control
6	Rear fog guard control
7	Sidelights control & LH lever unit lighting
8	N.C.
9	Lever unit supply
10	LH lever unit earth

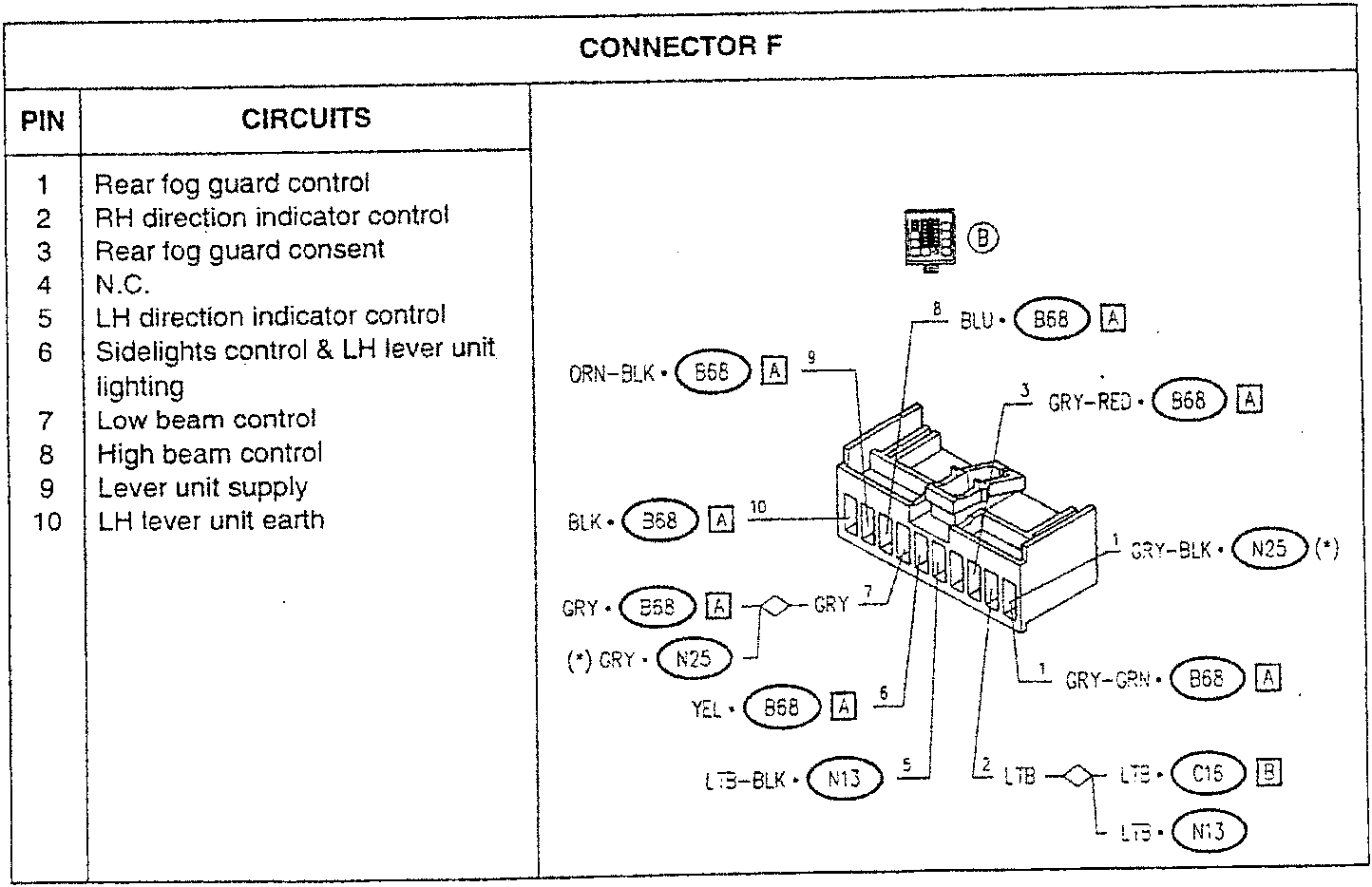

CONNECTOR F

PIN	CIRCUITS
1	Rear fog guard control
2	RH direction indicator control
3	Rear fog guard consent
4	N.C.
5	LH direction indicator control
6	Sidelights control & LH lever unit lighting
7	Low beam control
8	High beam control
9	Lever unit supply
10	LH lever unit earth

(*) from Model Year '97
