145 electrical system diagnosisFusebox supply

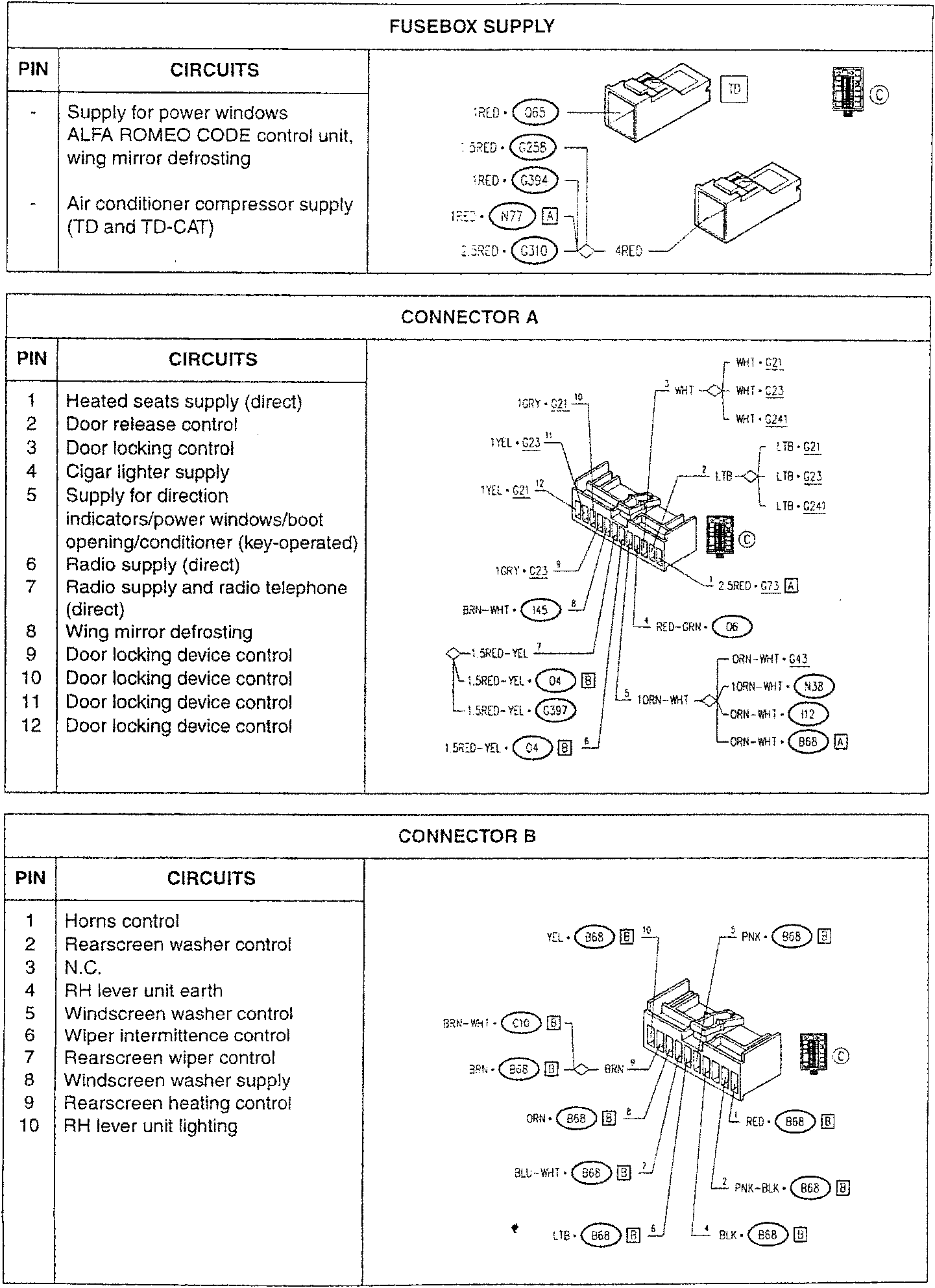

FUSEBOX SUPPLY

PIN	CIRCUITS
-	Supply for power windows ALFA ROMEO CODE control unit, wing mirror defrosting
-	Air conditioner compressor supply (TD and TD-CAT)

CONNECTOR A

PIN	CIRCUITS
1	Heated seats supply (direct)
2	Door release control
3	Door locking control
4	Cigar lighter supply
5	Supply for direction indicators/power windows/boot opening/conditioner (key-operated)
6	Radio supply (direct)
7	Radio supply and radio telephone (direct)
8	Wing mirror defrosting
9	Door locking device control
10	Door locking device control
11	Door locking device control
12	Door locking device control

CONNECTOR B

PIN	CIRCUITS
1	Horns control
2	Rear screen washer control
3	N.C.
4	RH lever unit earth
5	Windscreen washer control
6	Wiper intermittence control
7	Rear screen wiper control
8	Windscreen washer supply
9	Rear screen heating control
10	RH lever unit lighting
