Connector g

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox › Connector g

145 electrical system diagnosisConnector g

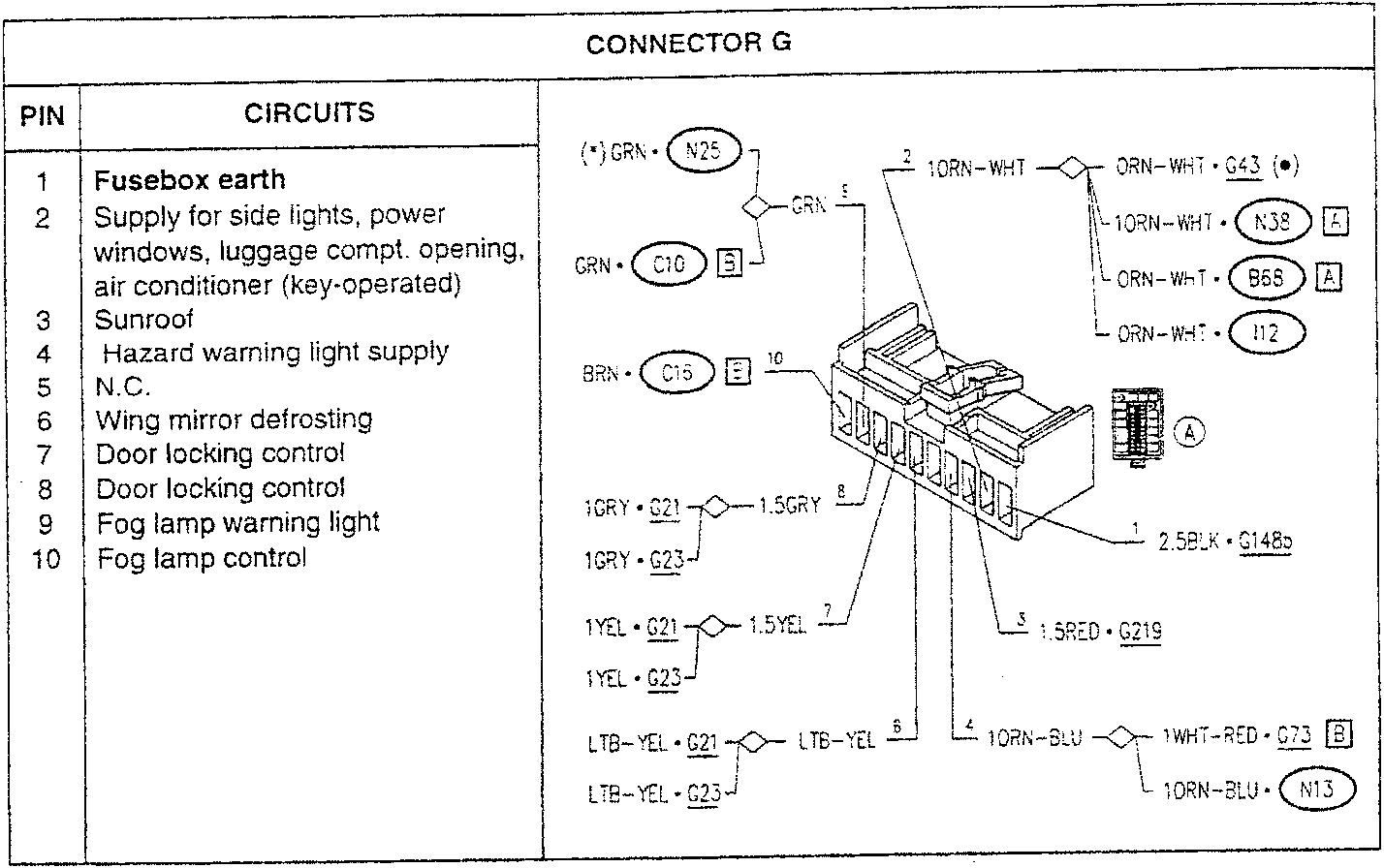

CONNECTOR G

PIN	CIRCUITS
1	Fusebox earth
2	Supply for side lights, power windows, luggage compt. opening, air conditioner (key-operated)
3	Sunroof
4	Hazard warning light supply
5	N.C.
6	Wing mirror defrosting
7	Door locking control
8	Door locking control
9	Fog lamp warning light
10	Fog lamp control

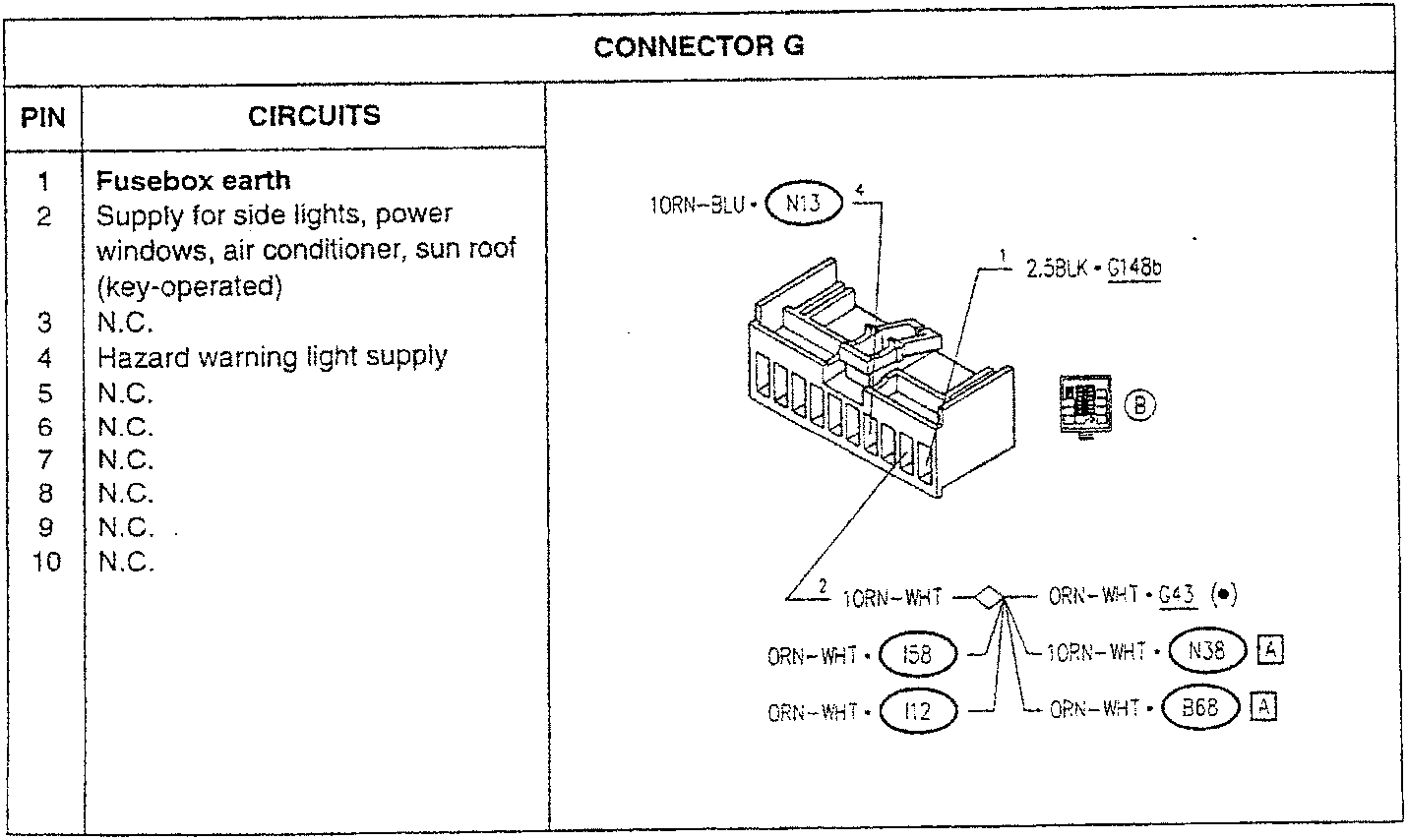

CONNECTOR G

PIN	CIRCUITS
1	Fusebox earth
2	Supply for side lights, power windows, air conditioner, sun roof (key-operated)
3	N.C.
4	Hazard warning light supply
5	N.C.
6	N.C.
7	N.C.
8	N.C.
9	N.C.
10	N.C.

(*) from Model Year '97

(•) only up to chassis no. 4065017
