145 electrical system diagnosisConnector i

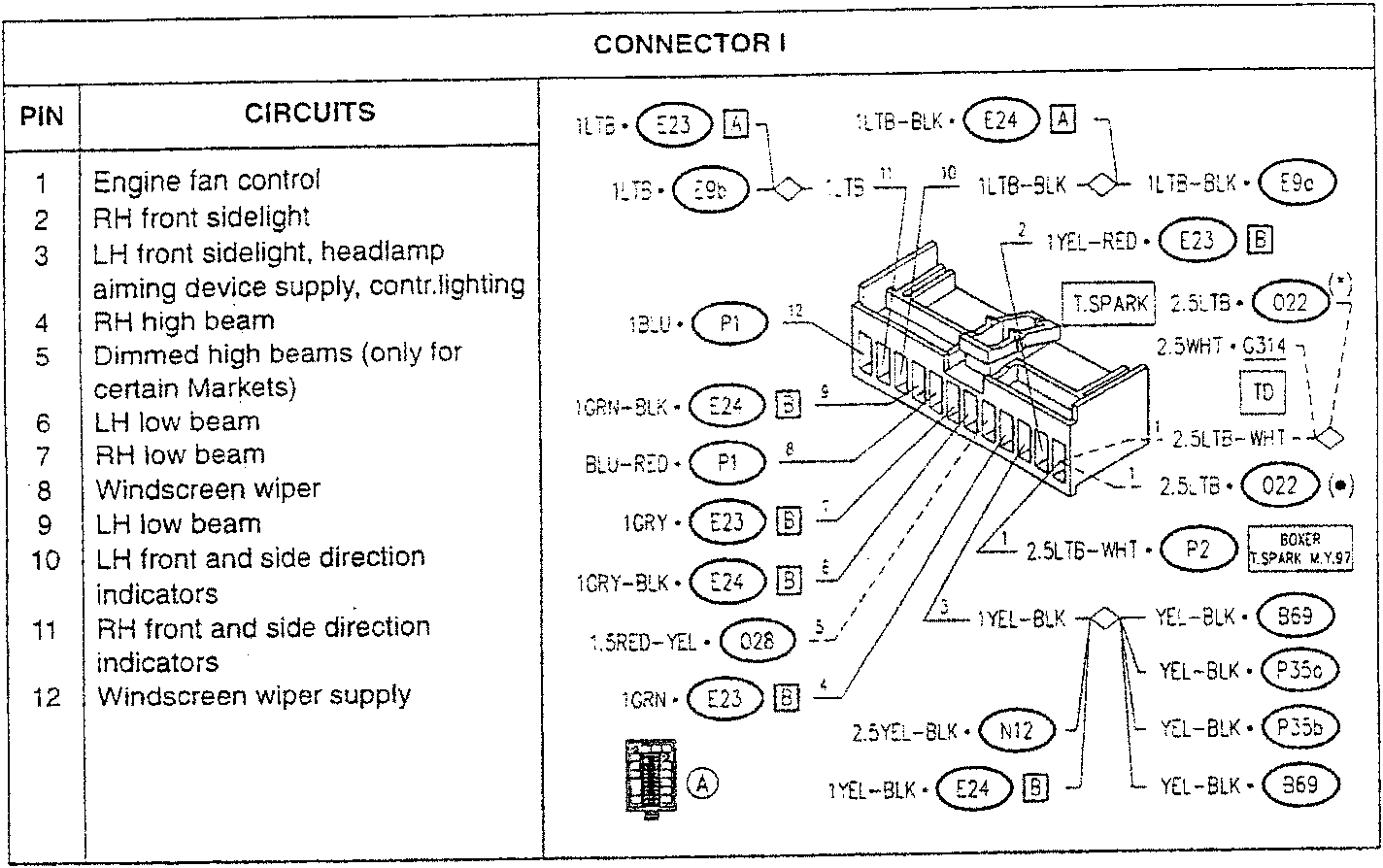

CONNECTOR I
| PIN | CIRCUITS |
|---|---|
| 1 | Engine fan control |
| 2 | RH front sidelight |
| 3 | LH front sidelight, headlamp aiming device supply, contr.lighting |
| 4 | RH high beam |
| 5 | Dimmed high beams (only for certain Markets) |
| 6 | LH low beam |
| 7 | RH low beam |
| 8 | Windscreen wiper |
| 9 | LH low beam |
| 10 | LH front and side direction indicators |
| 11 | RH front and side direction indicators |
| 12 | Windscreen wiper supply |

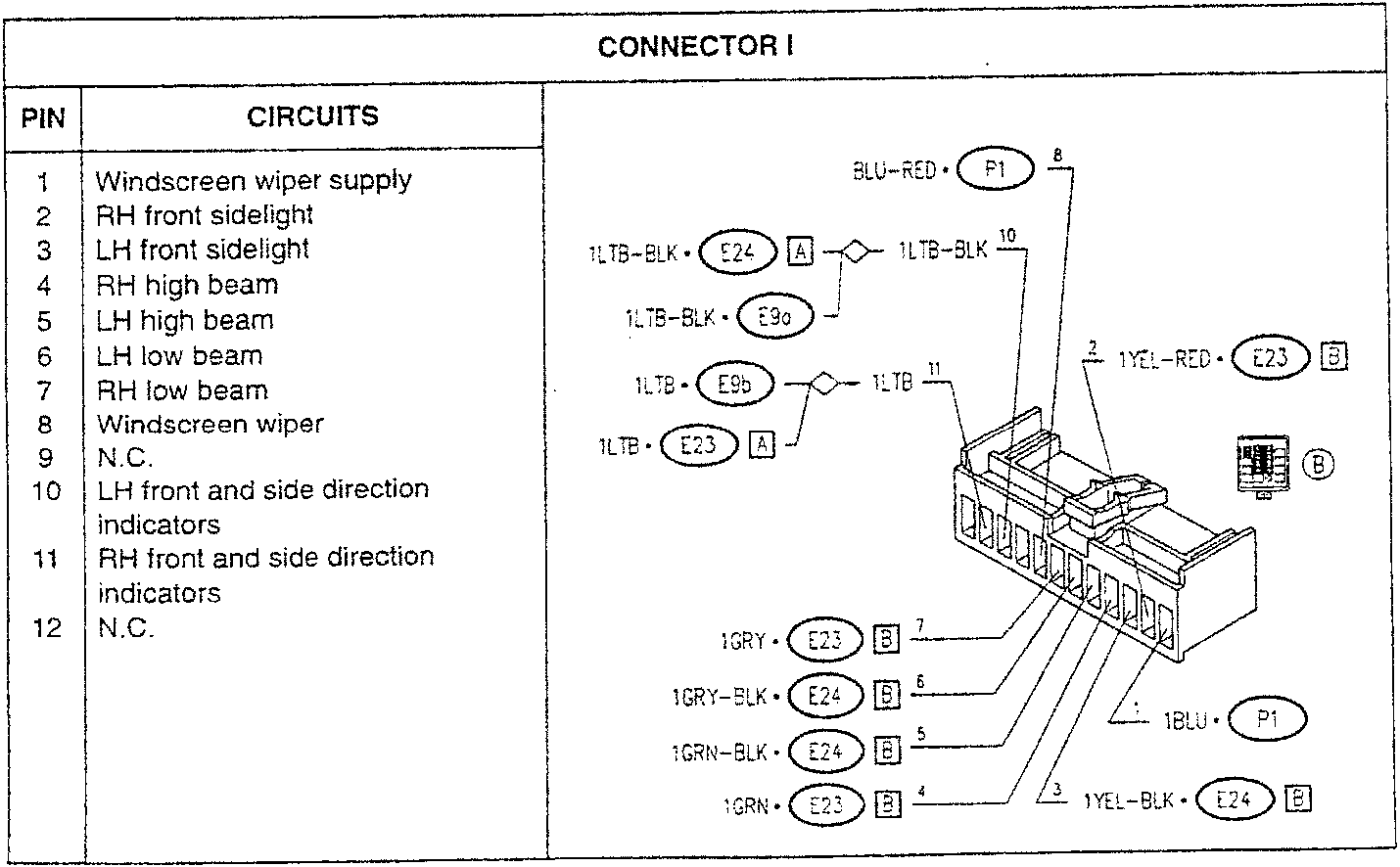

CONNECTOR I
| PIN | CIRCUITS |
|---|---|
| 1 | Windscreen wiper supply |
| 2 | RH front sidelight |
| 3 | LH front sidelight |
| 4 | RH high beam |
| 5 | LH high beam |
| 6 | LH low beam |
| 7 | RH low beam |
| 8 | Windscreen wiper |
| 9 | N.C. |
| 10 | LH front and side direction indicators |
| 11 | RH front and side direction indicators |
| 12 | N.C. |
(•) TD version, from chassis no....
(* also Boxer from chassis no. 4065018
