Connector e

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox › Connector e

145 electrical system diagnosisConnector e

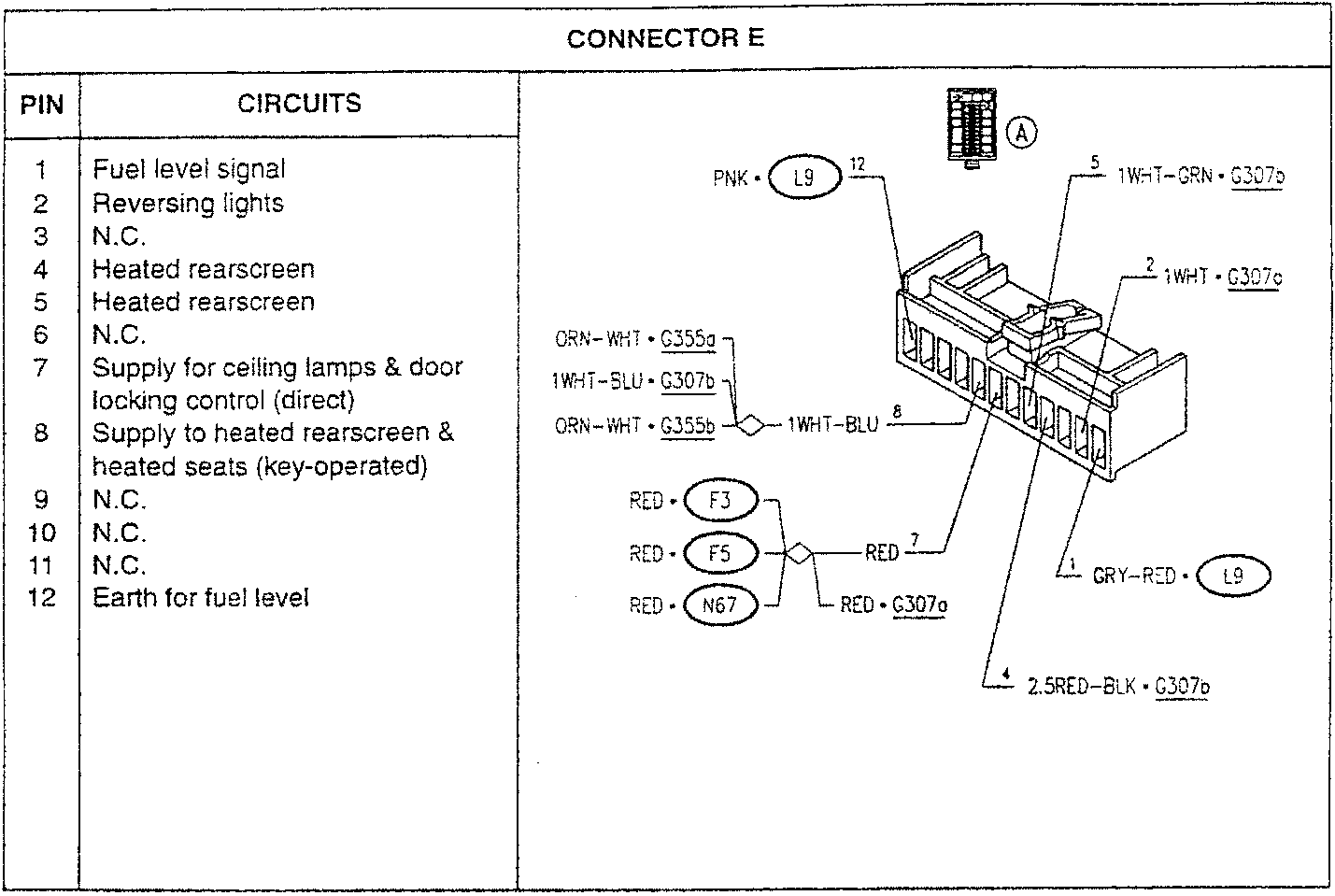

CONNECTOR E

PIN	CIRCUITS
1	Fuel level signal
2	Reversing lights
3	N.C.
4	Heated rearscreen
5	Heated rearscreen
6	N.C.
7	Supply for ceiling lamps & door locking control (direct)
8	Supply to heated rearscreen & heated seats (key-operated)
9	N.C.
10	N.C.
11	N.C.
12	Earth for fuel level

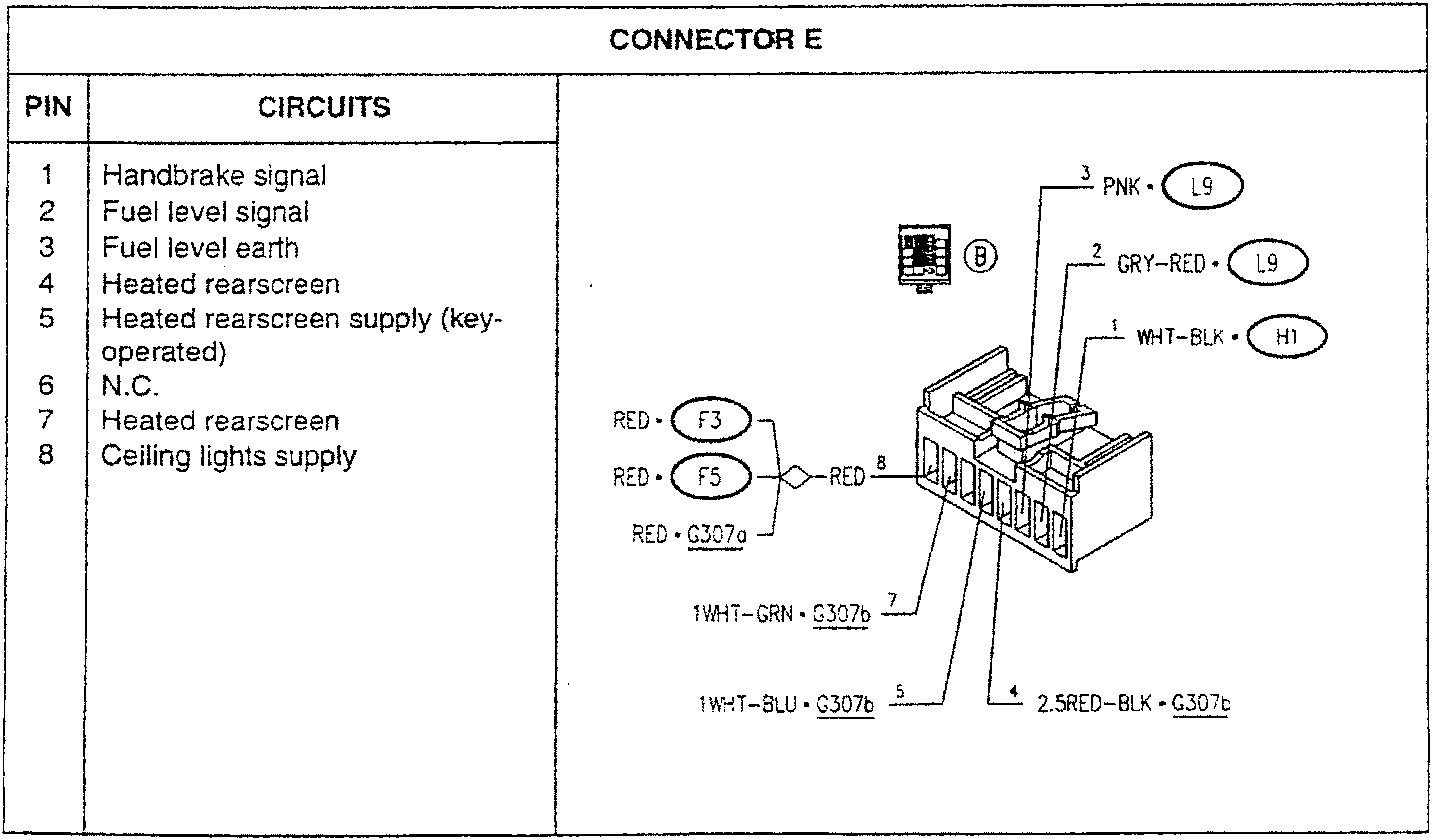

CONNECTOR E

PIN	CIRCUITS
1	Handbrake signal
2	Fuel level signal
3	Fuel level earth
4	Heated rearscreen
5	Heated rearscreen supply (key-operated)
6	N.C.
7	Heated rearscreen
8	Ceiling lights supply
