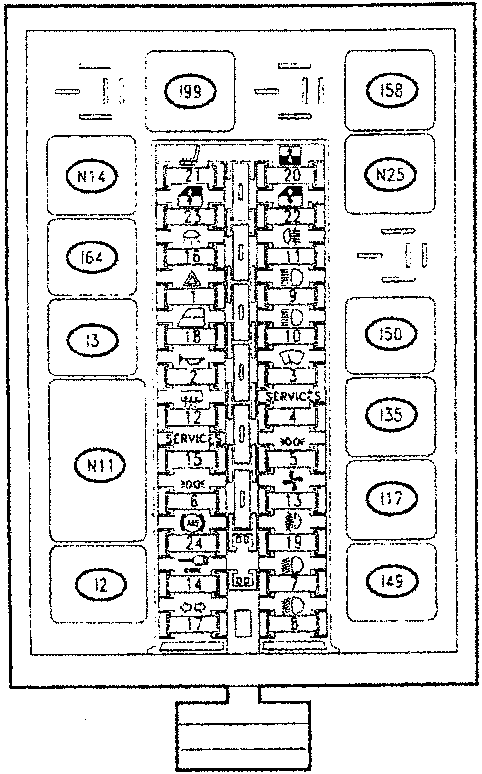

LOCATION OF FUSES AND RELAYS (Box "C")

RELAYS:

• I2 Rearscreen heating relay
• I3 Horn relay
• I17 Fog lamp relay
• I35 Key-operated supply relay
• I49 Low beam headlamp relay
• I50 High beam headlamp relay
• I58 Sunroof relay
• I64 Sidelight relay
• I99 Engine water cooling fan relay
• N11 Door locking control unit
• N14 Windscreen wiper intermittent device
• N25 Rear fog guard control unit

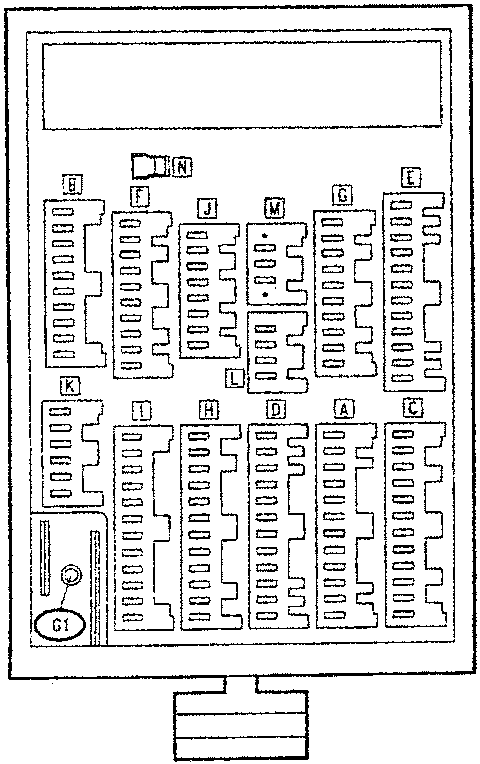

REAR VIEW, CONNECTORS SIDE (Box "C")
