145 electrical system diagnosisConnector e

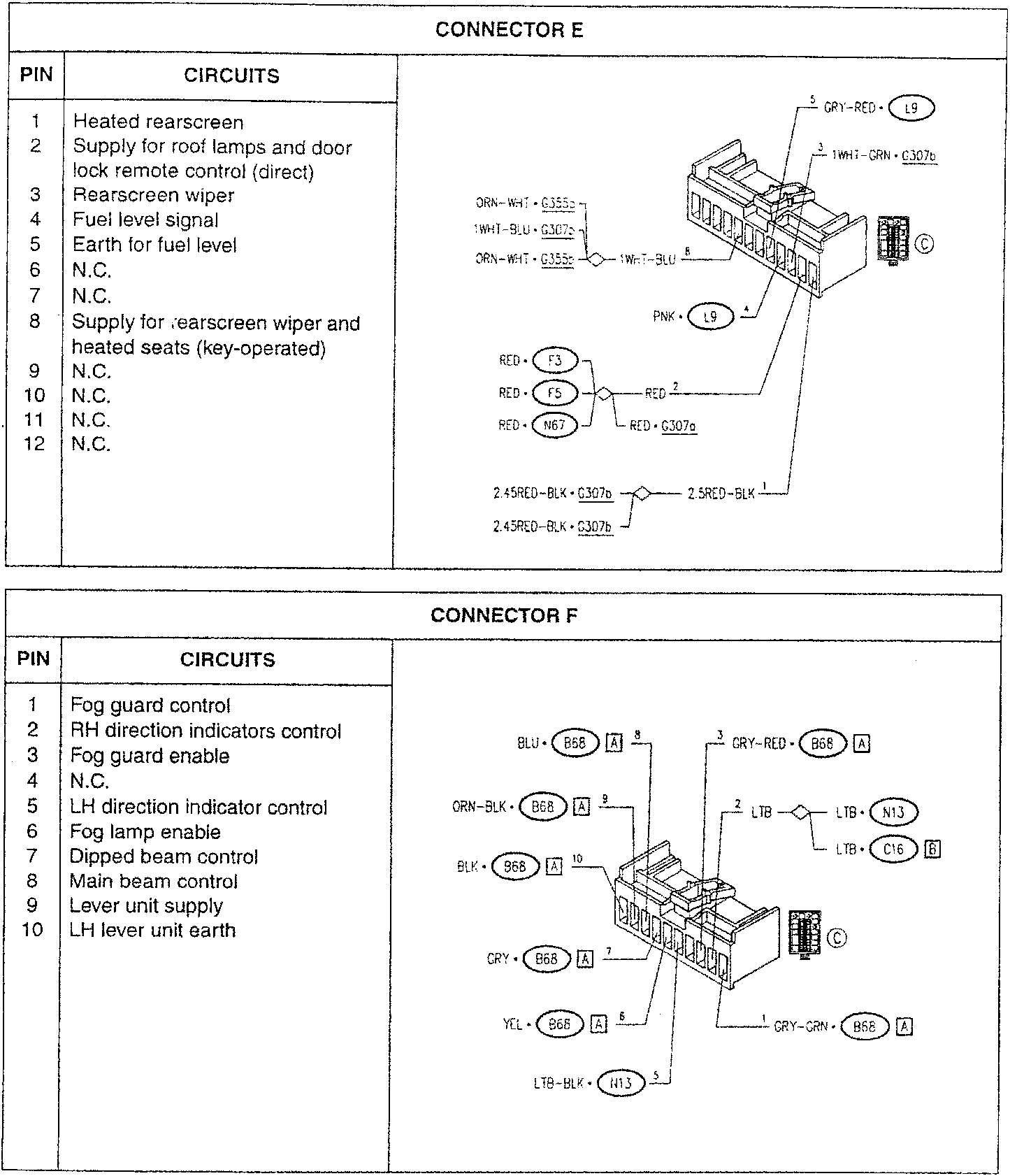

CONNECTOR E

PIN	CIRCUITS
1	Heated rearscreen
2	Supply for roof lamps and door lock remote control (direct)
3	Rearscreen wiper
4	Fuel level signal
5	Earth for fuel level
6	N.C.
7	N.C.
8	Supply for rearscreen wiper and heated seats (key-operated)
9	N.C.
10	N.C.
11	N.C.
12	N.C.

CONNECTOR F

PIN	CIRCUITS
1	Fog guard control
2	RH direction indicators control
3	Fog guard enable
4	N.C.
5	LH direction indicator control
6	Fog lamp enable
7	Dipped beam control
8	Main beam control
9	Lever unit supply
10	LH lever unit earth
