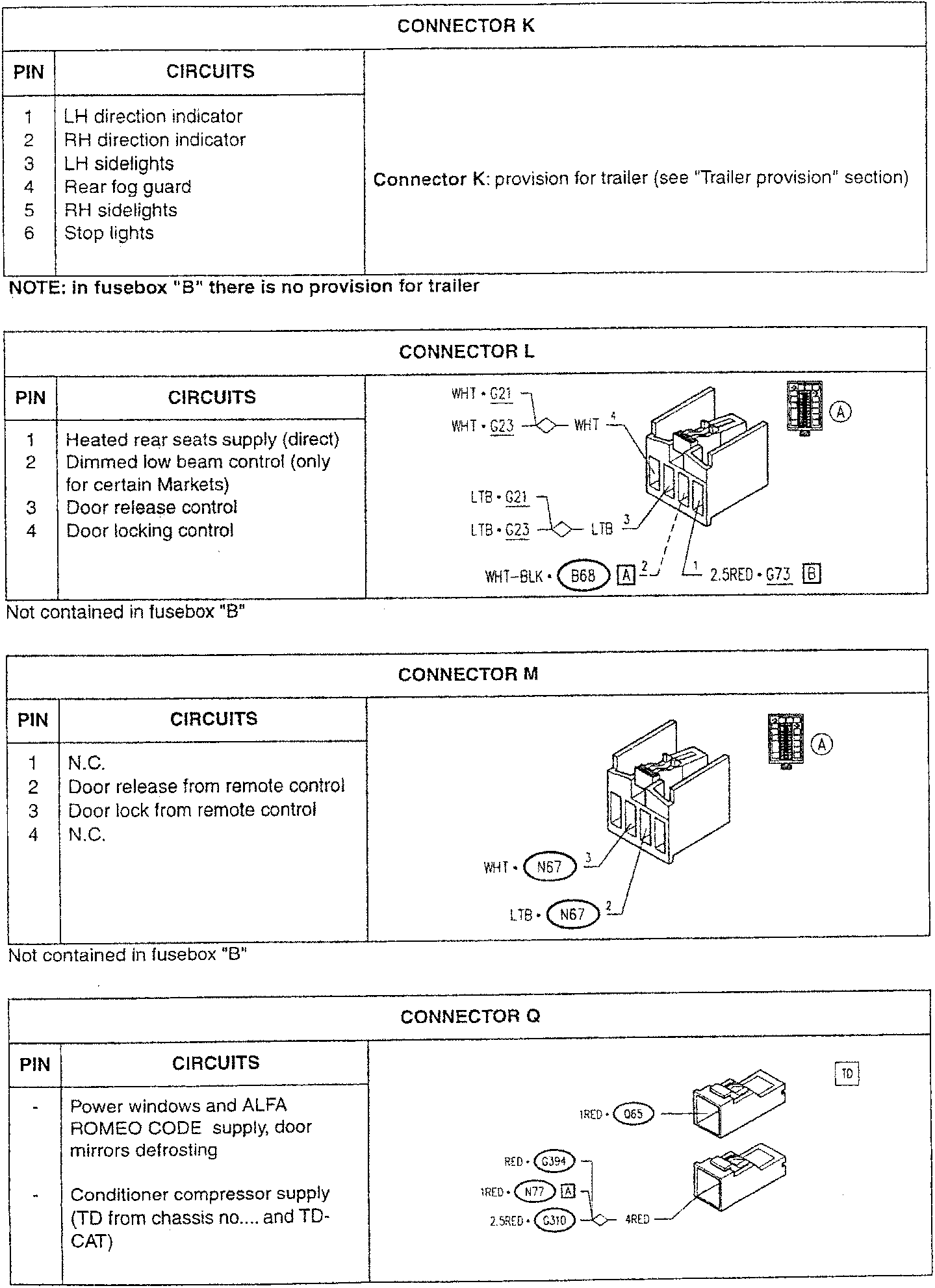

CONNECTOR K

PIN	CIRCUITS
1	LH direction indicator
2	RH direction indicator
3	LH sidelights
4	Rear fog guard
5	RH sidelights
6	Stop lights

Connector K: provision for trailer (see "Trailer provision" section)

NOTE: in fusebox "B" there is no provision for trailer

CONNECTOR L

PIN	CIRCUITS
1	Heated rear seats supply (direct)
2	Dimmed low beam control (only for certain Markets)
3	Door release control
4	Door locking control

Not contained in fusebox "B"

CONNECTOR M

PIN	CIRCUITS
1	N.C.
2	Door release from remote control
3	Door lock from remote control
4	N.C.

Not contained in fusebox "B"

CONNECTOR Q

PIN	CIRCUITS
-	Power windows and ALFA ROMEO CODE supply, door mirrors defrosting
-	Conditioner compressor supply (TD from chassis no.... and TD-CAT)
