Connector d

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox › Connector d

145 electrical system diagnosisConnector d

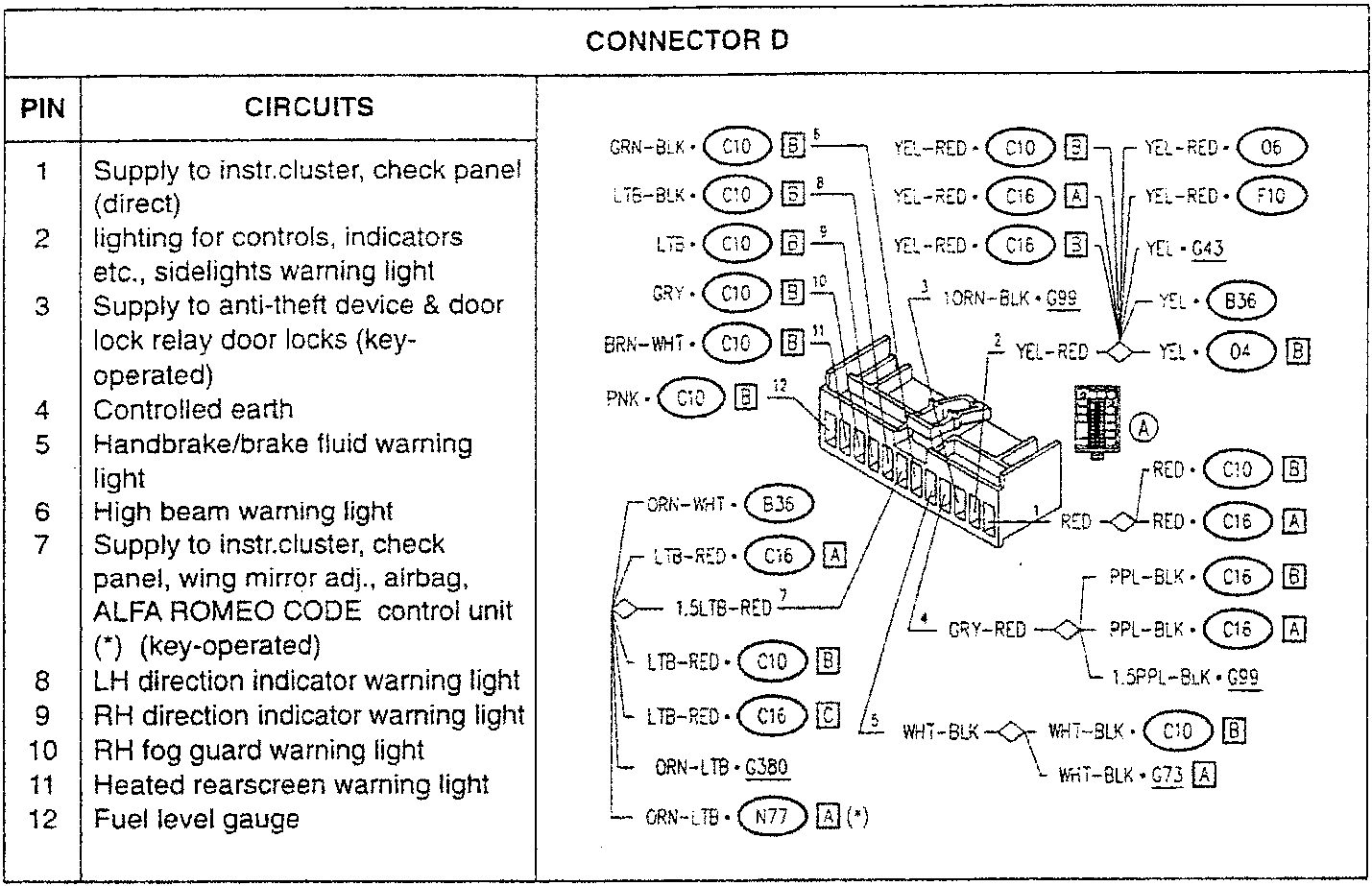

CONNECTOR D

PIN	CIRCUITS
1	Supply to instr.cluster, check panel (direct)
2	lighting for controls, indicators etc., sidelights warning light
3	Supply to anti-theft device & door lock relay door locks (key-operated)
4	Controlled earth
5	Handbrake/brake fluid warning light
6	High beam warning light
7	Supply to instr.cluster, check panel, wing mirror adj., airbag, ALFA ROMEO CODE control unit (*) (key-operated)
8	LH direction indicator warning light
9	RH direction indicator warning light
10	RH fog guard warning light
11	Heated rearscreen warning light
12	Fuel level gauge

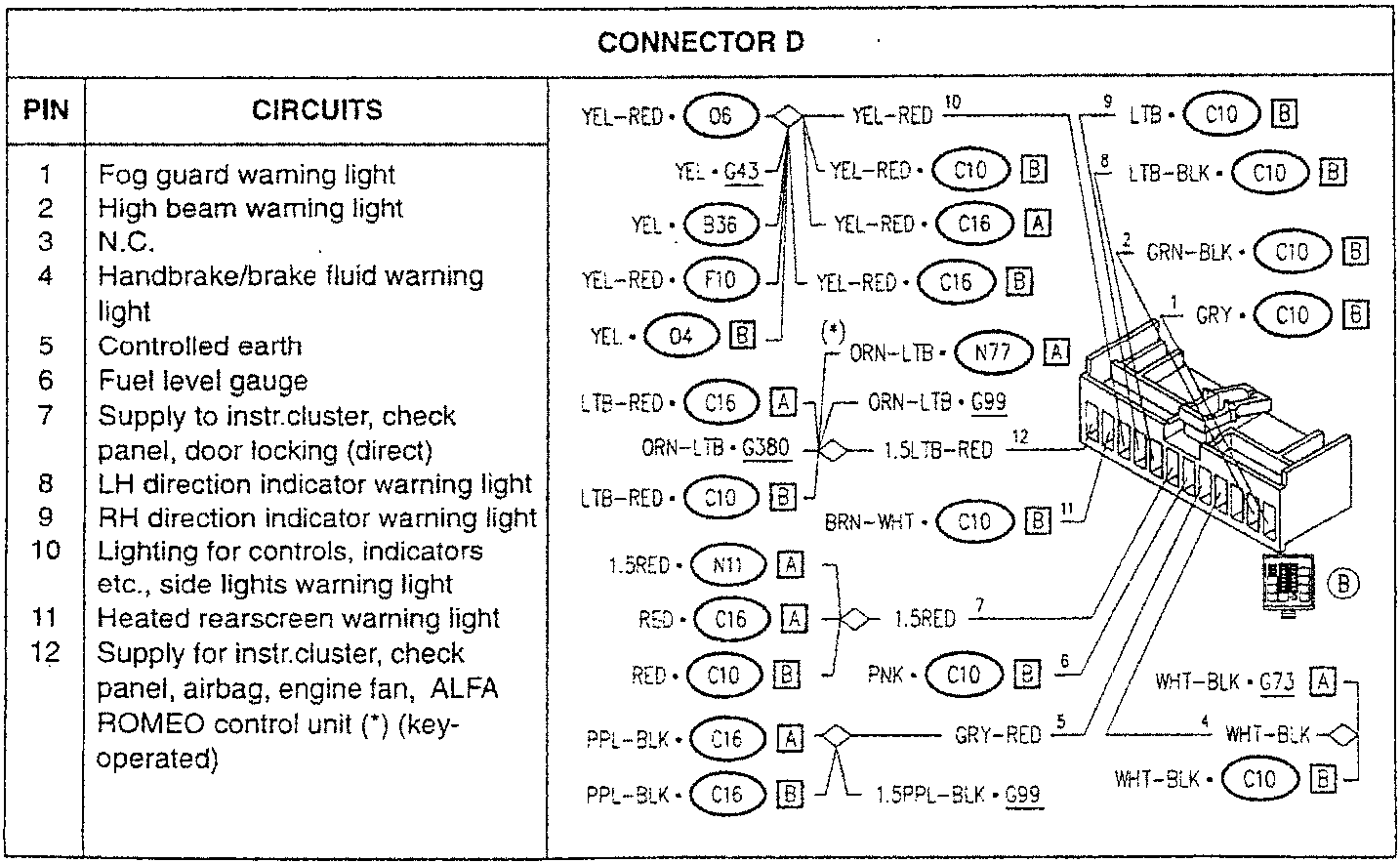

CONNECTOR D

PIN	CIRCUITS
1	Fog guard warning light
2	High beam warning light
3	N.C.
4	Handbrake/brake fluid warning light
5	Controlled earth
6	Fuel level gauge
7	Supply to instr.cluster, check panel, door locking (direct)
8	LH direction indicator warning light
9	RH direction indicator warning light
10	Lighting for controls, indicators etc., side lights warning light
11	Heated rearscreen warning light
12	Supply for instr.cluster, check panel, airbag, engine fan, ALFA ROMEO control unit (*) (key-operated)

(*) only up to M.Y. '97
