Connector b (page 2 of 2)

Make

Alfa Romeo

Model

145/146 Electrical System Diagnosis Manual, Volume 3

Year

1994–2001

Section

Fusebox

145 electrical system diagnosisConnector b · page 2 of 2

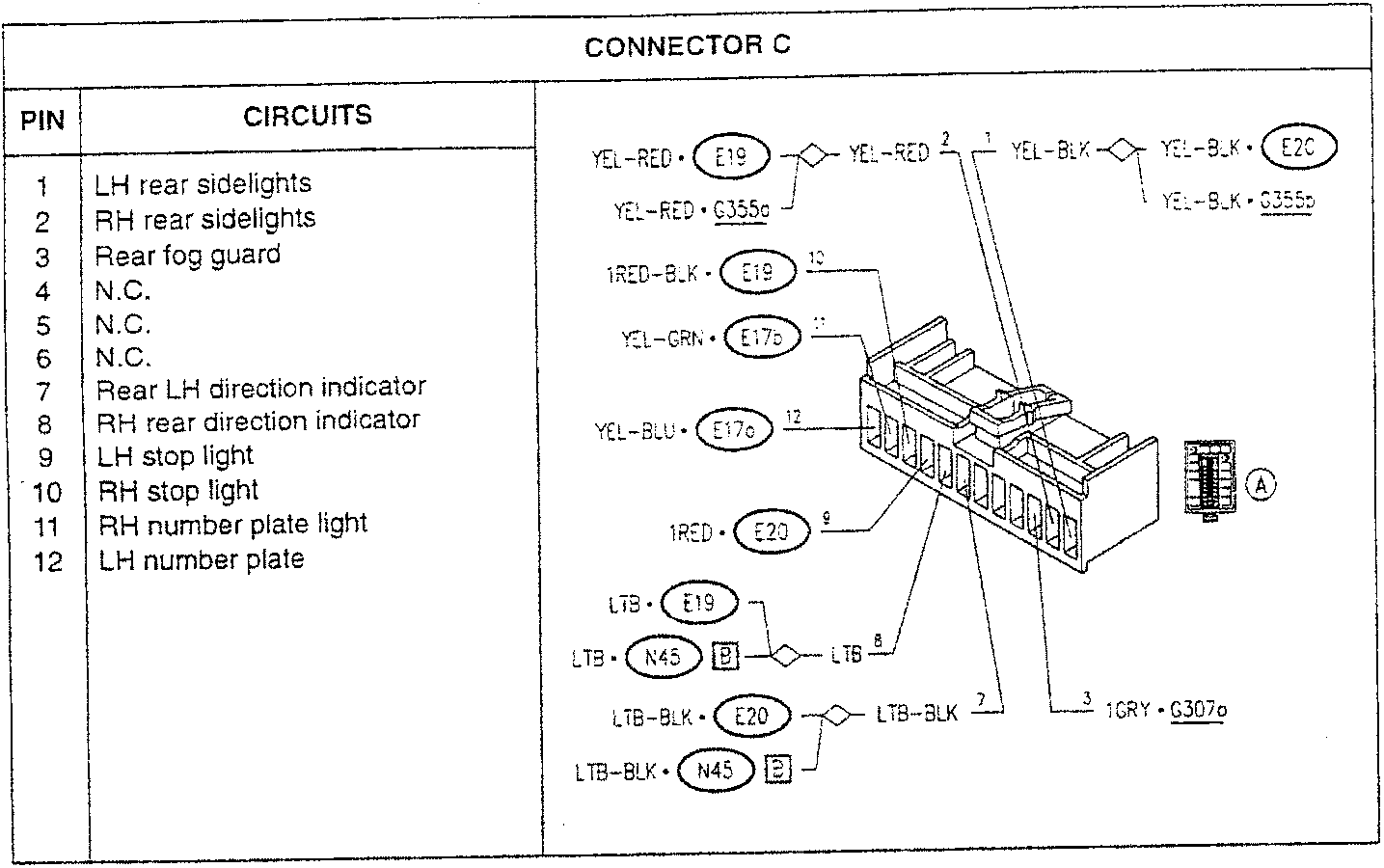

PIN	CIRCUITS
1	LH rear sidelights
2	RH rear sidelights
3	Rear fog guard
4	N.C.
5	N.C.
6	N.C.
7	Rear LH direction indicator
8	RH rear direction indicator
9	LH stop light
10	RH stop light
11	RH number plate light
12	LH number plate

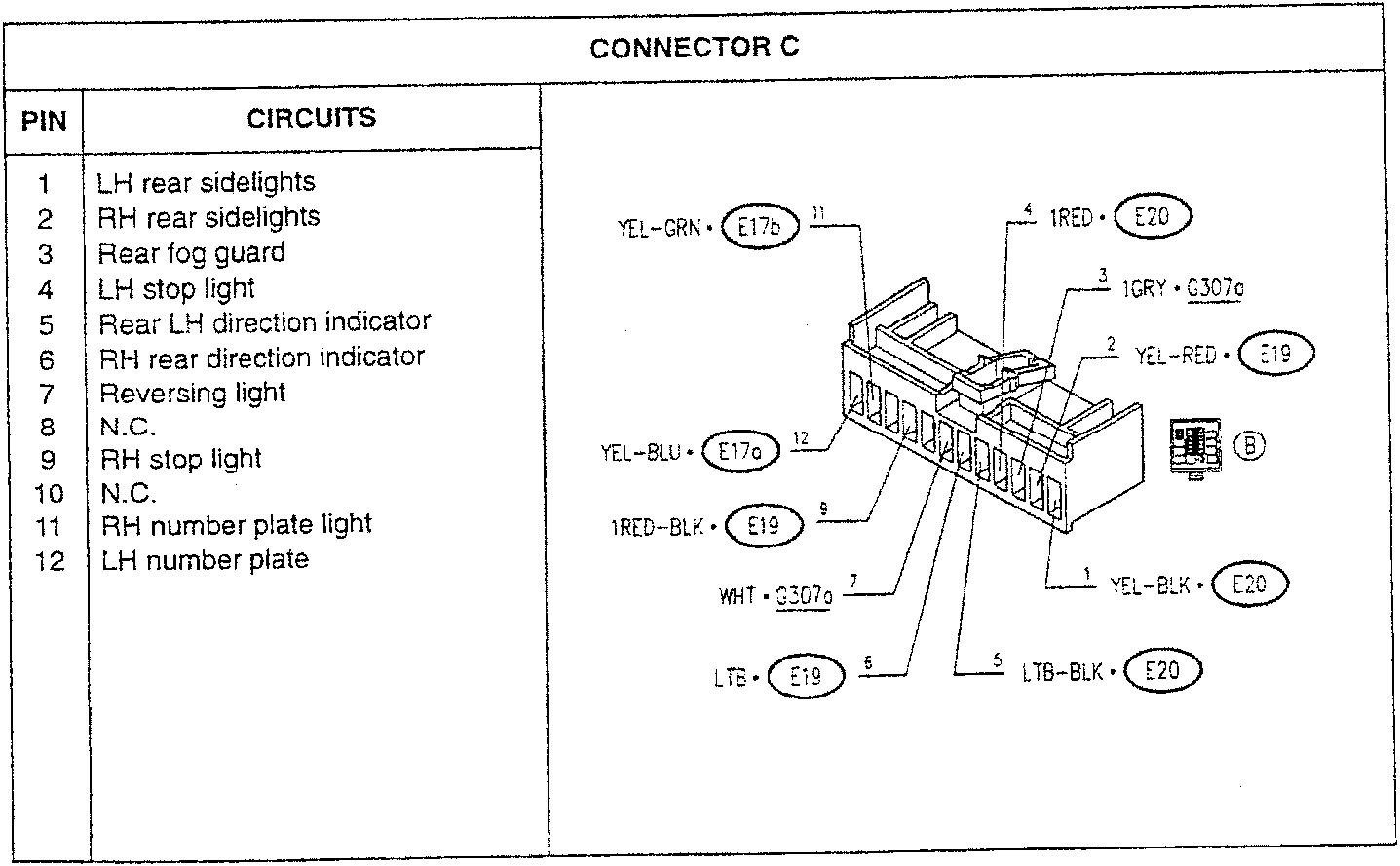

PIN	CIRCUITS
1	LH rear sidelights
2	RH rear sidelights
3	Rear fog guard
4	LH stop light
5	Rear LH direction indicator
6	RH rear direction indicator
7	Reversing light
8	N.C.
9	RH stop light
10	N.C.
11	RH number plate light
12	LH number plate
