145 electrical system diagnosisConnector g

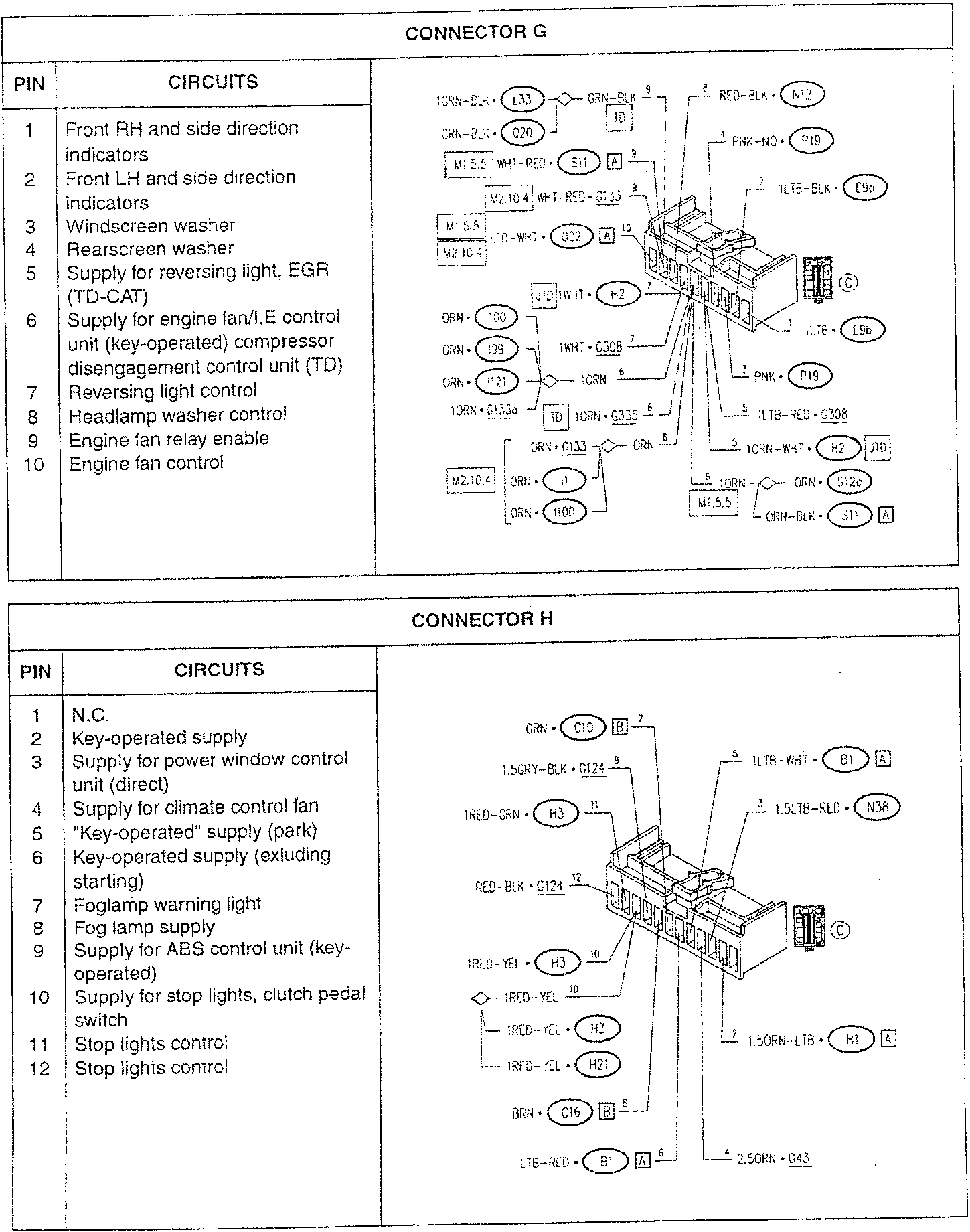

CONNECTOR G

PIN	CIRCUITS
1	Front RH and side direction indicators
2	Front LH and side direction indicators
3	Windscreen washer
4	Rear screen washer
5	Supply for reversing light, EGR (TD-CAT)
6	Supply for engine fan/I.E control unit (key-operated) compressor disengagement control unit (TD)
7	Reversing light control
8	Headlamp washer control
9	Engine fan relay enable
10	Engine fan control

CONNECTOR H

PIN	CIRCUITS
1	N.C.
2	Key-operated supply
3	Supply for power window control unit (direct)
4	Supply for climate control fan
5	"Key-operated" supply (park)
6	Key-operated supply (excluding starting)
7	Foglamp warning light
8	Fog lamp supply
9	Supply for ABS control unit (key-operated)
10	Supply for stop lights, clutch pedal switch
11	Stop lights control
12	Stop lights control
