Anti-lock braking system (A.B.S.) › Checking the gap
BrakesChecking the gap

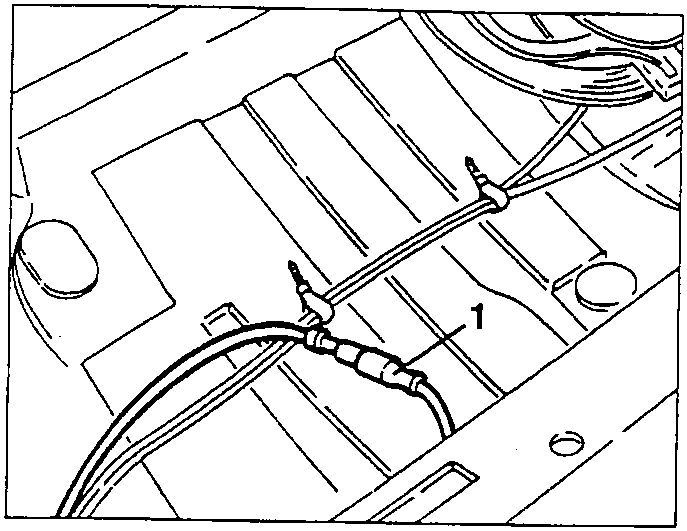

  1. Tilt forward the rear seat cushion, disconnect the electrical connection of the inductive sensor and remove it.
Diagram showing the inductive sensor and its electrical connection under the rear seat cushion.

When refitting grease the seat of the inductive sensor with the specified grease.

Checking the gap

  • Using a thickness gauge, check the gap between the inductive sensor and the corresponding phonic wheel.
Front inductive sensors gap 0.3 ÷ 1.05 mm
Rear inductivei sensors gap 0.2 ÷ 1.15 mm

CAUTION: The gap is not adjustable as shims for this purpose are not supplied. Check that the sensor and the teeth of the phonic wheel are intactore if the gap is not within the specified tolerance.
