Anti-lock braking system (A.B.S.) › Front inductive sensors
BrakesFront inductive sensors

FRONT INDUCTIVE SENSORS

DISJOINING/ RE-JOINING

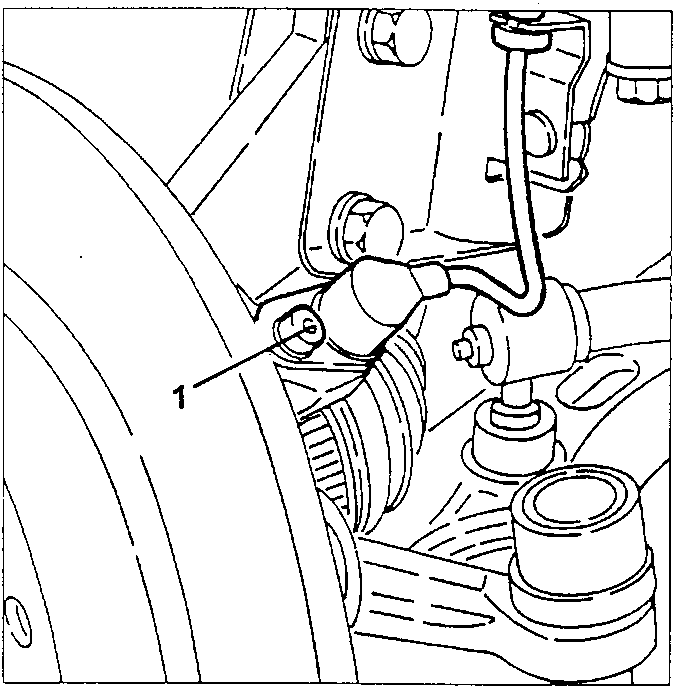

  1. Unscrew the clamping screw of the ABS inductive sensor to the wheel post.
Front wheel post with the ABS inductive sensor and its clamping screw marked 1

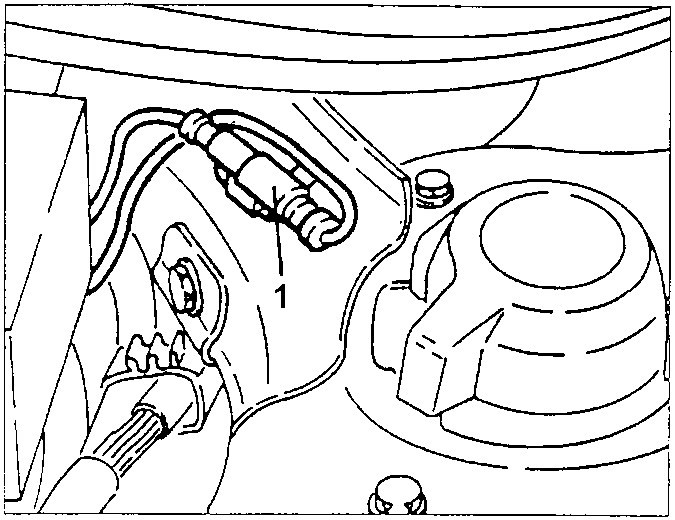

  1. Disconnect the electrical connection located in proximity of the shock absorber dome and remove the sensor and the wiring after loosening the clamps.
Shock absorber dome area with the sensor electrical connection marked 1

When re-joining, grease the sensor seat with the prescribed grease.

REAR INDUCTIVE SENSORS

DISJOINING/RE-JOINING

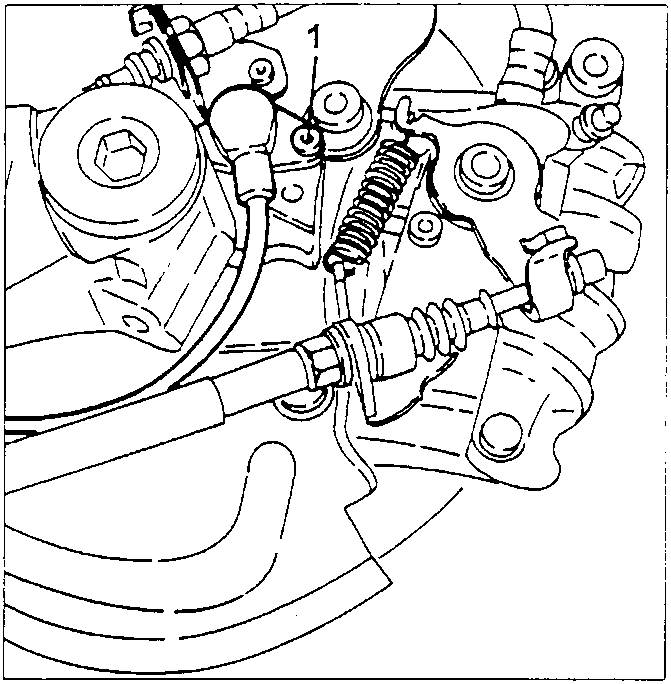

  1. Unscrew the clamping screw of the inductive sensor to the wheel hub.
Rear wheel hub with the inductive sensor clamping screw marked 1

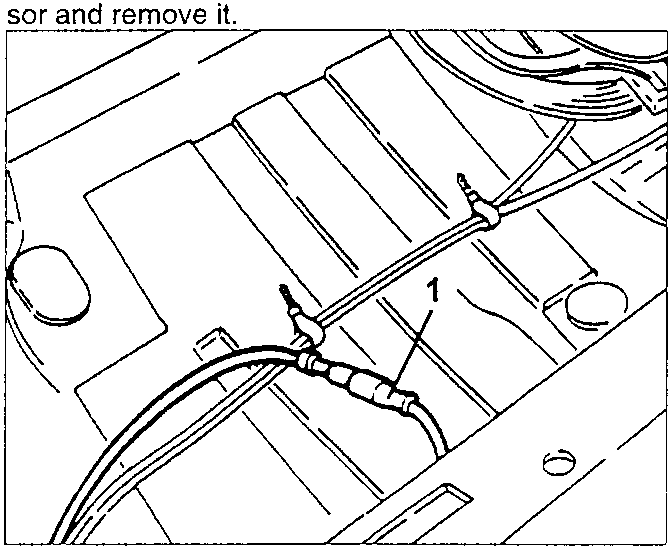

  1. Turn the cushion of the back seat over, disconnect the electrical connection of the inductive sensor and remove it.
Floor under the rear seat showing the inductive sensor electrical connection marked 1

When re-joining, grease the sensor seat with the prescribed grease.

ENTREFER CHECKING

  • Using a thickness gauge, estimate the entrefer value between the inductive sensor and the corresponding phonic wheel.
Front inductive entrefer sensors0.3 ÷ 1.05 mm
Rear inductive entrefer sensors0.2 ÷ 1.15 mm

WARNING: The entrefer is not adjustable as compatible thickness is not provided. Check the integrity of the sensor and of the teeth of the phonic wheel in case of a value besides the prescribed tolerance.
