FRONT ACTIVE SENSORS

DISCONNECTION/RE-CONNECTION

  1. Unscrew the clamping screw of the active ABS sensor to the wheel riser.

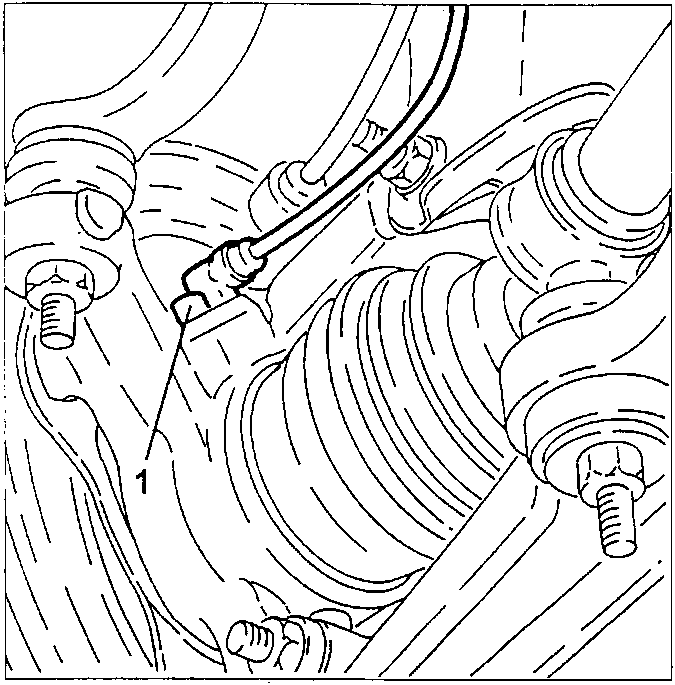

Front wheel riser with the active ABS sensor clamping screw marked 1
  1. Diconnect the electrical connection close to the shock absorber dome and remove the sensor together with the wiring after having loosened the clamps.

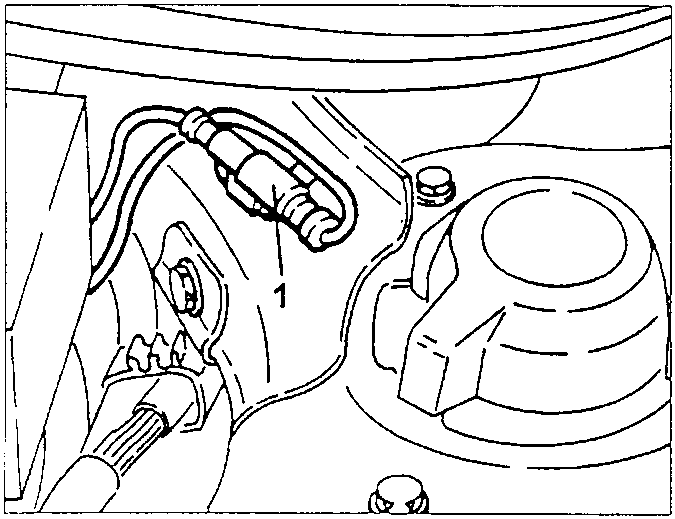

Shock absorber dome area with the sensor electrical connection marked 1

When re-connecting, grease the seat of the active sensor with the prescribed grease.

REAR ACTIVE SENSORS

DISCONNECTION/RE-CONNECTION

  1. Unscrew the clamping screw of the active sensor to the wheel's hub.

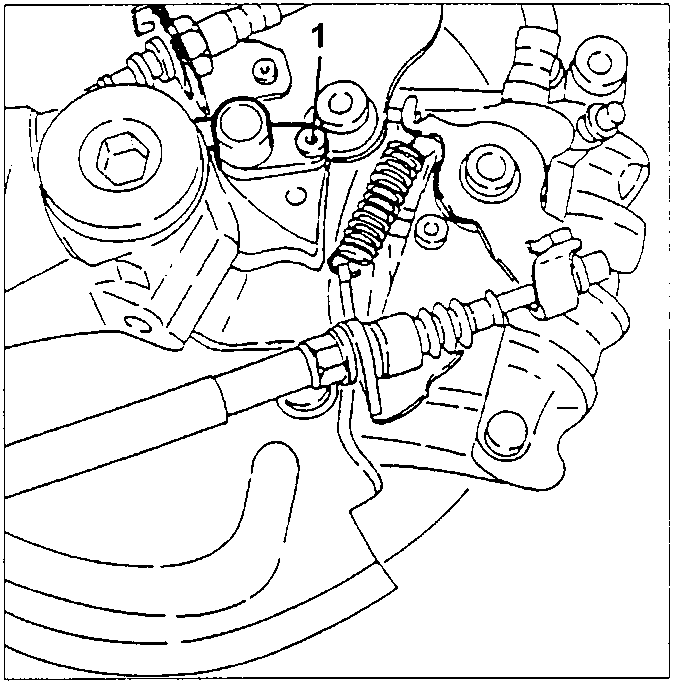

Rear wheel hub with the active sensor clamping screw marked 1
  1. Turn the back seat cushion forwards over, disconnect the electrical connection of the active sensor and remove it.

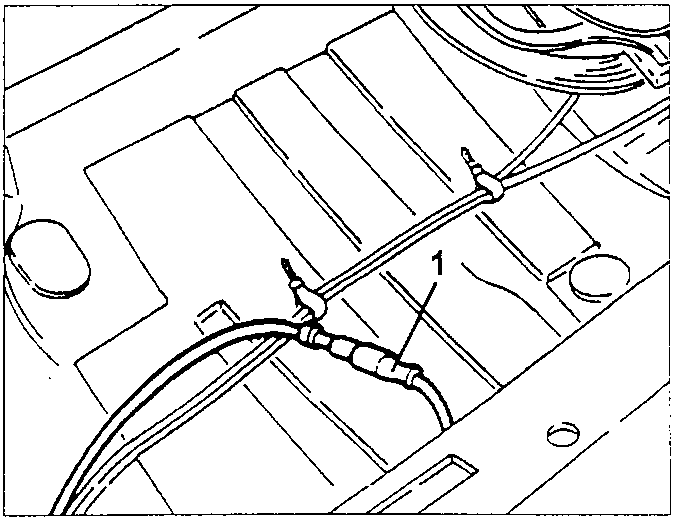

Floor under the rear seat showing the active sensor electrical connection marked 1

When re-connecting, grease the seat of the active sensor with the prescribed grease.
