Hydraulic aggregate

HYDRAULIC AGGREGATE

T. Spark 16V Engine

REMOVING/REFITTING

• Remove the battery.
• Remove the relays from the battery support and set them to one side with their wirings to prevent them from hindering the subsequent operations.

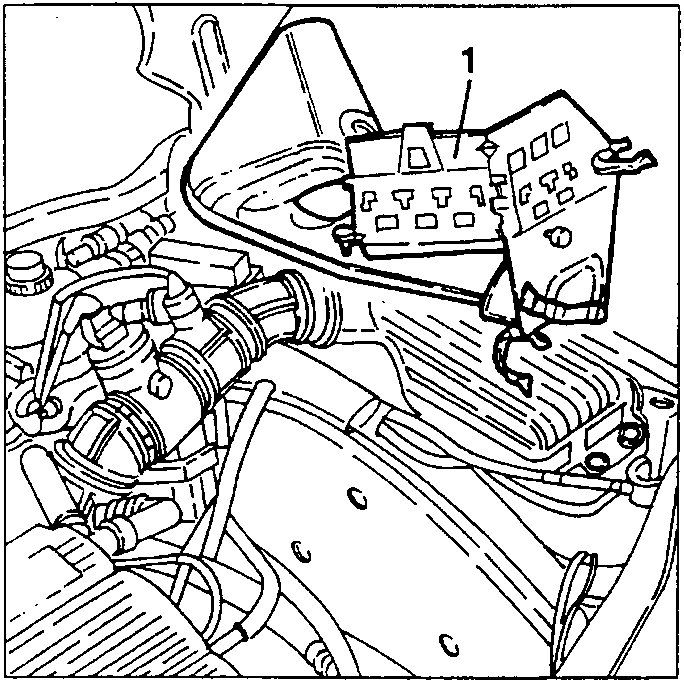

1. Slacken the fastening screws, then remove the battery support after removing the rear cable support from it.

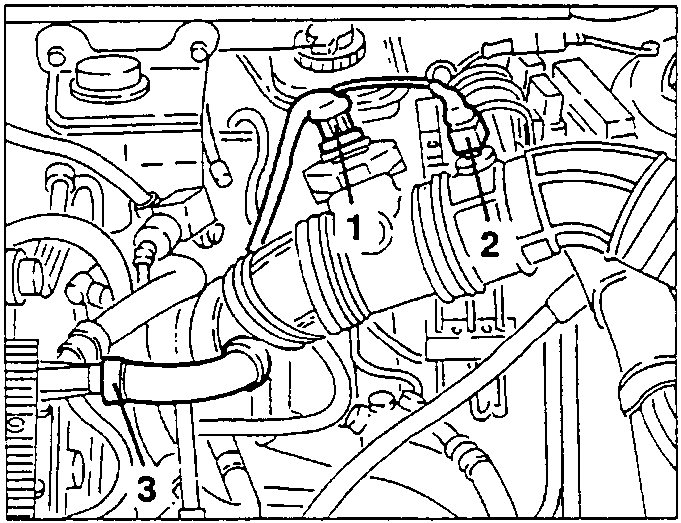

1. Disconnect the electrical connection from the air-flow meter.
2. Disconnect the electrical connection from the intake air temperature sensor (NTC).
3. Slacken the fastening clamp and disconnect the oil vapour recirculation pipe from the cylinder head.

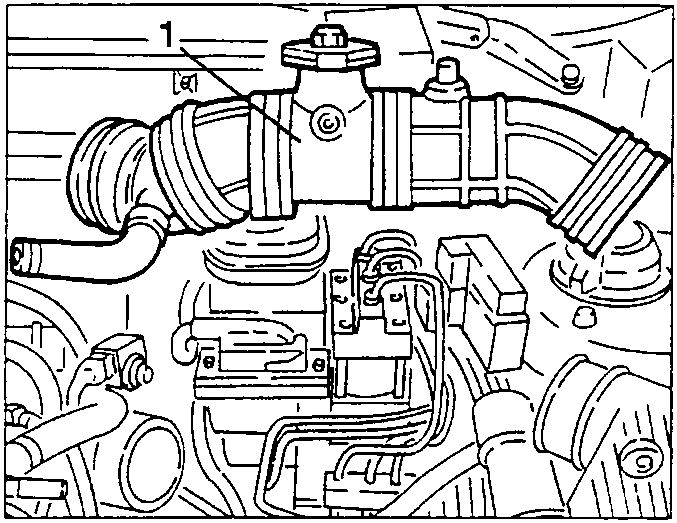

1. Slacken the fastening clamps and remove the corrugated sleeve complete.

• Move aside the fusebox at the side of the brake-clutch fluid reservoir to prevent it from hindering subsequent operations.
• Remove the brake-clutch fluid reservoir (see specific paragraph).

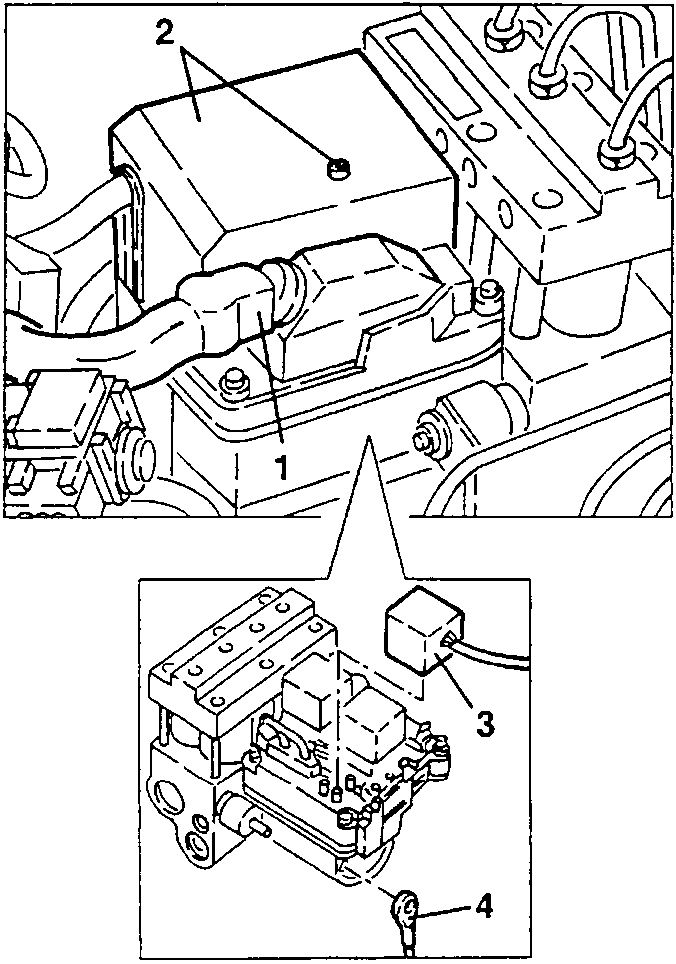

1. Disconnect the electrical connection of the A.B.S. control unit.
2. Slacken the fastening screw and remove the control unit cover.
3. Disconnect the four pin electrical connection from the control unit.
4. Disconnect the earth cable.
