BrakesDisassembly/re-assembly

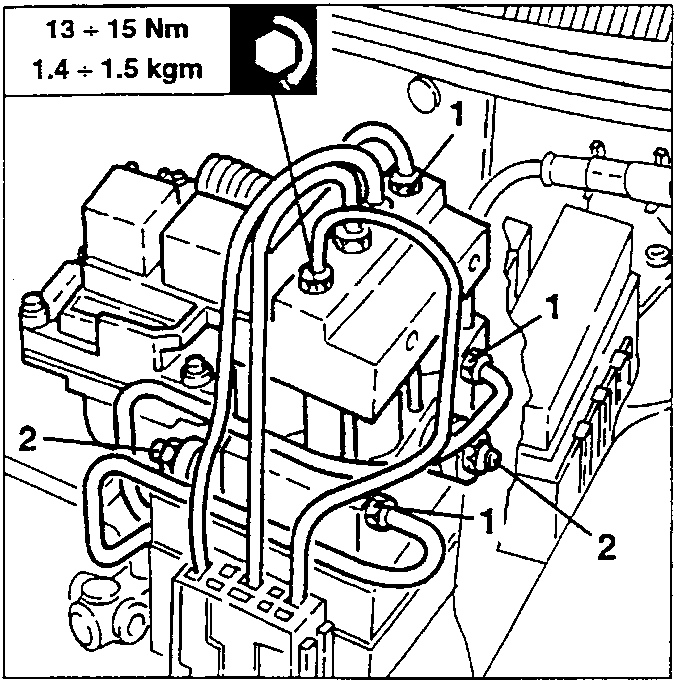

  1. Disconnect the fittings of the pipes of the hydraulic aggregate.
  2. Slacken the three nuts fastening the flexible supports of the hydraulic aggregate, then remove it.
Hydraulic aggregate with pipes and nuts labeled 1 and 2, torque specification F1 13 + 15 Nm 1.4 + 1.5 kgm shown in a box

13 ÷ 15 Nm
1.4 ÷ 1.5 kgm

When refitting relieve the air from the braking system (see specific paragraph).

DISASSEMBLY/RE-ASSEMBLY

Proceed as described for Boxer engines.

FRONT INDUCTIVE SENSORS

REMOVING/REFITTING

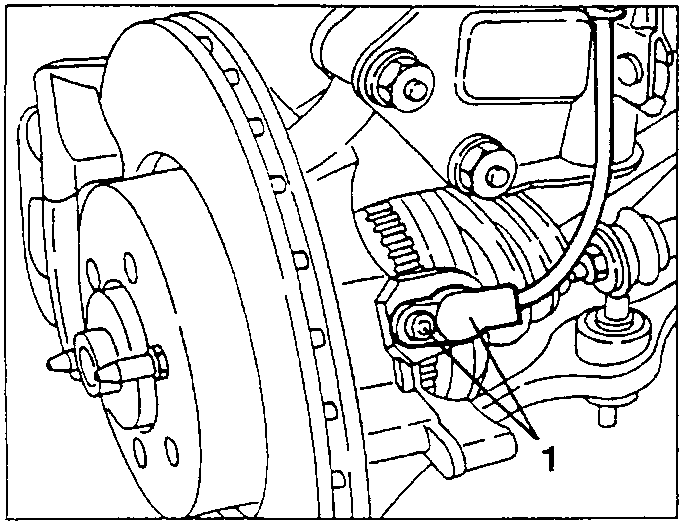

  1. Slacken the screw fastening the A.B.S. inductive sensor from the wheel upright.
Inductive sensor attached to wheel upright with screw labeled 1

REAR INDUCTIVE SENSORS

REMOVING/REFITTING

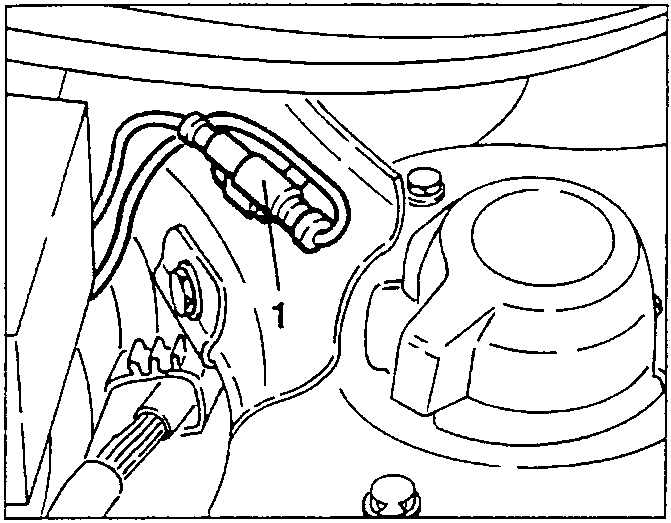

  1. Disconnect the electrical connection near the shock absorber dome and remove the inductive sensor together with the wiring, after releasing it from the fasteners.
Electrical connection near shock absorber dome with inductive sensor labeled 1

When refitting grease the seat of the inductive sensor with the specified grease.

REMOVING/REFITTING

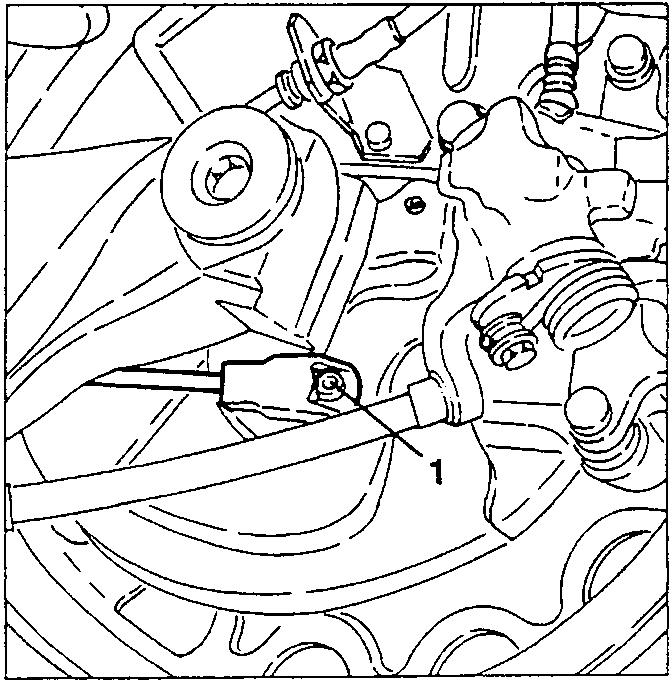

  1. Slacken the screw fastening the inductive sensor to the brake disk connection.
Screw fastening inductive sensor to brake disk connection labeled 1
