BOOT OPENING - Wiring diagram

BOSE system, Electric sunroof

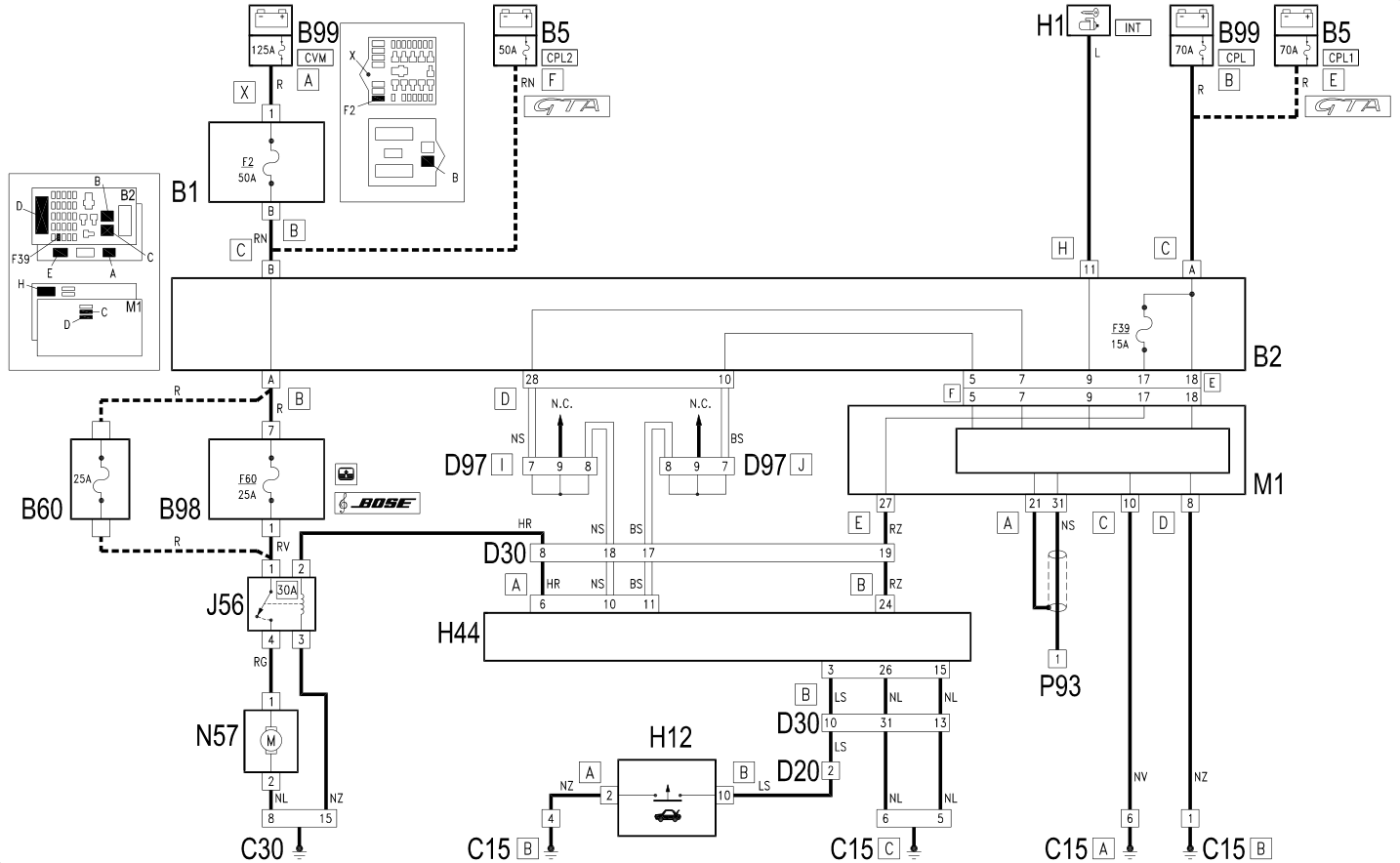

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit
B1	Engine compartment junction unit	5505A
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B60	Boot opening fuse
B98	Supplementary fuse box
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
D20	/Rear dashboard coupling
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D97	Short circuiting coupling
H1	Ignition switch	5520A
H12	Hazard warning lights, fog lights, rear fog lamps control	5505A
H44	Electric window controls on front door	7005M
J56	Boot opening relay
M1	Body computer	5505A
N57	Boot lock gearmotor	7015B
P93	Receiver aerial for alarm and central locking
