HORNS - Wiring diagram

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Electrically activated devices › HORNS - Wiring diagram

Wiring diagrams and electrical functionsHORNS - Wiring diagram

HORNS - Wiring diagram

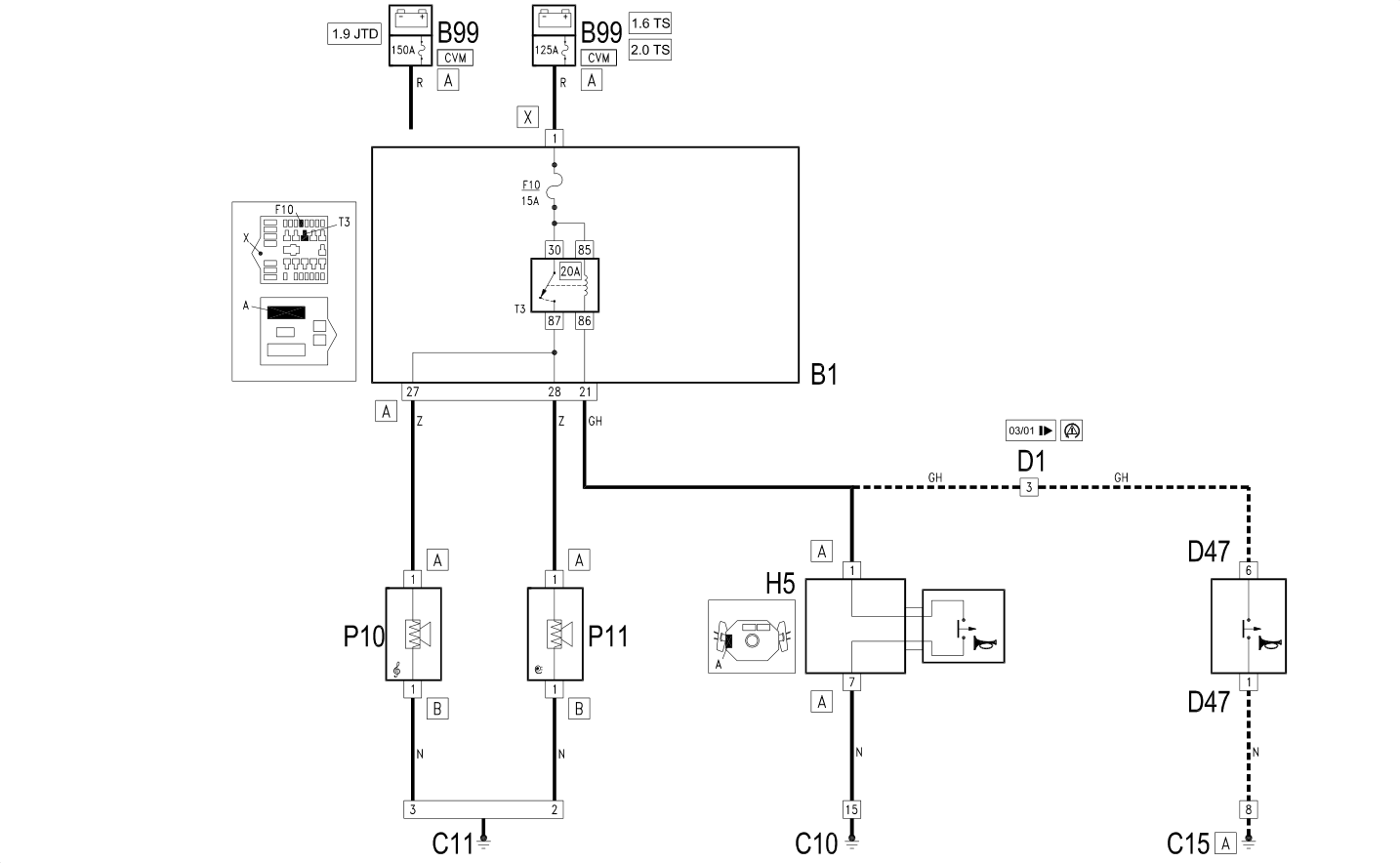

03/03 to 09/03, 04/01 to 06/02, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · VDC

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B99	Maxifuse box on battery	5530B
C10	Front left earth
C11	Right front earth
C15	Facia earth, driver's side
D1	Front / dashboard coupling
D47	Clock spring coupling	5580C
H5	Stalk unit	5550A
P10	High-tone horn	5550B
P11	Low-tone horn	5550B

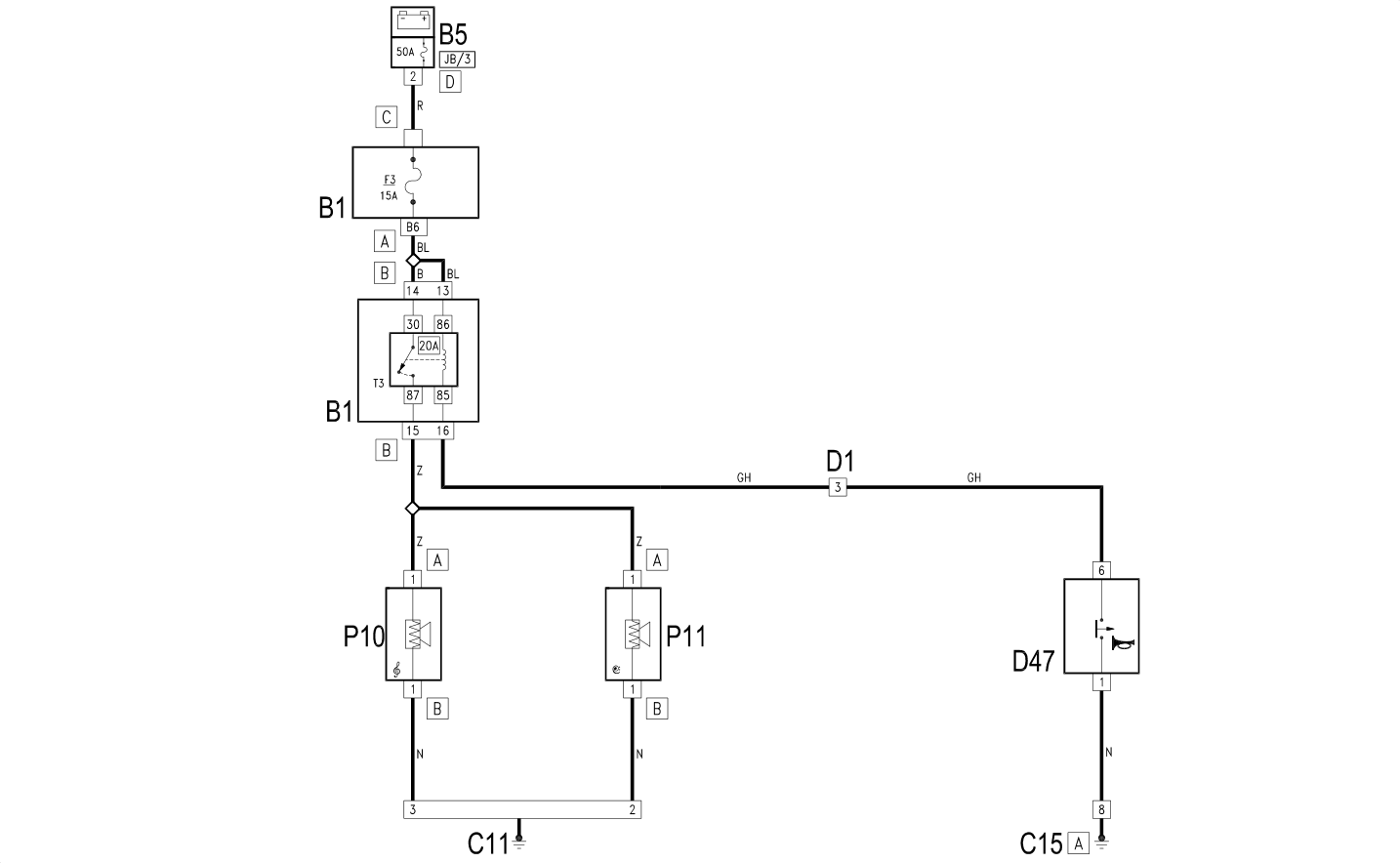

3.2 V6 · GTA

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit	5505A
B99	Maxifuse box on battery	5530B
C10	Front left earth
C11	Right front earth
C15	Facia earth, driver's side
D1	Front / dashboard coupling
D47	Clock spring coupling	5580C
H5	Stalk unit	5550A
P10	High-tone horn	5550B
P11	Low-tone horn	5550B
