SUN ROOF - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Electrically activated devices › SUN ROOF - Wiring diagram
Wiring diagrams and electrical functionsSUN ROOF - Wiring diagram
SUN ROOF - Wiring diagram

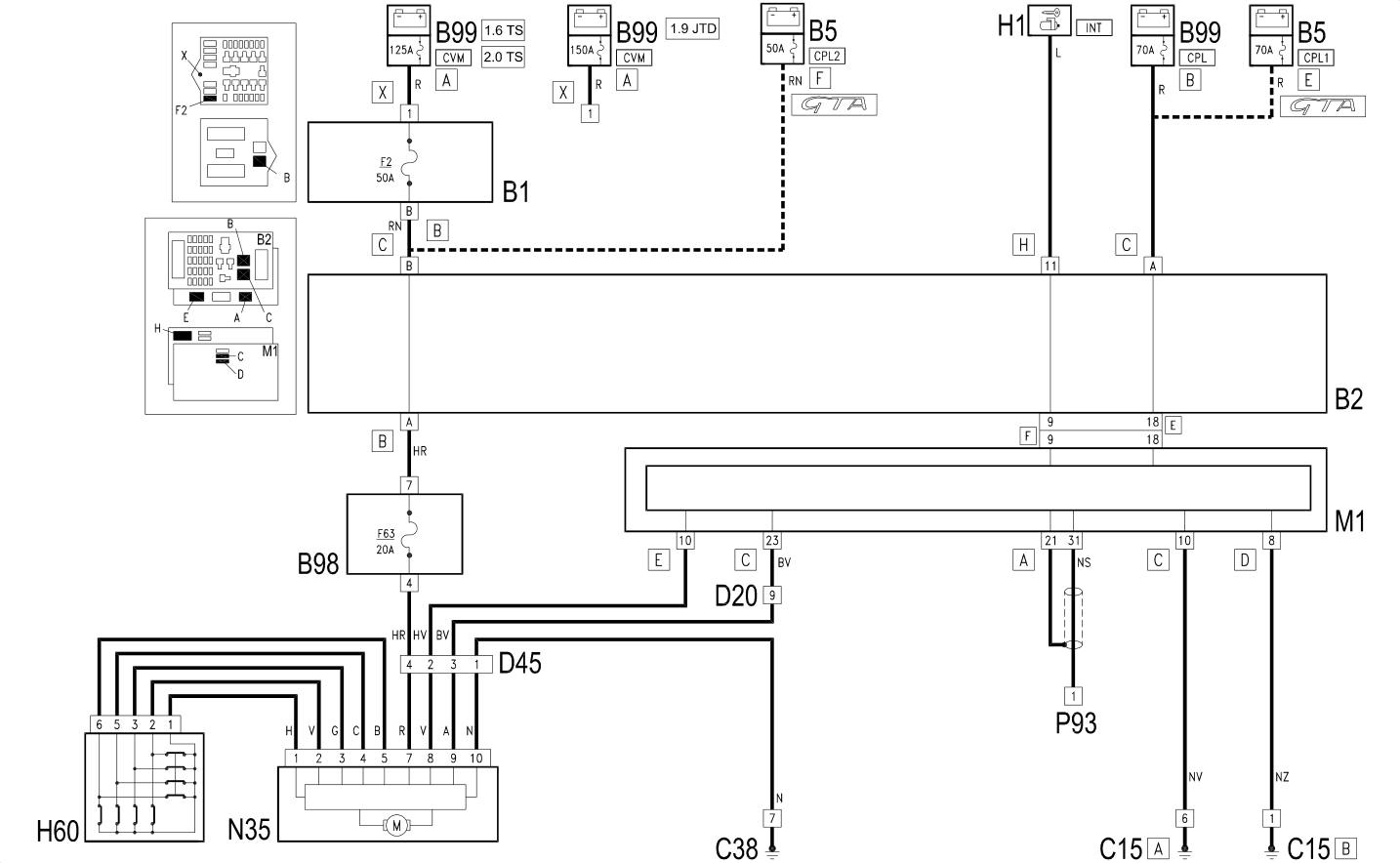

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B98 | Supplementary fuse box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C38 | Earth on centre tunnel | |
| D8 | Front coupling / air conditioner - with heating | |
| D20 | /Rear dashboard coupling | |
| D45 | Sunroof connection | |
| H1 | Ignition switch | 5520A |
| H60 | Sun roof switch | 7030B |
| M1 | Body computer | 5505A |
| M70 | Climate control system control unit | 5040D |
| N35 | Sun roof motor | 7030B |
| P93 | Receiver aerial for alarm and central locking |
