Wiring diagrams and electrical functions CENTRAL LOCKING - Wiring diagram
CENTRAL LOCKING - Wiring diagram

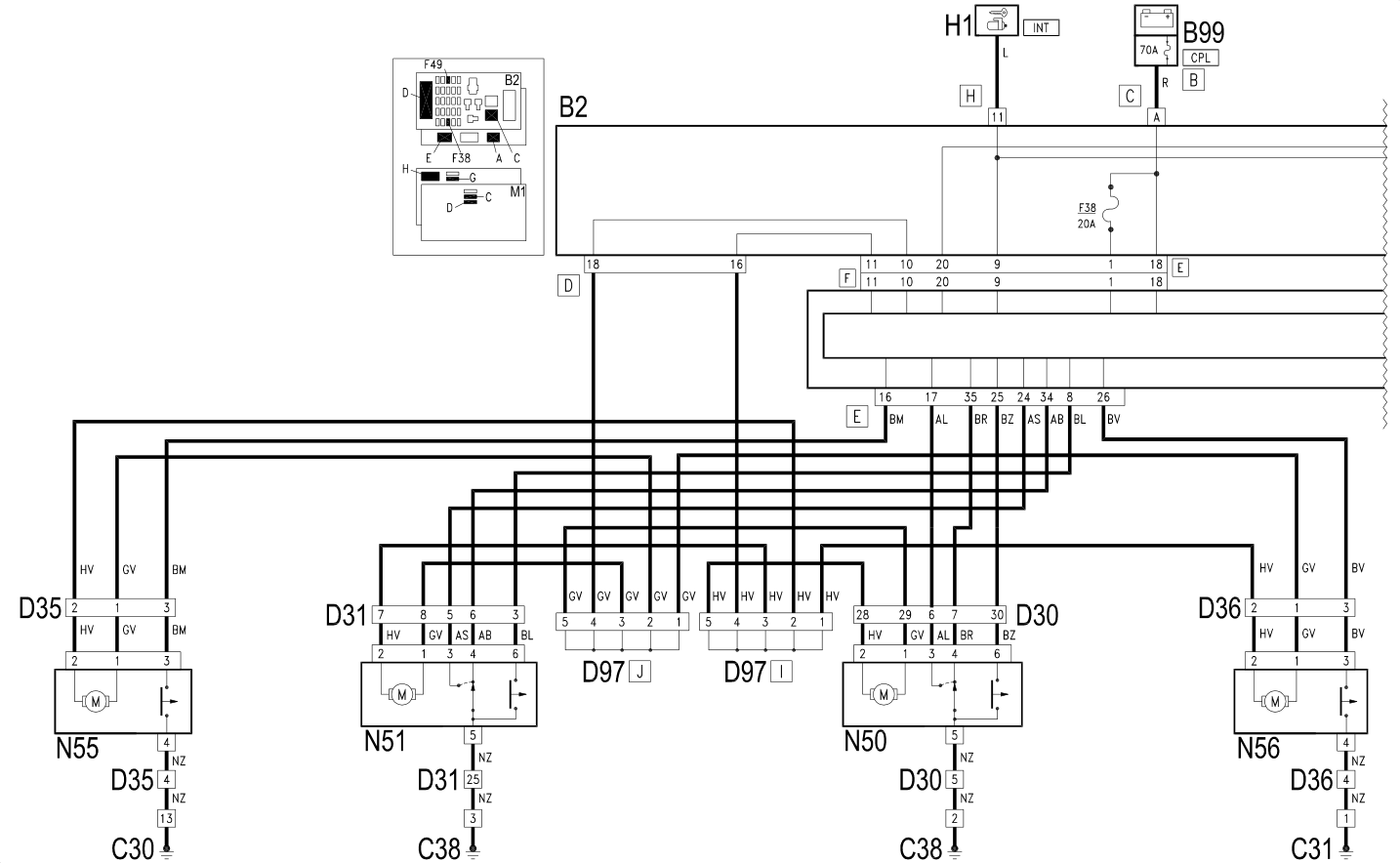

3-door
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth C38 Earth on centre tunnel D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D35 Rear / rear door coupling left D36 Right rear/ .door rear coupling D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A N50 .Front driver's door lock geared motor 7005N N51 Passenger side front door lock geared motor 7005N N55 Left rear. door lock geared motor 7010N N56 Rear door lock geared motor right 7010N P93 Receiver aerial for alarm and central locking

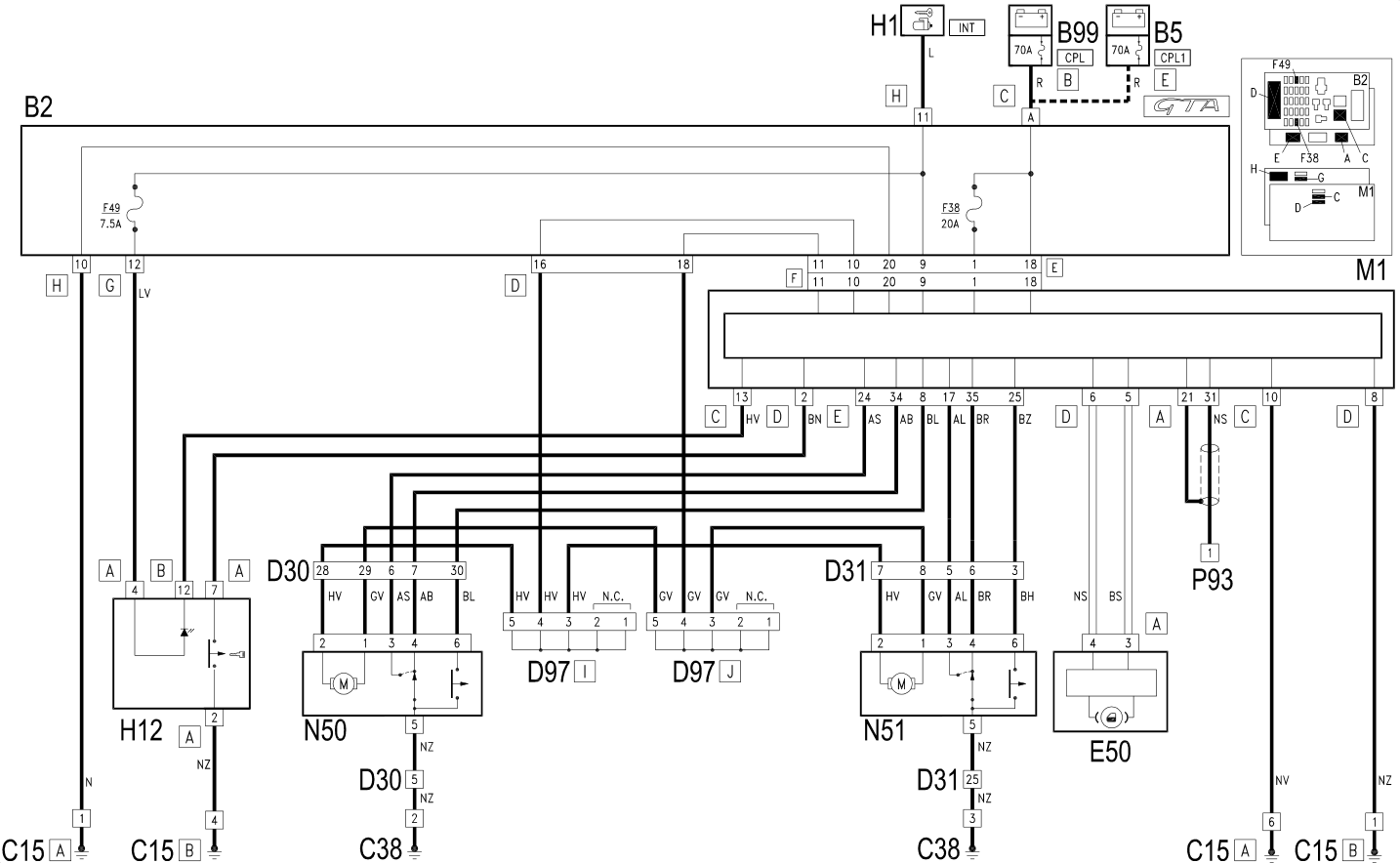

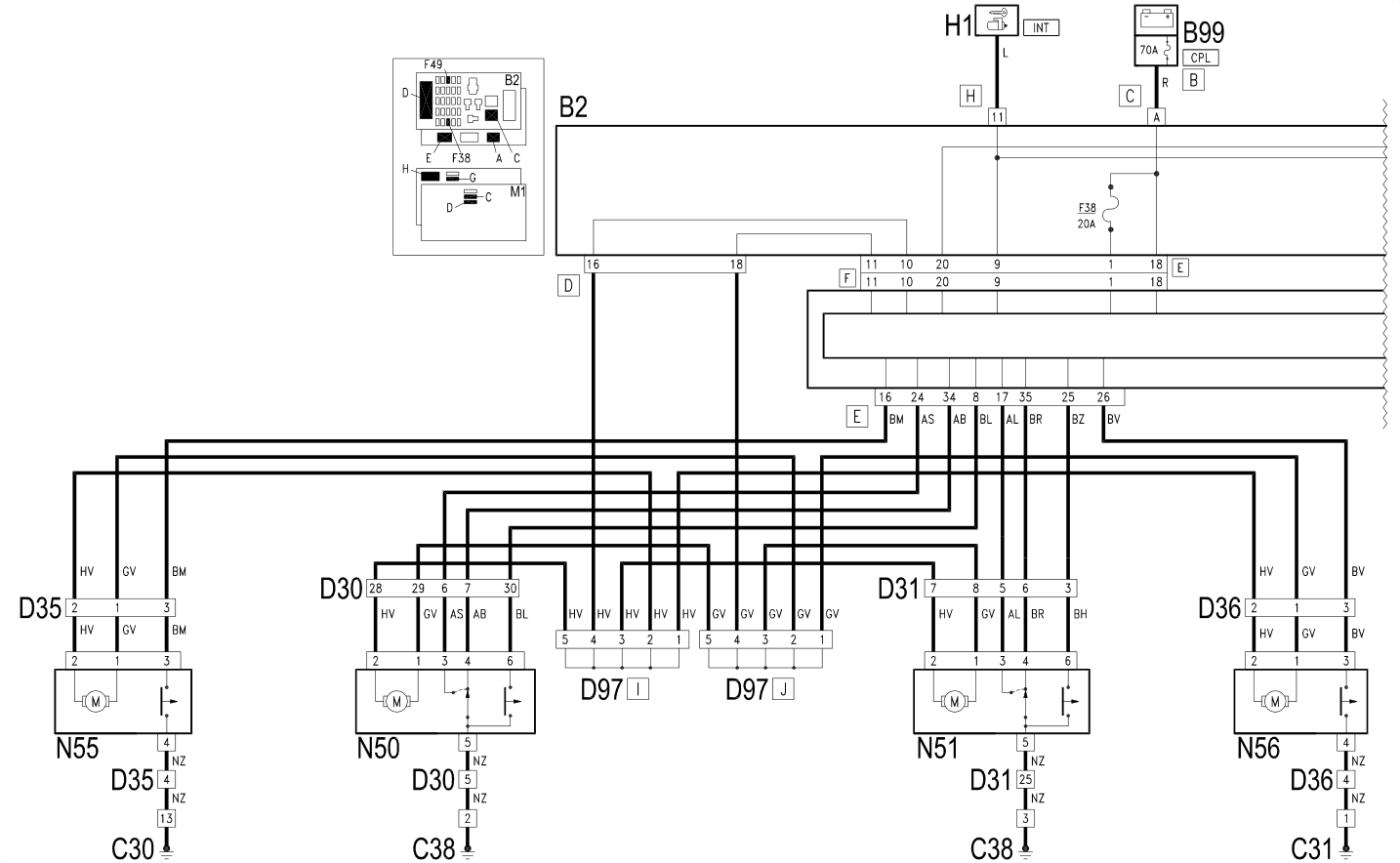

5-door
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth C38 Earth on centre tunnel D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D35 Rear / rear door coupling left D36 Right rear/ .door rear coupling D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A N50 .Front driver's door lock geared motor 7005N N51 Passenger side front door lock geared motor 7005N N55 Left rear. door lock geared motor 7010N N56 Rear door lock geared motor right 7010N P93 Receiver aerial for alarm and central locking

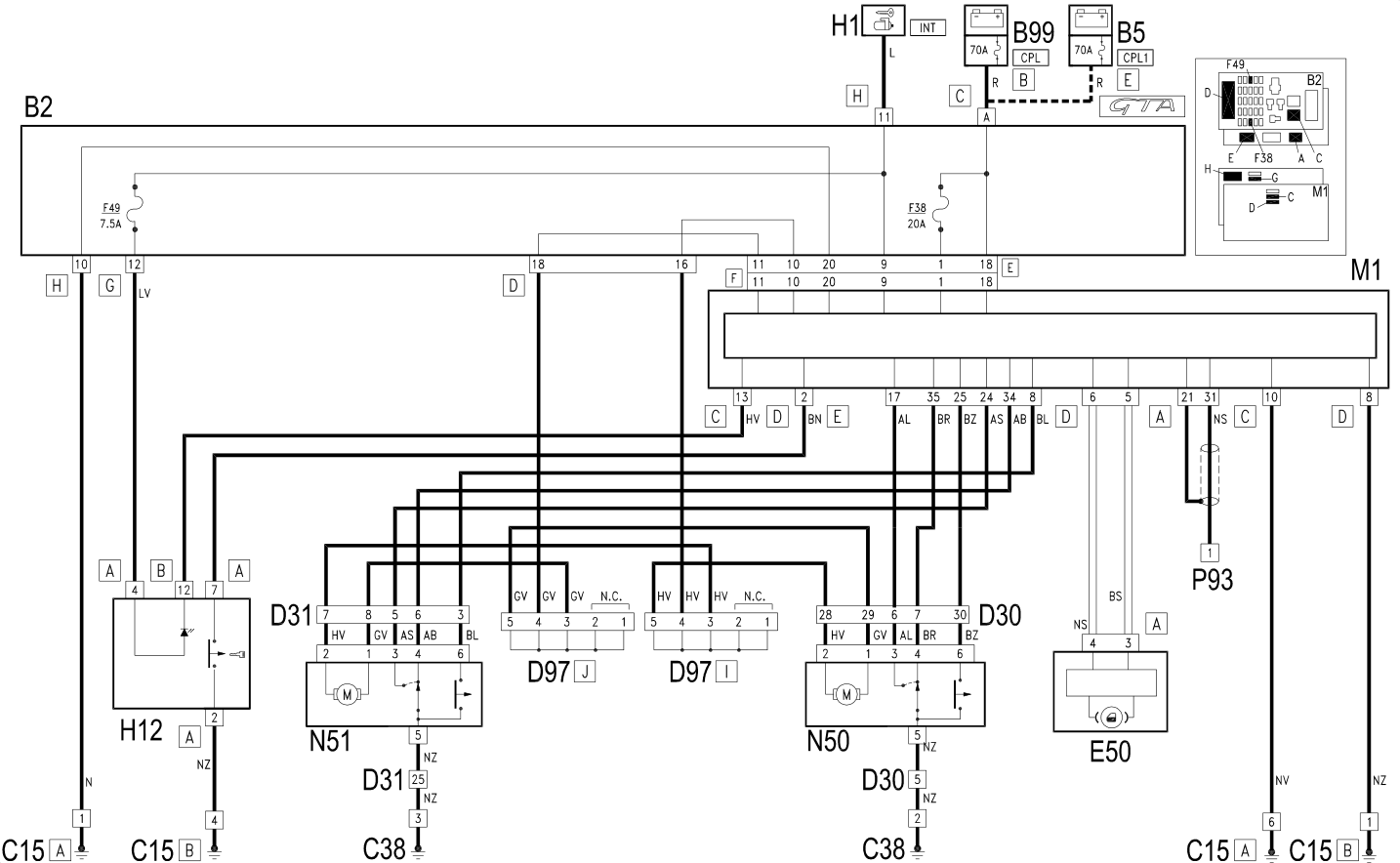

3-door, Right-hand drive
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth C38 Earth on centre tunnel D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D35 Rear / rear door coupling left D36 Right rear/ .door rear coupling D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A N50 .Front driver's door lock geared motor 7005N N51 Passenger side front door lock geared motor 7005N N55 Left rear. door lock geared motor 7010N N56 Rear door lock geared motor right 7010N P93 Receiver aerial for alarm and central locking

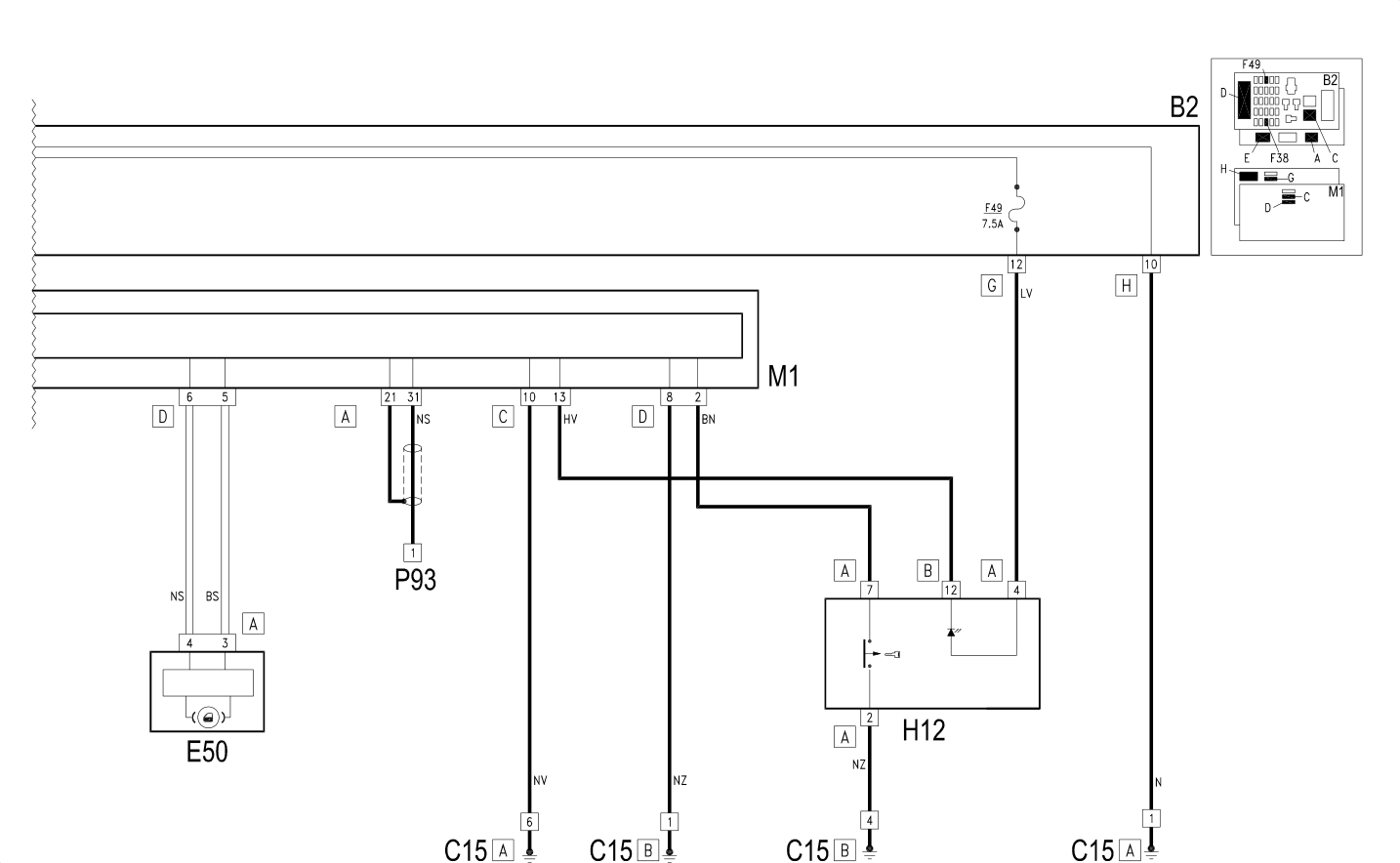

5-door, Right-hand drive
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C30 Left rear earth C31 Rear right earth C38 Earth on centre tunnel D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D35 Rear / rear door coupling left D36 Right rear/ .door rear coupling D97 Short circuiting coupling E50 Instrument panel 5560B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A N50 .Front driver's door lock geared motor 7005N N51 Passenger side front door lock geared motor 7005N N55 Left rear. door lock geared motor 7010N N56 Rear door lock geared motor right 7010N P93 Receiver aerial for alarm and central locking
