HEADLAMP WASHER - Wiring diagram

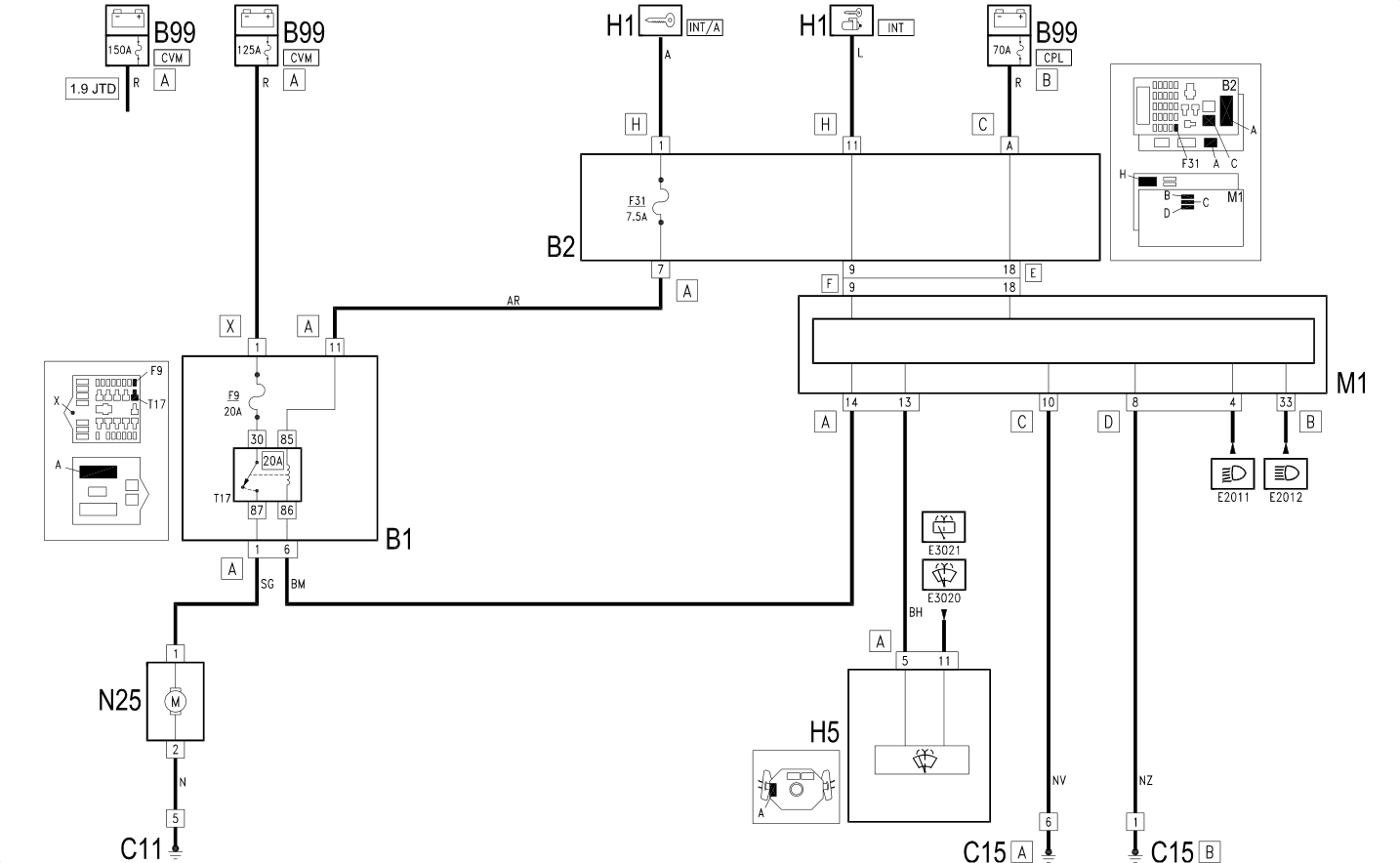

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| H1 | Ignition switch | 5520A |
| H5 | Stalk unit | 5550A |
| J50 | Headlamp washer relay | |
| M1 | Body computer | 5505A |
| N25 | Headlamp washer pump motor | 5050D |

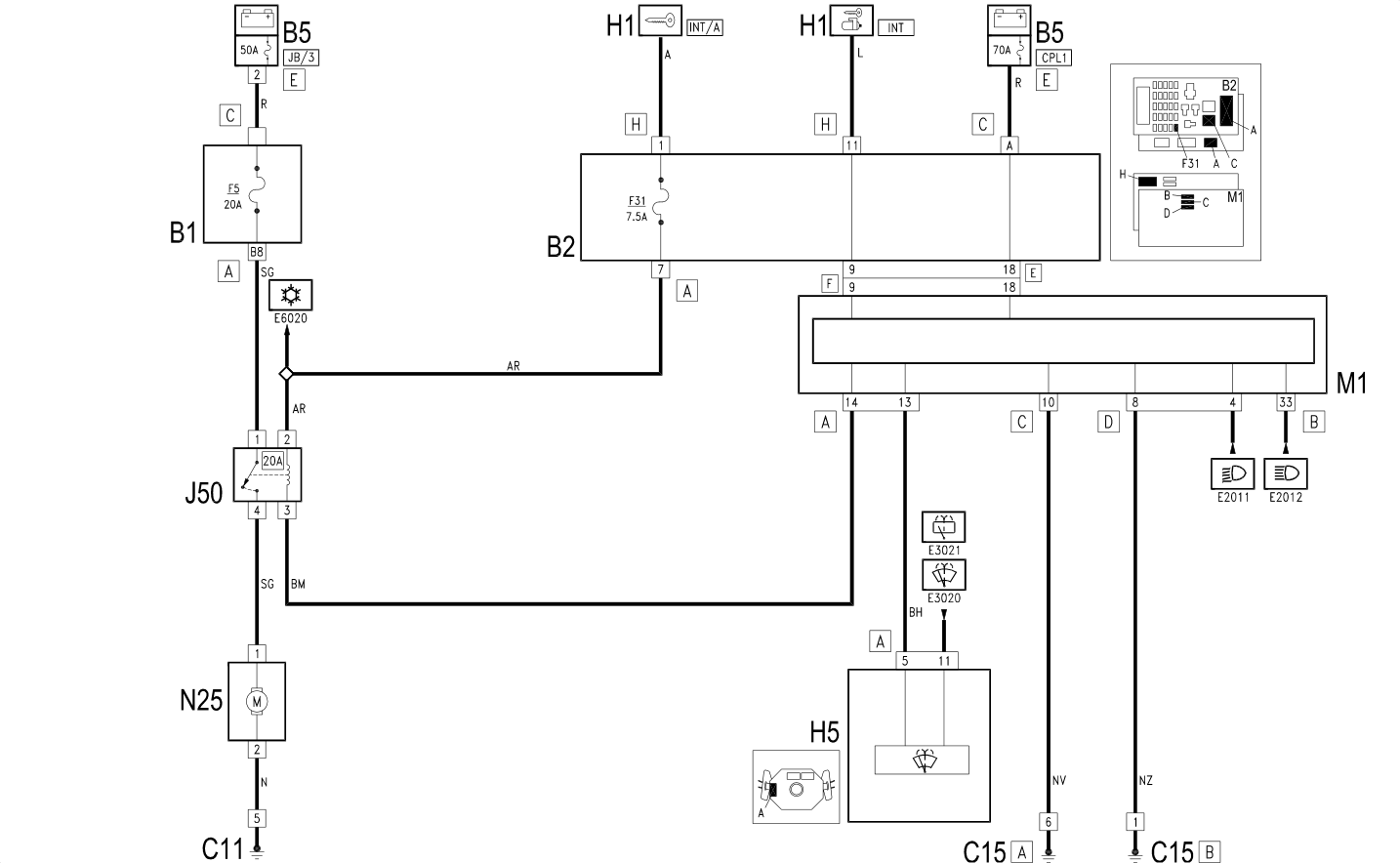

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B1 | Engine compartment junction unit | 5505A |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| H1 | Ignition switch | 5520A |
| H5 | Stalk unit | 5550A |
| J50 | Headlamp washer relay | |
| M1 | Body computer | 5505A |
| N25 | Headlamp washer pump motor | 5050D |
