Wiring diagrams and electrical functions FOG LIGHTS - Wiring diagram
FOG LIGHTS - Wiring diagram

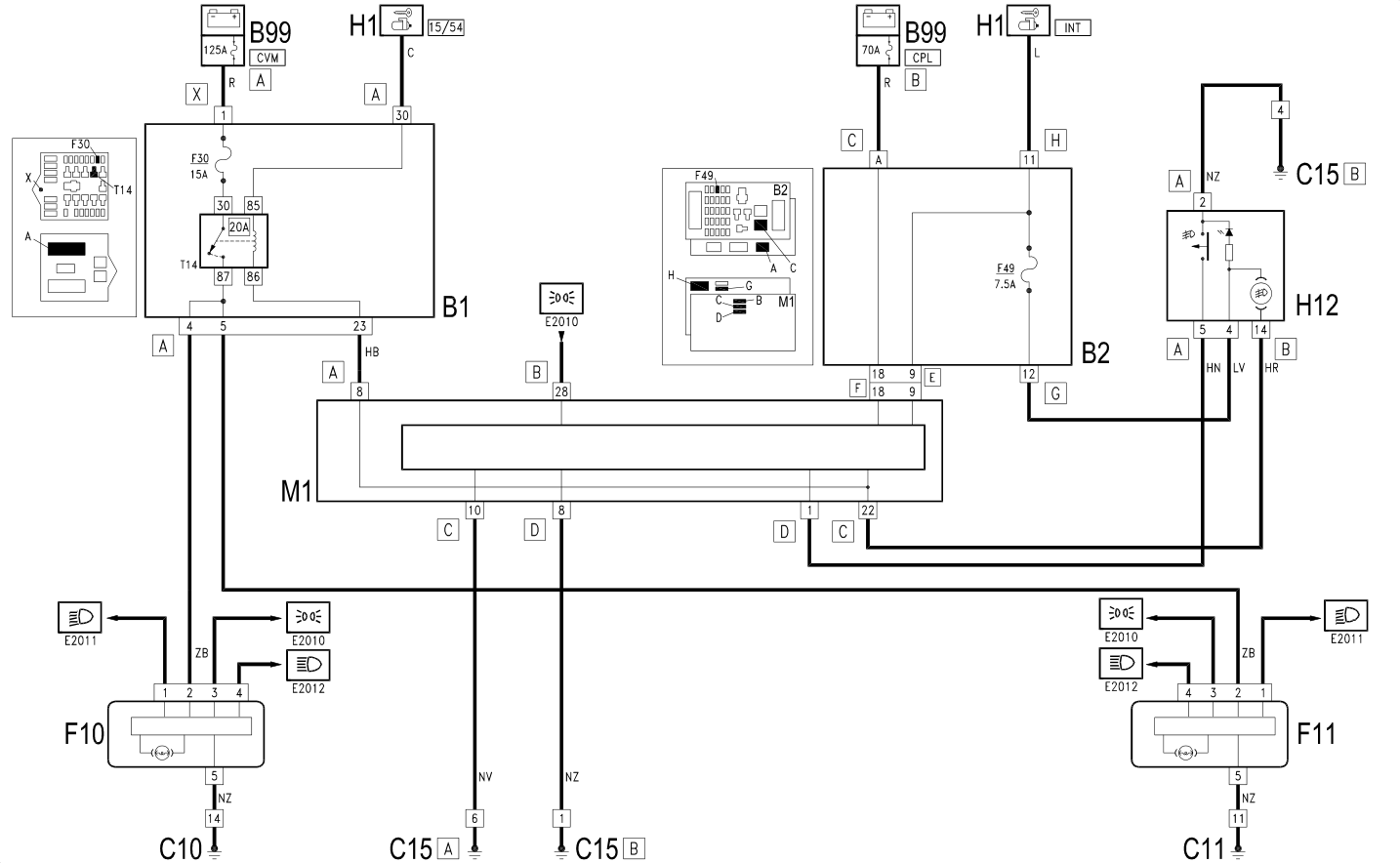

Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side F10 Left headlamp F10 Left headlamp 5540B F11 Right headlamp F11 Right headlamp 5540B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A
3.2 V6 · GTA

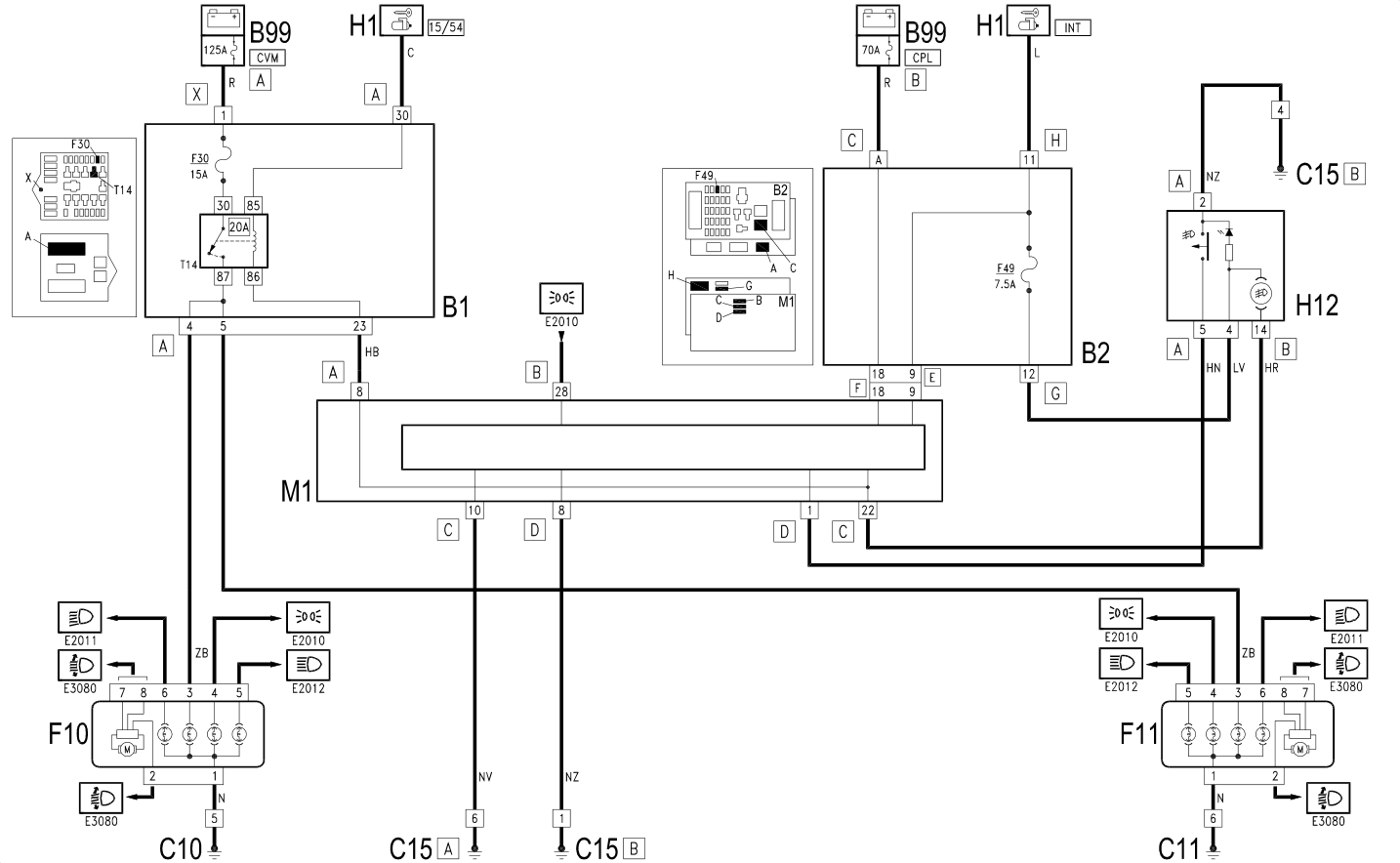

Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side F10 Left headlamp F10 Left headlamp 5540B F11 Right headlamp F11 Right headlamp 5540B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A

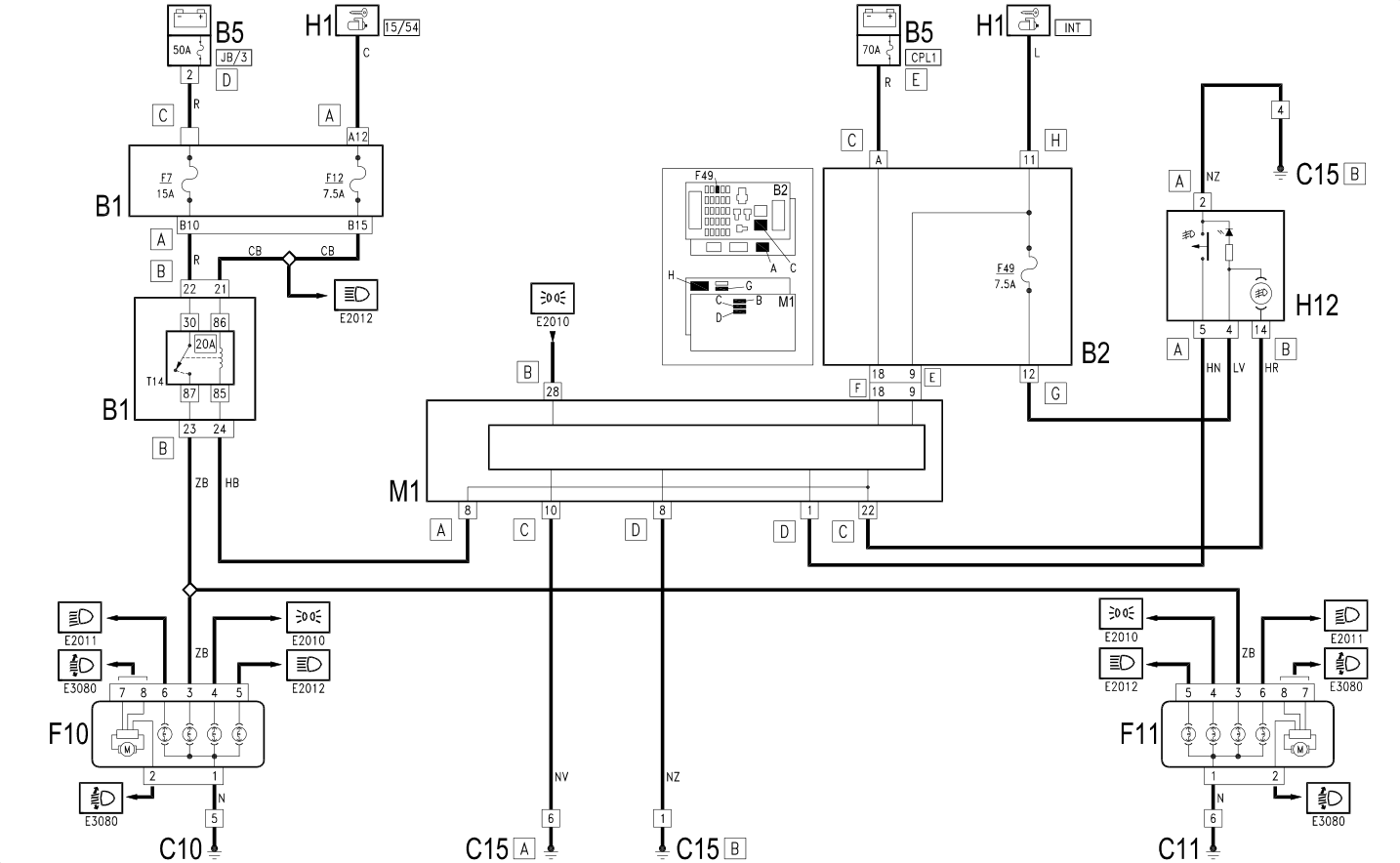

Xenon headlamps
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side F10 Left headlamp F10 Left headlamp 5540B F11 Right headlamp F11 Right headlamp 5540B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A

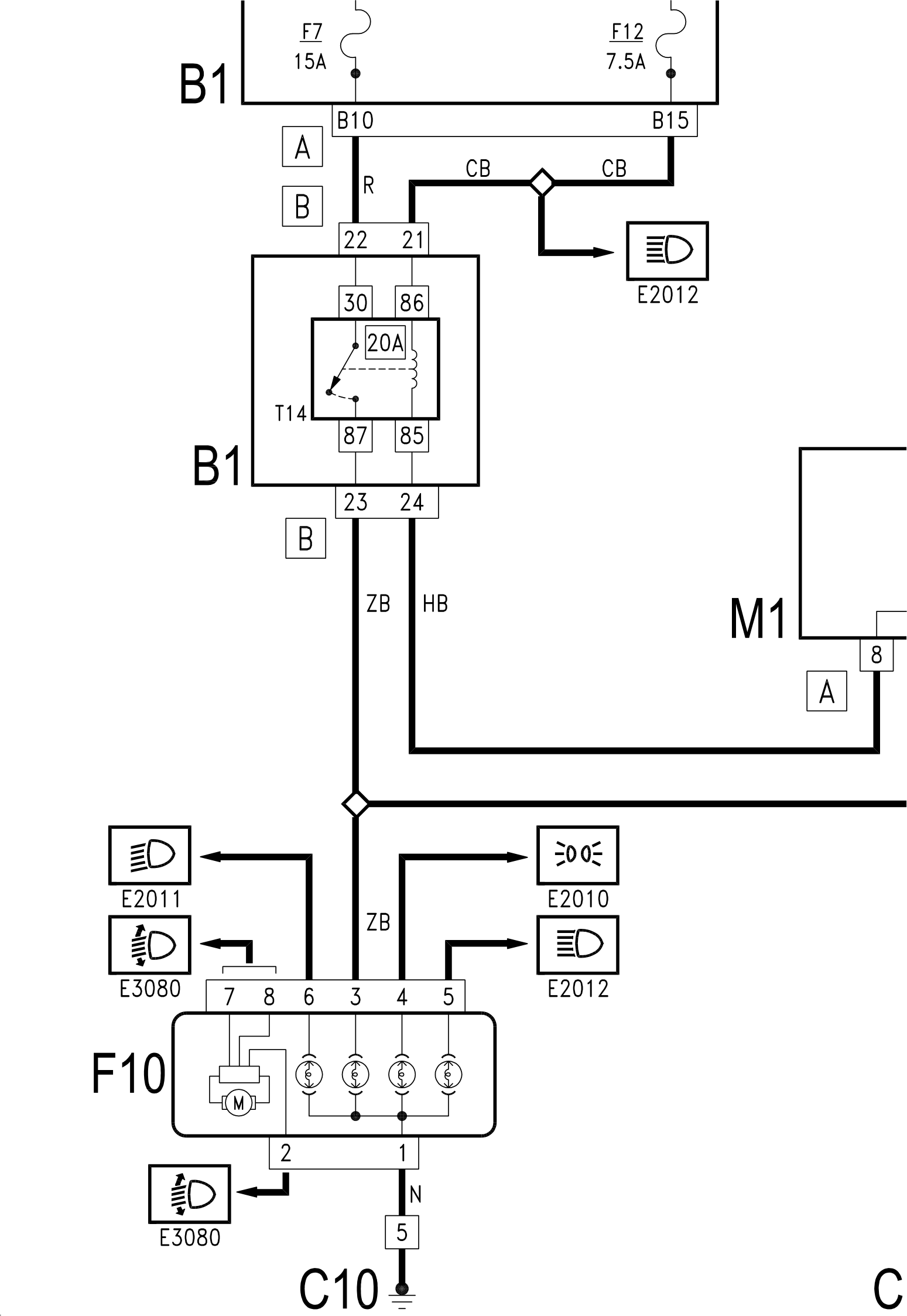

3.2 V6 · GTA, Xenon headlamps
Wiring diagram
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B99 Maxifuse box on battery 5530B C10 Front left earth C11 Right front earth C15 Facia earth, driver's side F10 Left headlamp F10 Left headlamp 5540B F11 Right headlamp F11 Right headlamp 5540B H1 Ignition switch 5520A H12 Hazard warning lights, fog lights, rear fog lamps control 5505A M1 Body computer 5505A
19 Electrical
