DIPPED HEADLAMPS - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Interior lighting › DIPPED HEADLAMPS - Wiring diagram
Wiring diagrams and electrical functionsDIPPED HEADLAMPS - Wiring diagram
DIPPED HEADLAMPS - Wiring diagram

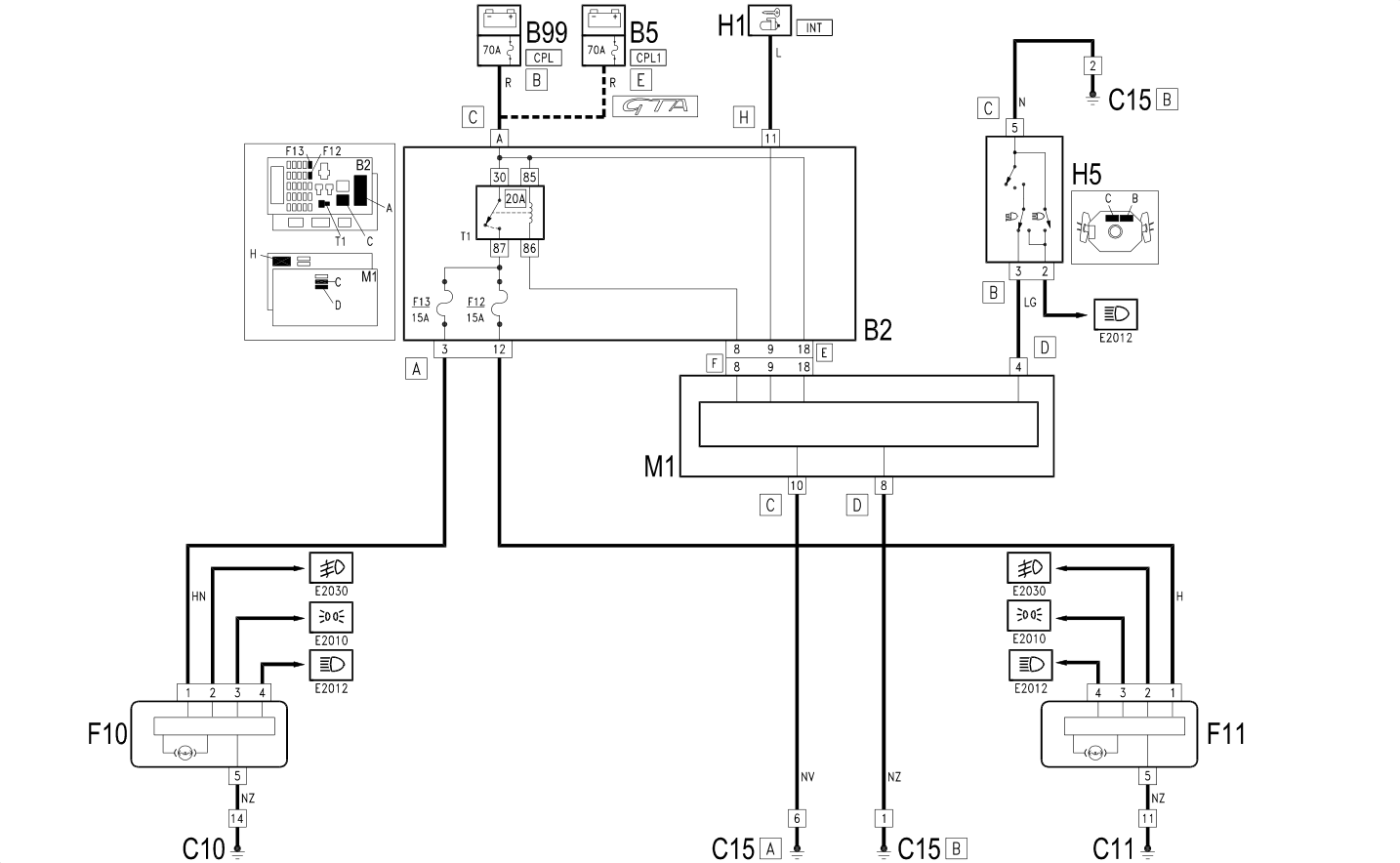

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| F10 | Left headlamp | |
| F10 | Left headlamp | 5540B |
| F11 | Right headlamp | |
| F11 | Right headlamp | 5540B |
| H1 | Ignition switch | 5520A |
| H5 | Stalk unit | 5550A |
| M1 | Body computer | 5505A |

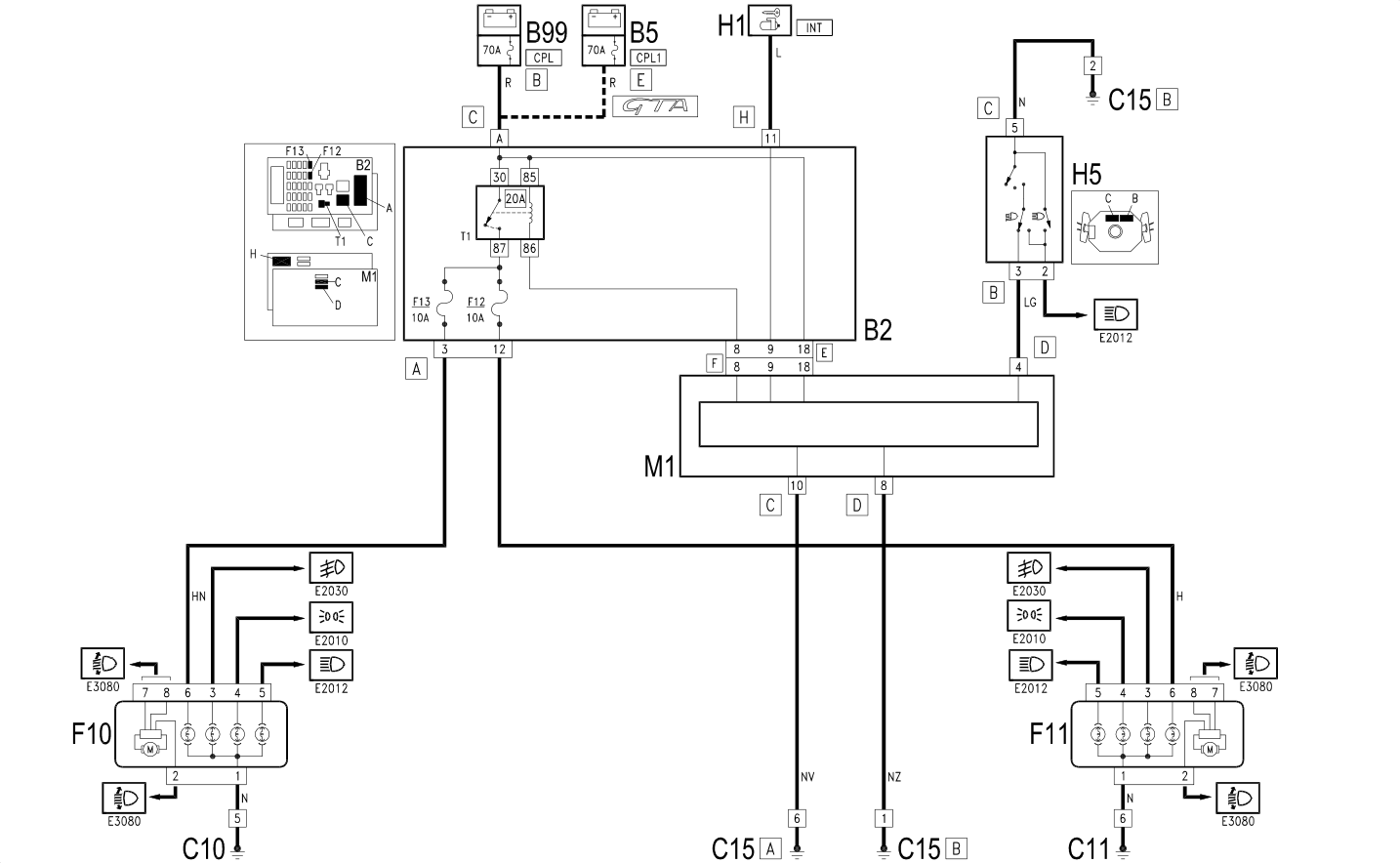

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C10 | Front left earth | |
| C11 | Right front earth | |
| C15 | Facia earth, driver's side | |
| F10 | Left headlamp | |
| F10 | Left headlamp | 5540B |
| F11 | Right headlamp | |
| F11 | Right headlamp | 5540B |
| H1 | Ignition switch | 5520A |
| H5 | Stalk unit | 5550A |
| M1 | Body computer | 5505A |
