COURTESY LIGHTS - Wiring diagram

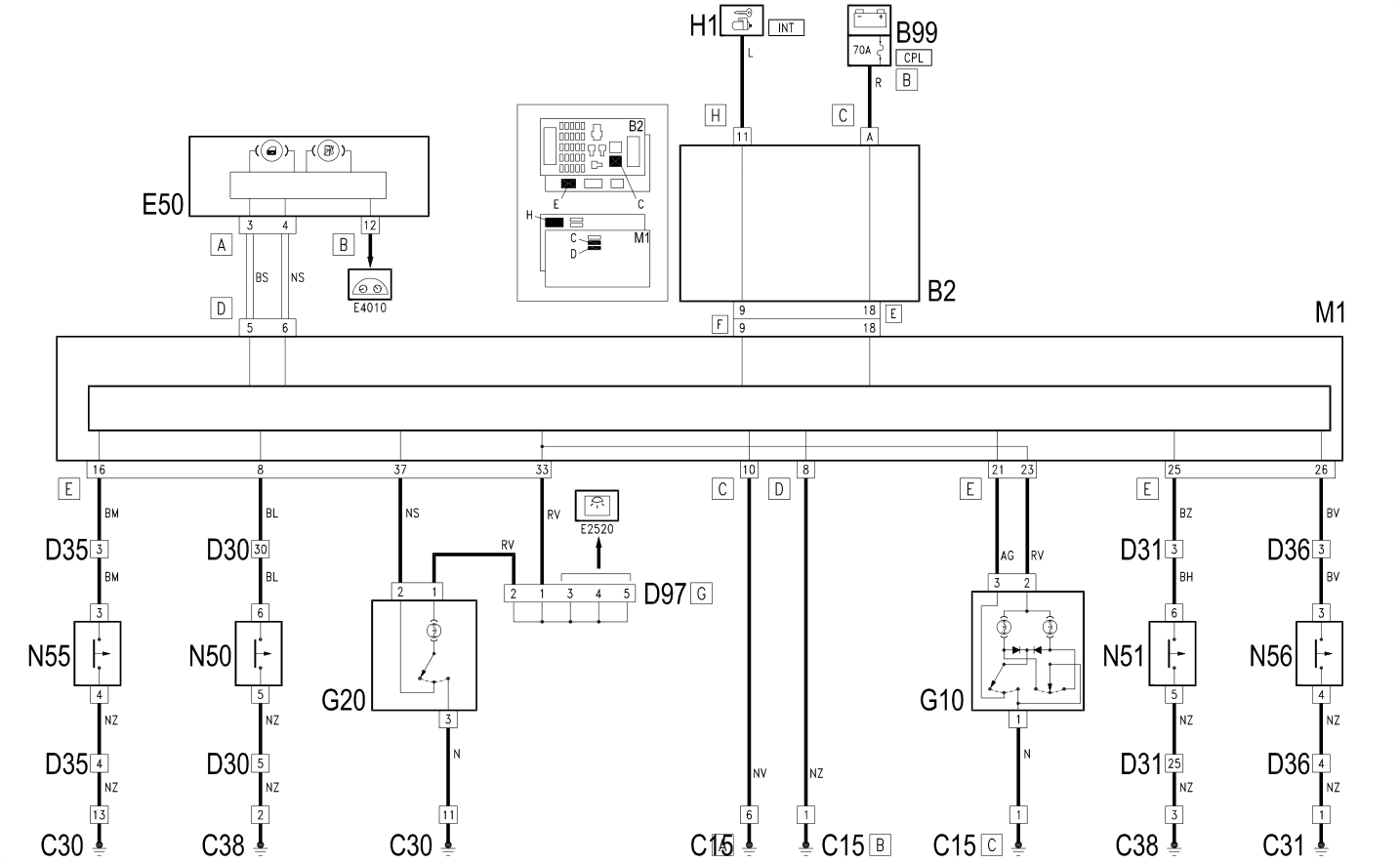

3-door

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
C38	Earth on centre tunnel
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D35	Rear / rear door coupling left
D36	Right rear/ .door rear coupling
D97	Short circuiting coupling
E50	Instrument panel	5560B
G10	Front courtesy light	7040E
G20	Rear courtesy light	7040E
H1	Ignition switch	5520A
M1	Body computer	5505A
N50	.Front driver's door lock geared motor	7005N
N51	Passenger side front door lock geared motor	7005N
N55	Left rear. door lock geared motor	7010N
N56	Rear door lock geared motor right	7010N

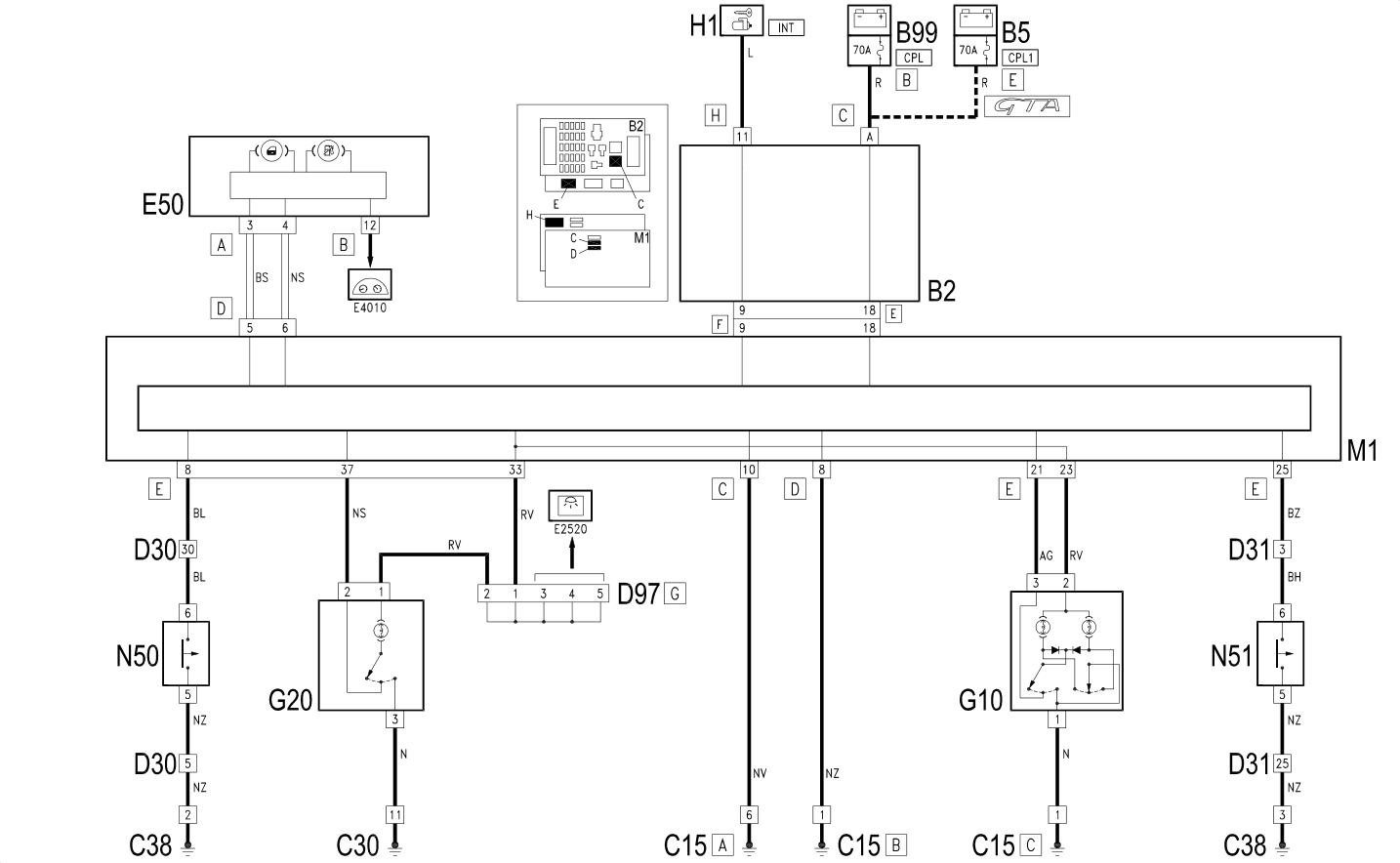

5-door

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C30	Left rear earth
C38	Earth on centre tunnel
D30	Rear coupling for /front door. driver's side
D31	/Front passenger door. rear coupling
D35	Rear / rear door coupling left
D36	Right rear/ .door rear coupling
D97	Short circuiting coupling
E50	Instrument panel	5560B
G10	Front courtesy light	7040E
G20	Rear courtesy light	7040E
H1	Ignition switch	5520A
M1	Body computer	5505A
N50	.Front driver's door lock geared motor	7005N
N51	Passenger side front door lock geared motor	7005N
N55	Left rear. door lock geared motor	7010N
N56	Rear door lock geared motor right	7010N
