INSTRUMENT LIGHTING - Wiring diagram

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2004

Section

Interior lighting › INSTRUMENT LIGHTING - Wiring diagram

Wiring diagrams and electrical functionsINSTRUMENT LIGHTING - Wiring diagram

INSTRUMENT LIGHTING - Wiring diagram

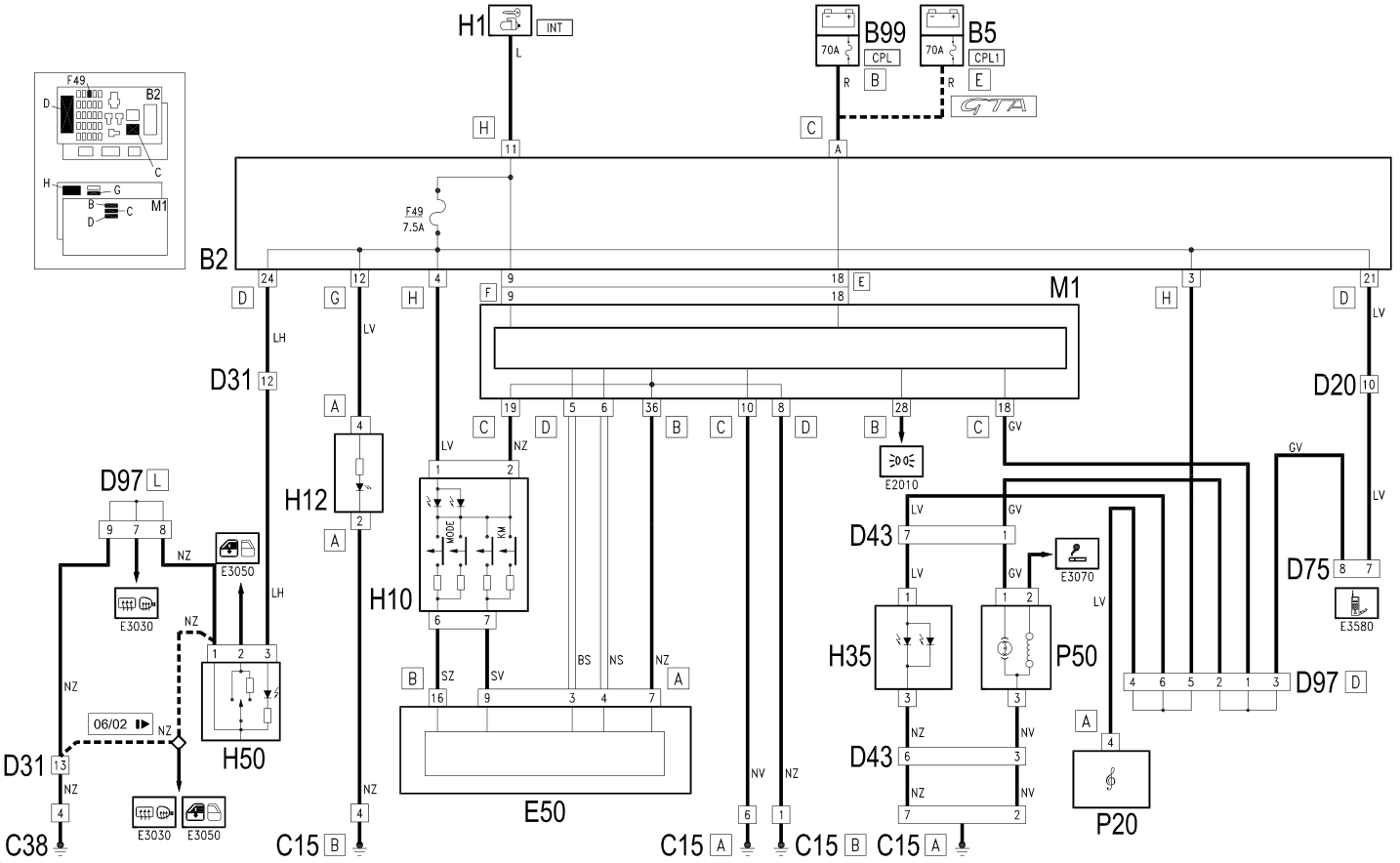

Wiring diagram

Components

Component code	Name	Assembly reference
B1	Engine compartment junction unit
B2	Junction unit under dashboard	5505A
B5	MAXI FUSE box
B99	Maxifuse box on battery	5530B
C15	Facia earth, driver's side
C38	Earth on centre tunnel
D20	/Rear dashboard coupling
D31	/Front passenger door. rear coupling
D43	Dashboard/centre console coupling
D75	Radio phone junction
D97	Short circuiting coupling
E50	Instrument panel	5560B
H1	Ignition switch	5520A
H10	Controls for headlamp alignment, instrument lighting adjustment	5560B
H12	Hazard warning lights, fog lights, rear fog lamps control	5505A
H35	Switches on tunnel	7040L
H50	Electric window switch on .front passenger door	7005M
M1	Body computer	5505A
P20	Radio	5570T
P20	Radio	5580P
P50	Cigar lighter/current socket	7065C
