BRAKE LIGHTS - Wiring diagram
- Make
- Alfa Romeo
- Model
- 147 Factory Service Manual
- Year
- 2000–2004
- Section
- Interior lighting › BRAKE LIGHTS - Wiring diagram
Wiring diagrams and electrical functionsBRAKE LIGHTS - Wiring diagram
BRAKE LIGHTS - Wiring diagram

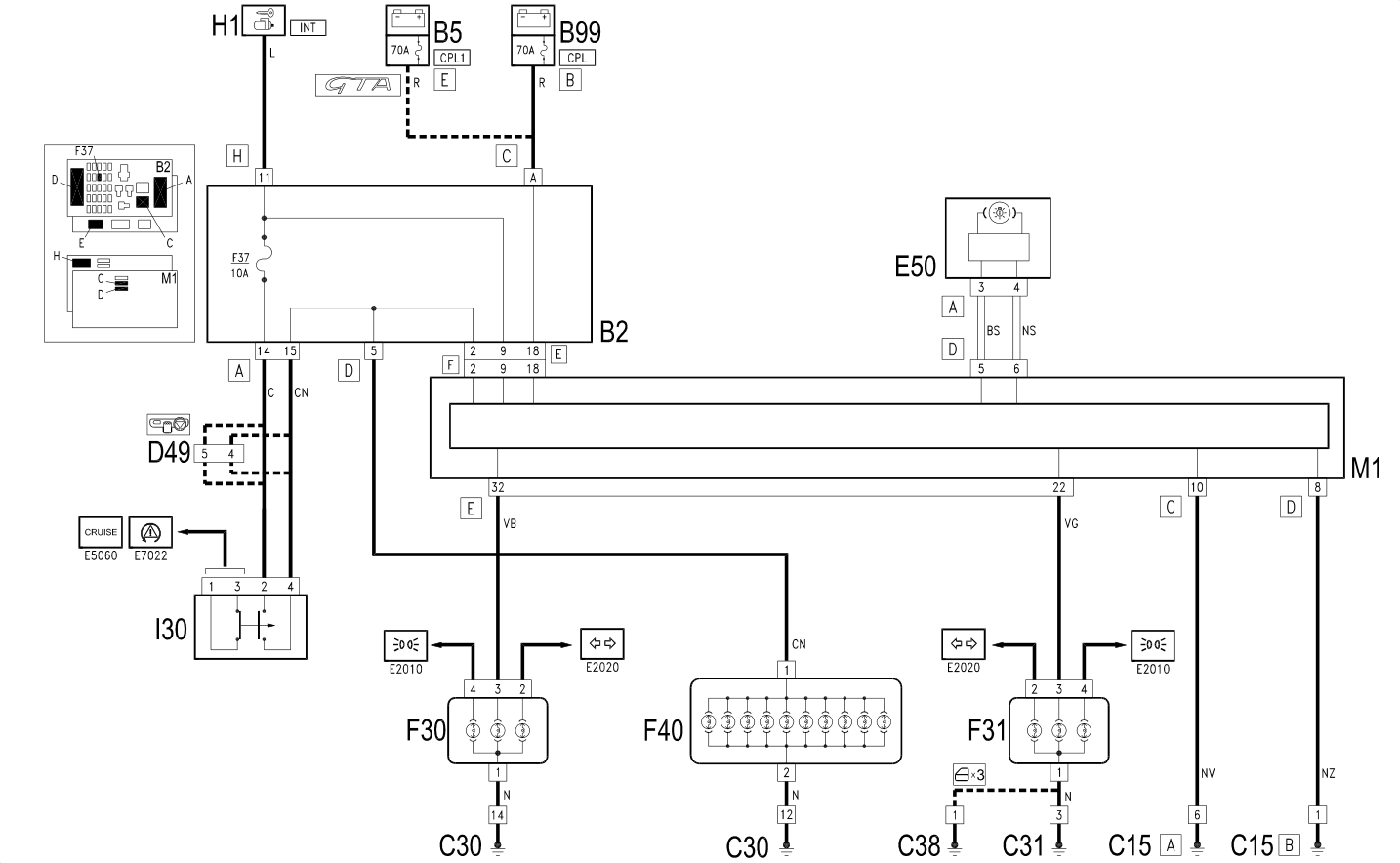

Wiring diagram
Components
| Component code | Name | Assembly reference |
|---|---|---|
| B1 | Engine compartment junction unit | |
| B2 | Junction unit under dashboard | 5505A |
| B5 | MAXI FUSE box | |
| B99 | Maxifuse box on battery | 5530B |
| C15 | Facia earth, driver's side | |
| C30 | Left rear earth | |
| C31 | Rear right earth | |
| C38 | Earth on centre tunnel | |
| D49 | Pedal assembly join | |
| E50 | Instrument panel | 5560B |
| F30 | Left. rear( light cluster on fixed part) | 5540A |
| F31 | Right. rear light cluster (fixed part) | 5540A |
| F40 | Additional ("third brake light") | 5550D |
| H1 | Ignition switch | 5520A |
| I30 | Brake pedal switch | 5550D |
| M1 | Body computer | 5505A |
