RADIO - Location of components
04/01 to 06/02, up to 03/01 · 3-door

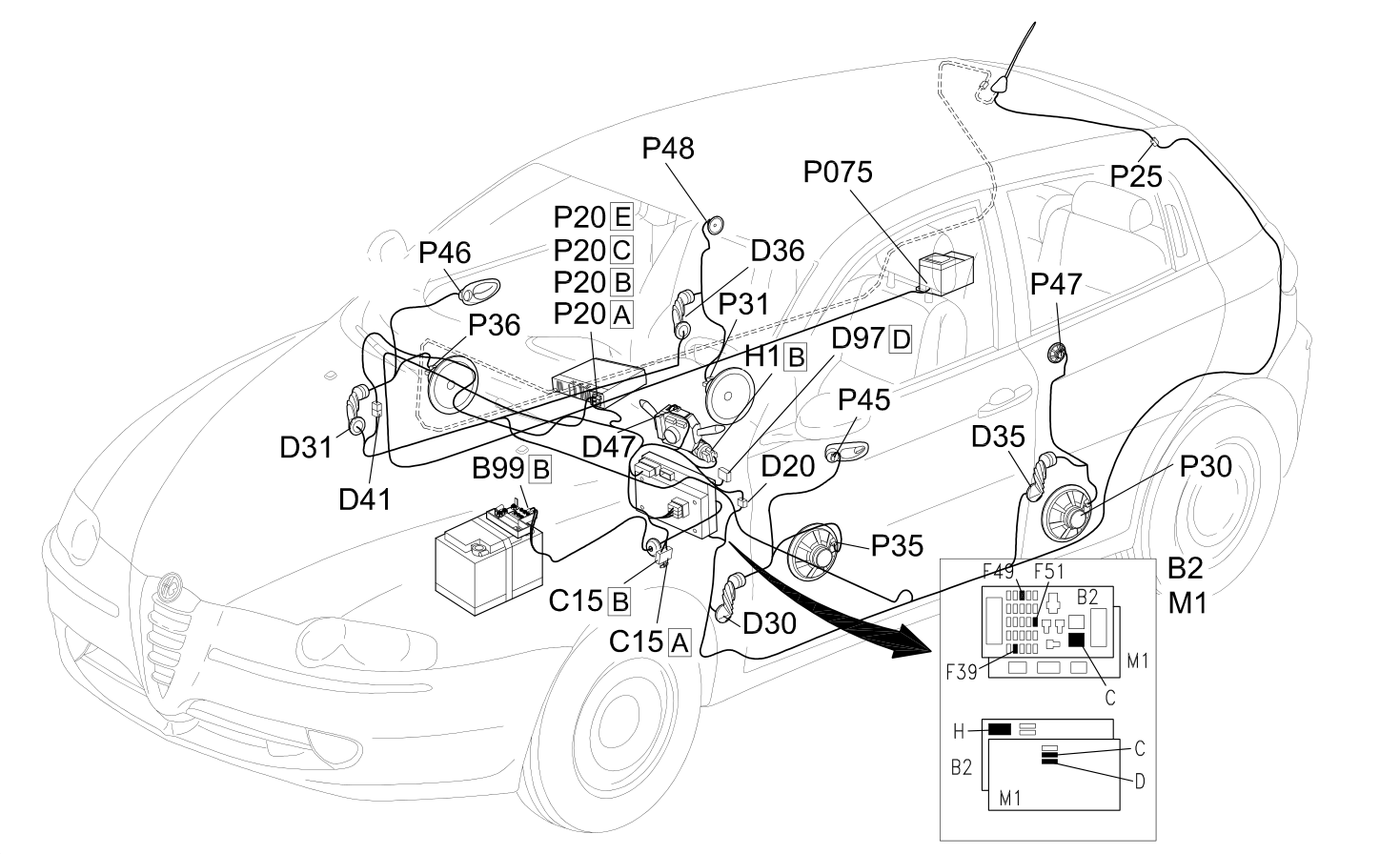

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

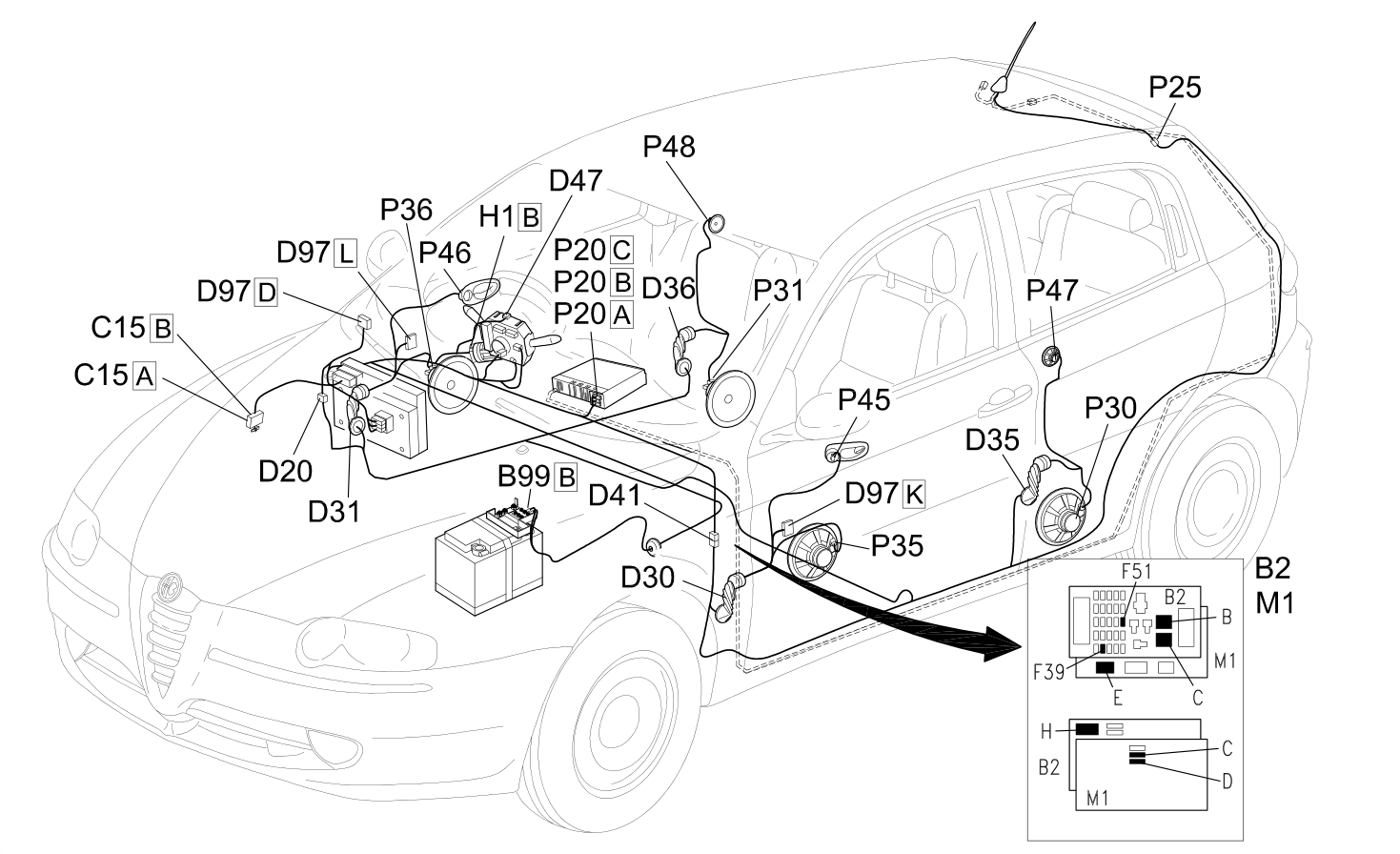

04/01 to 06/02, up to 03/01 · 5-door

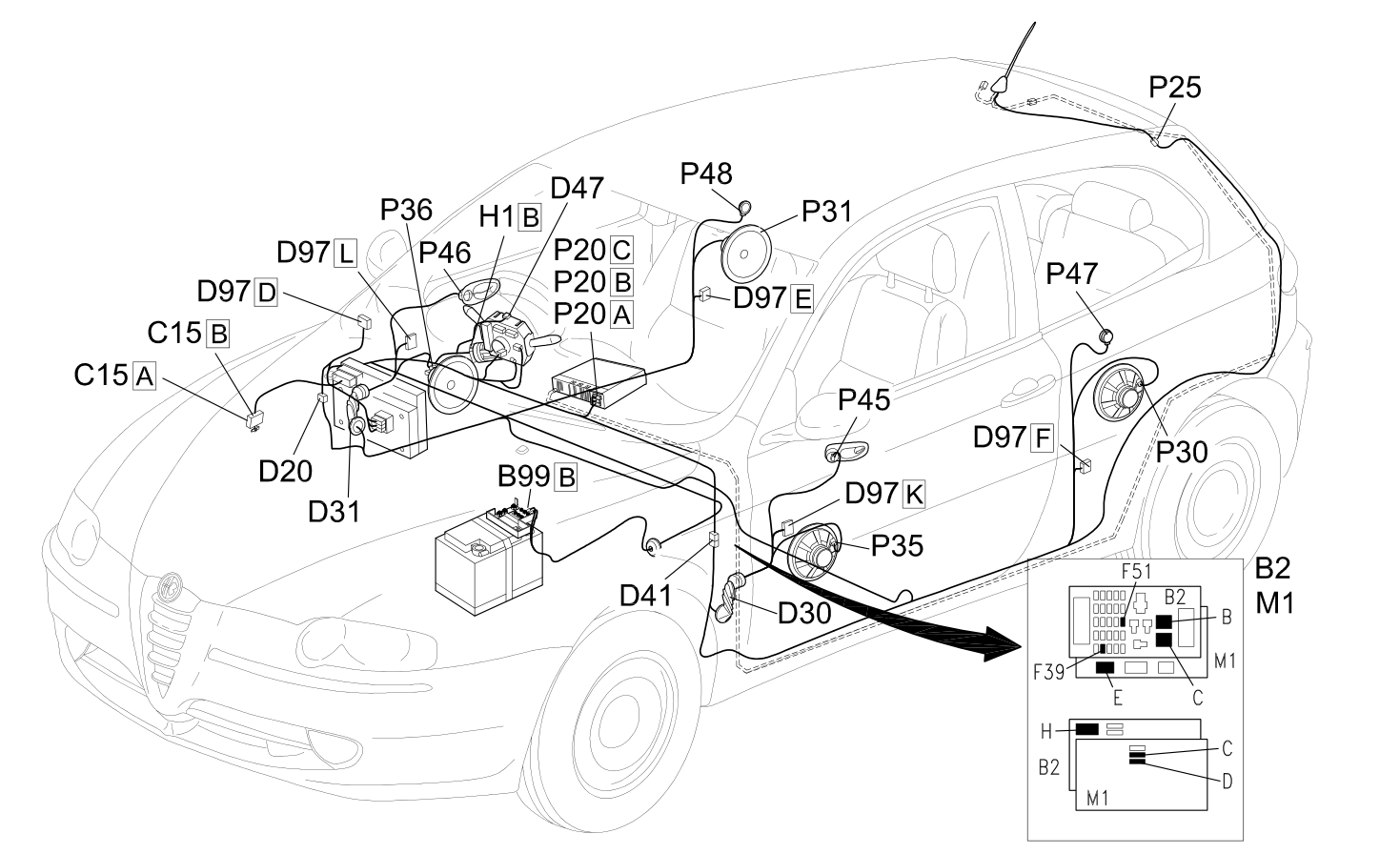

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
04/01 to 06/02, up to 03/01 · 3-door, Right-hand drive

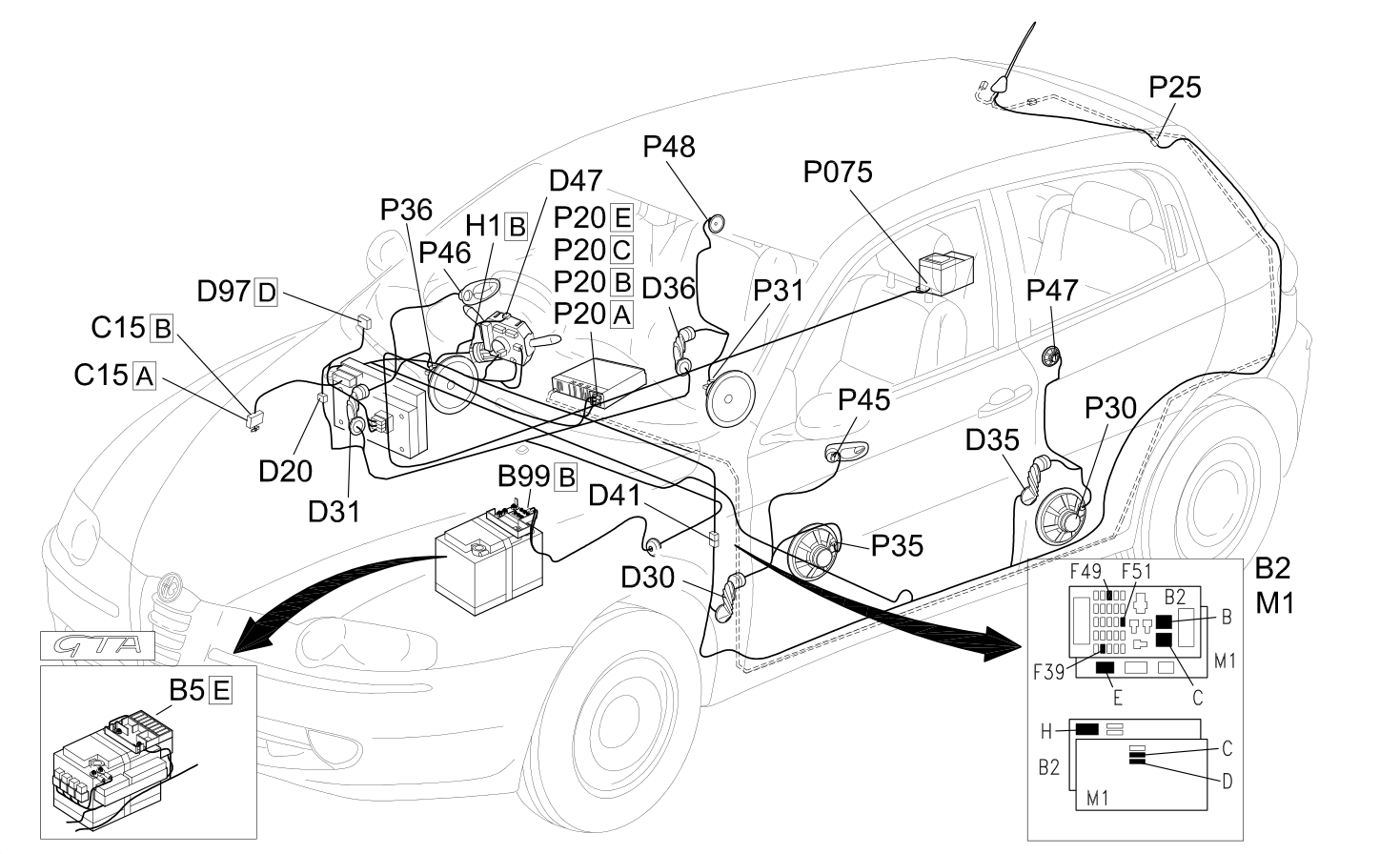

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
04/01 to 06/02, up to 03/01 · 5-door, Right-hand drive

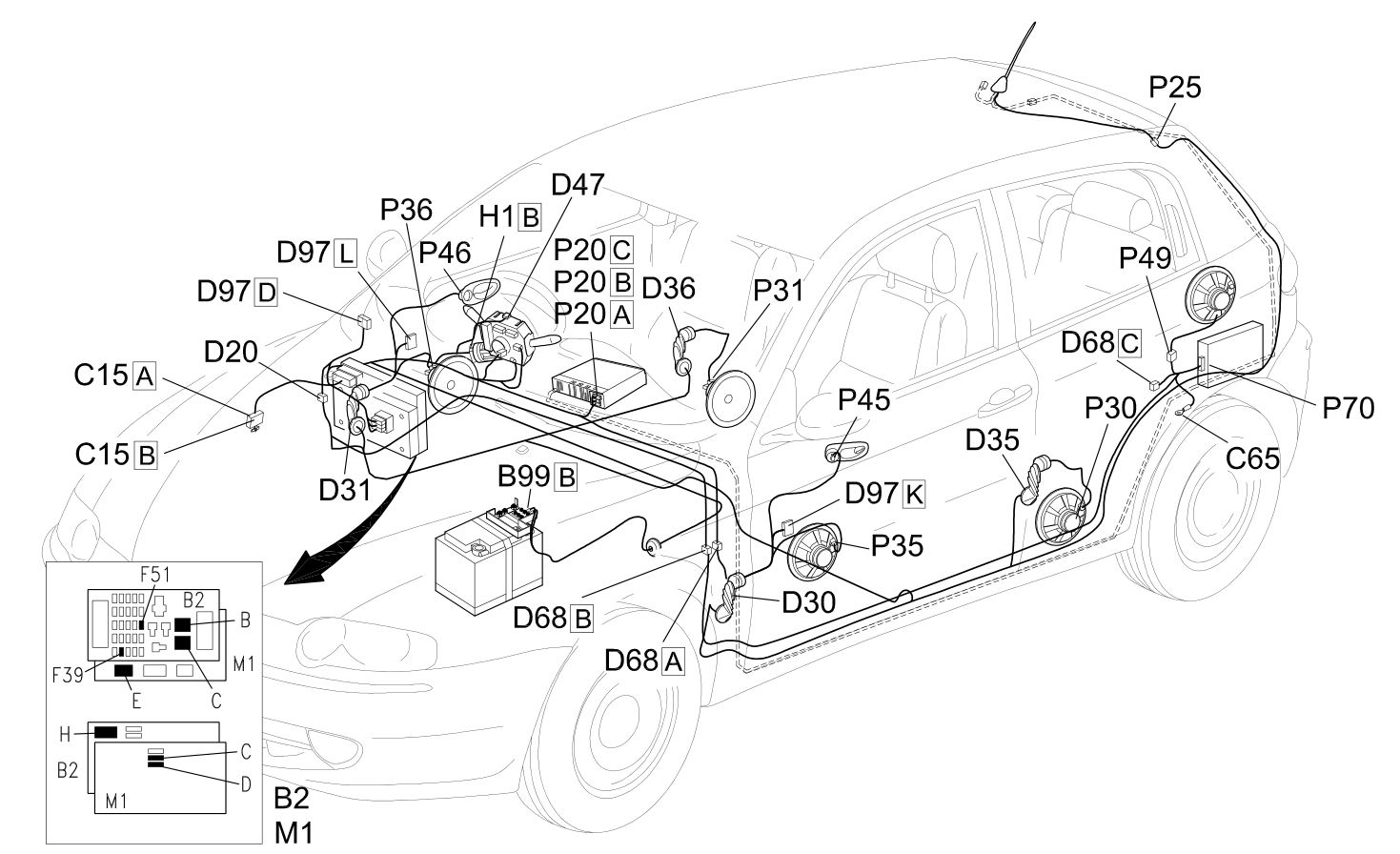

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
04/01 to 06/02, up to 03/01 · BOSE system

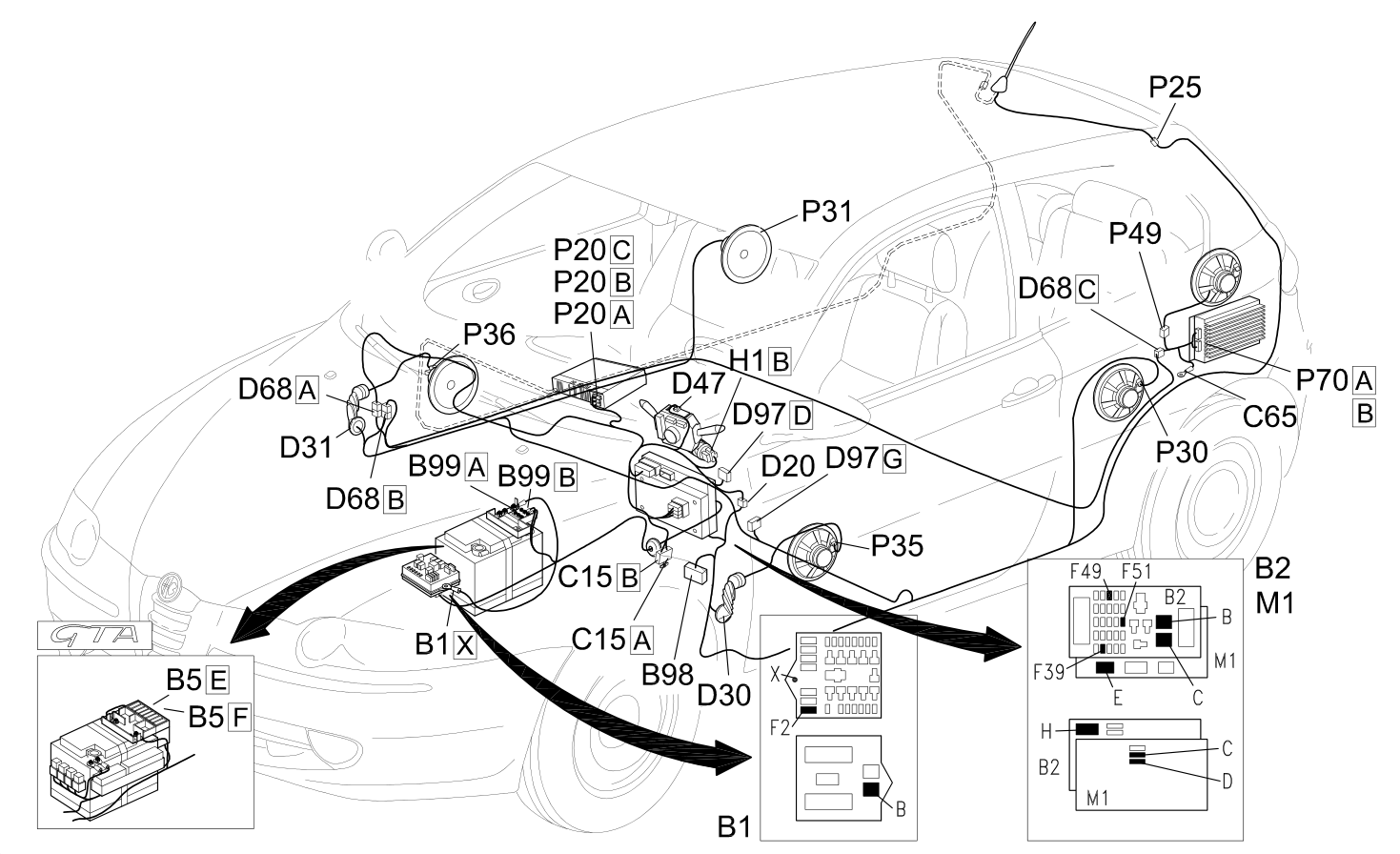

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
04/01 to 06/02, up to 03/01 · BOSE system, Right-hand drive

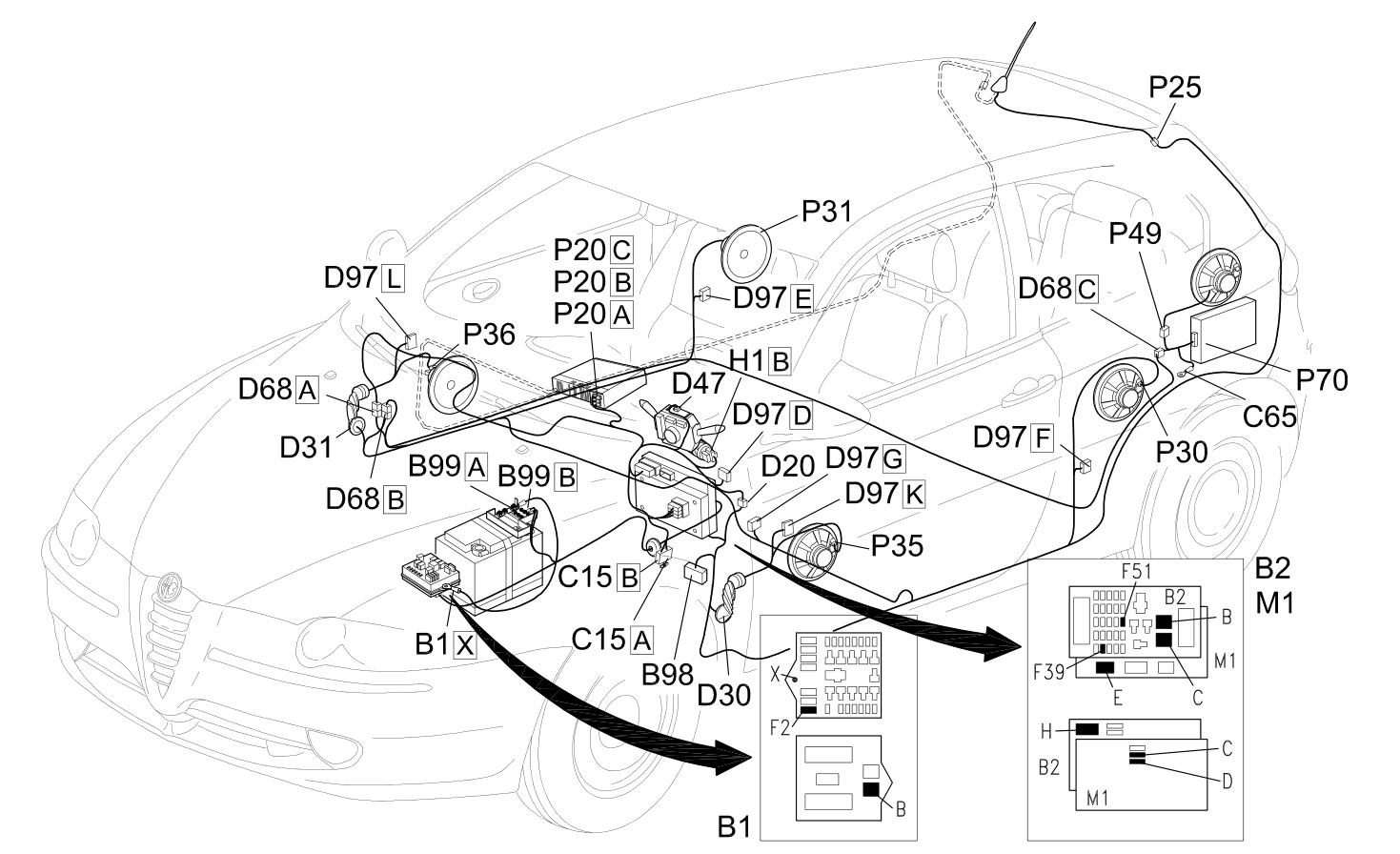

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 3-door

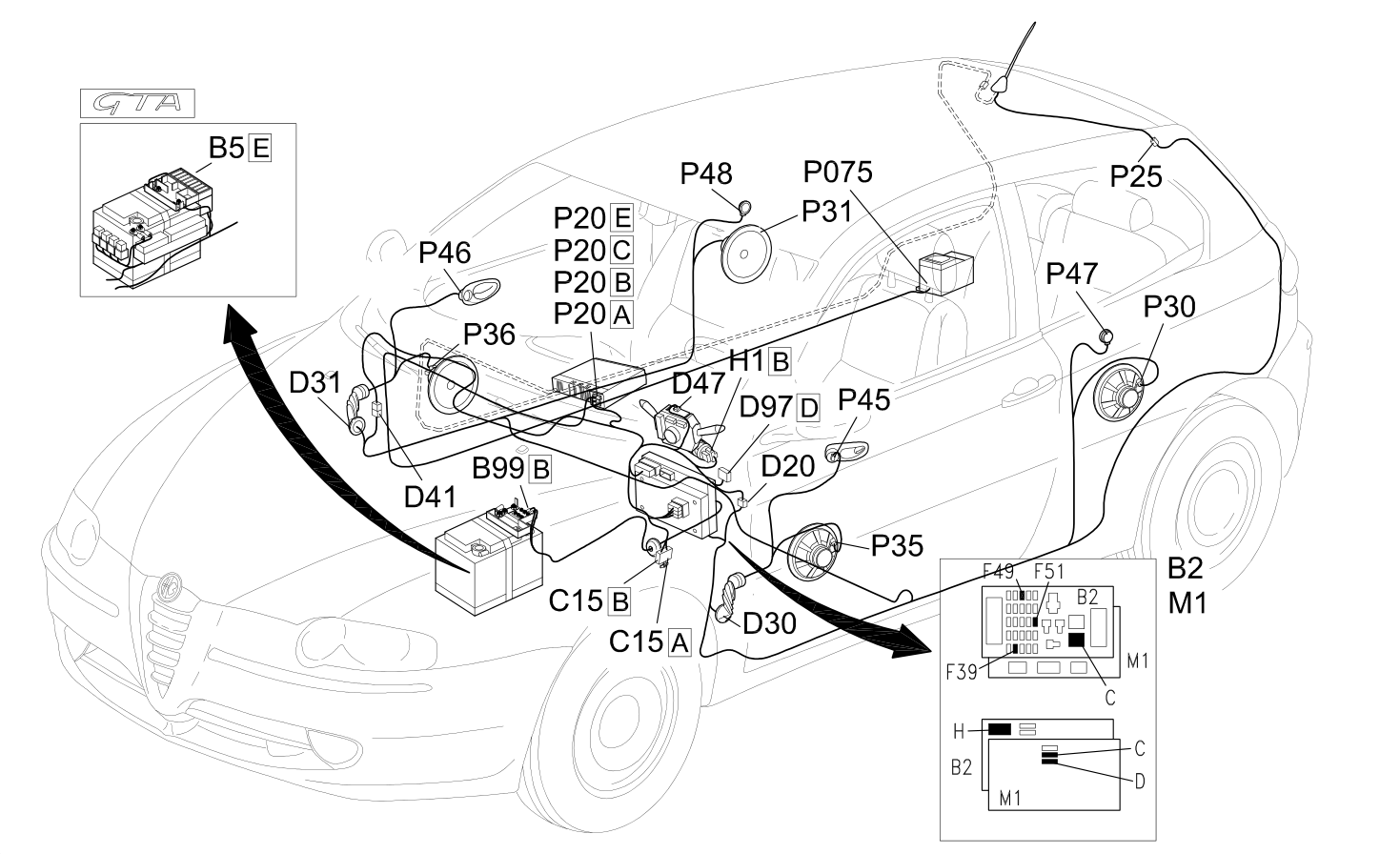

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

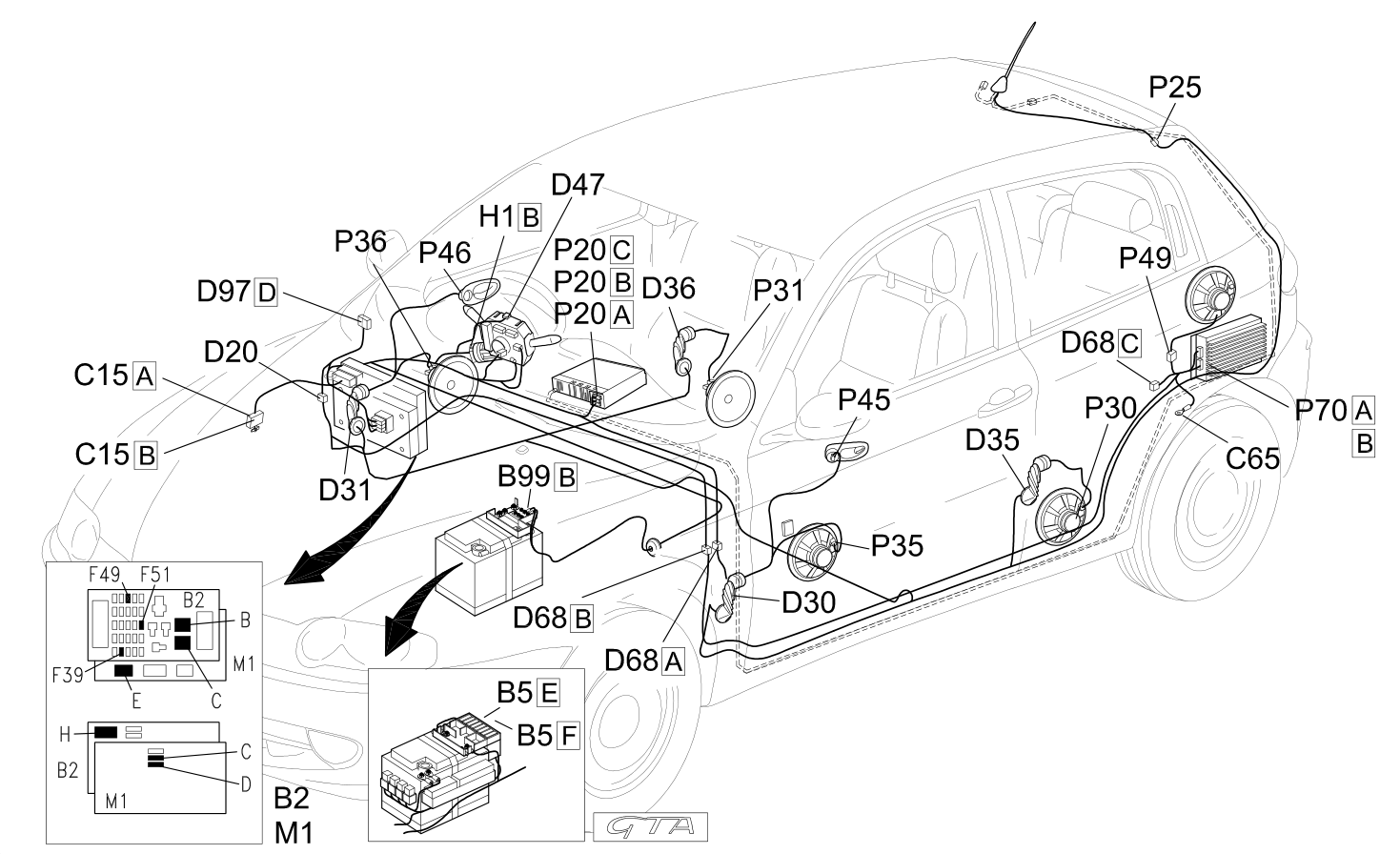

from 02/04 · BOSE system
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

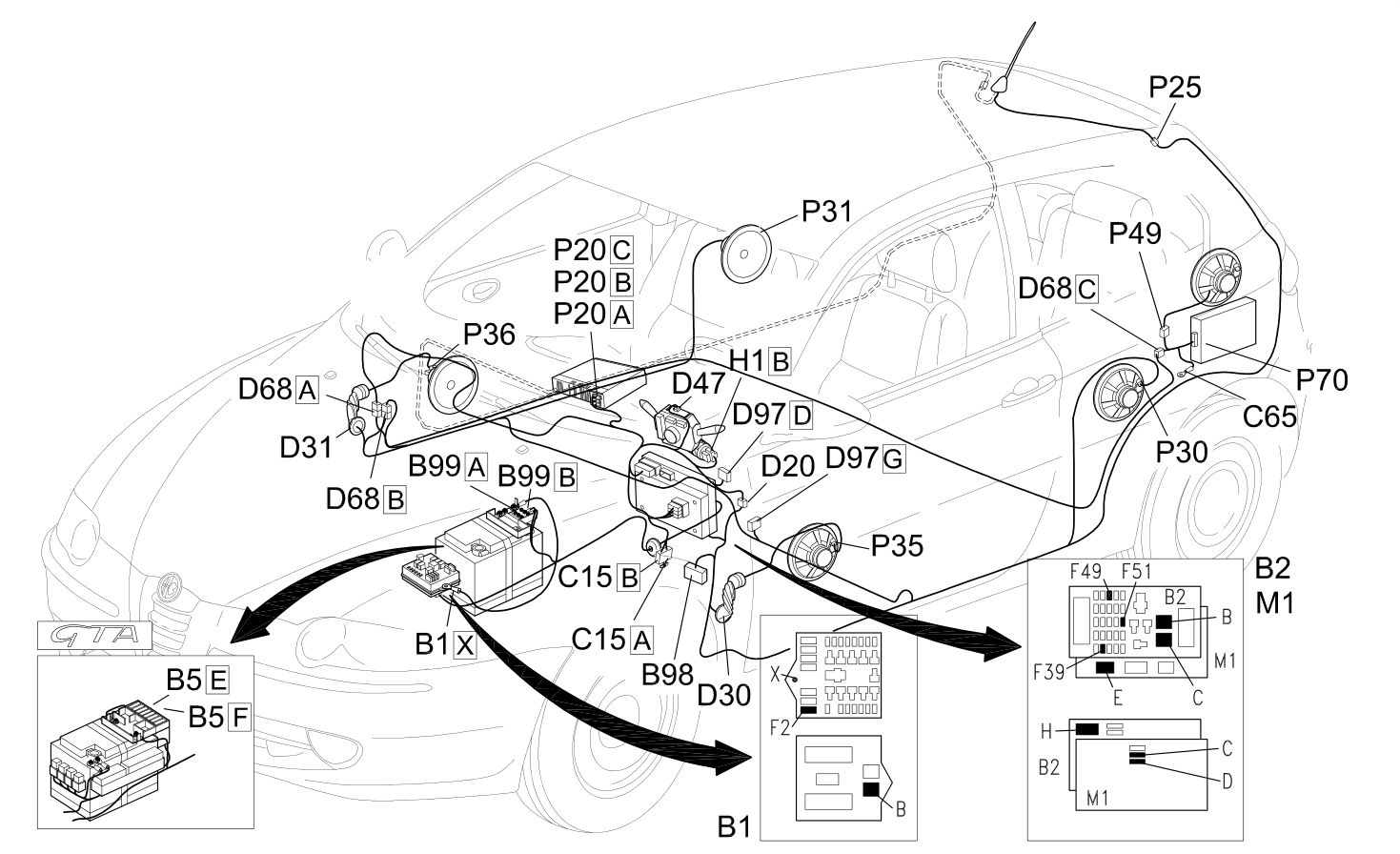

from 02/04 · BOSE system, Right-hand drive
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

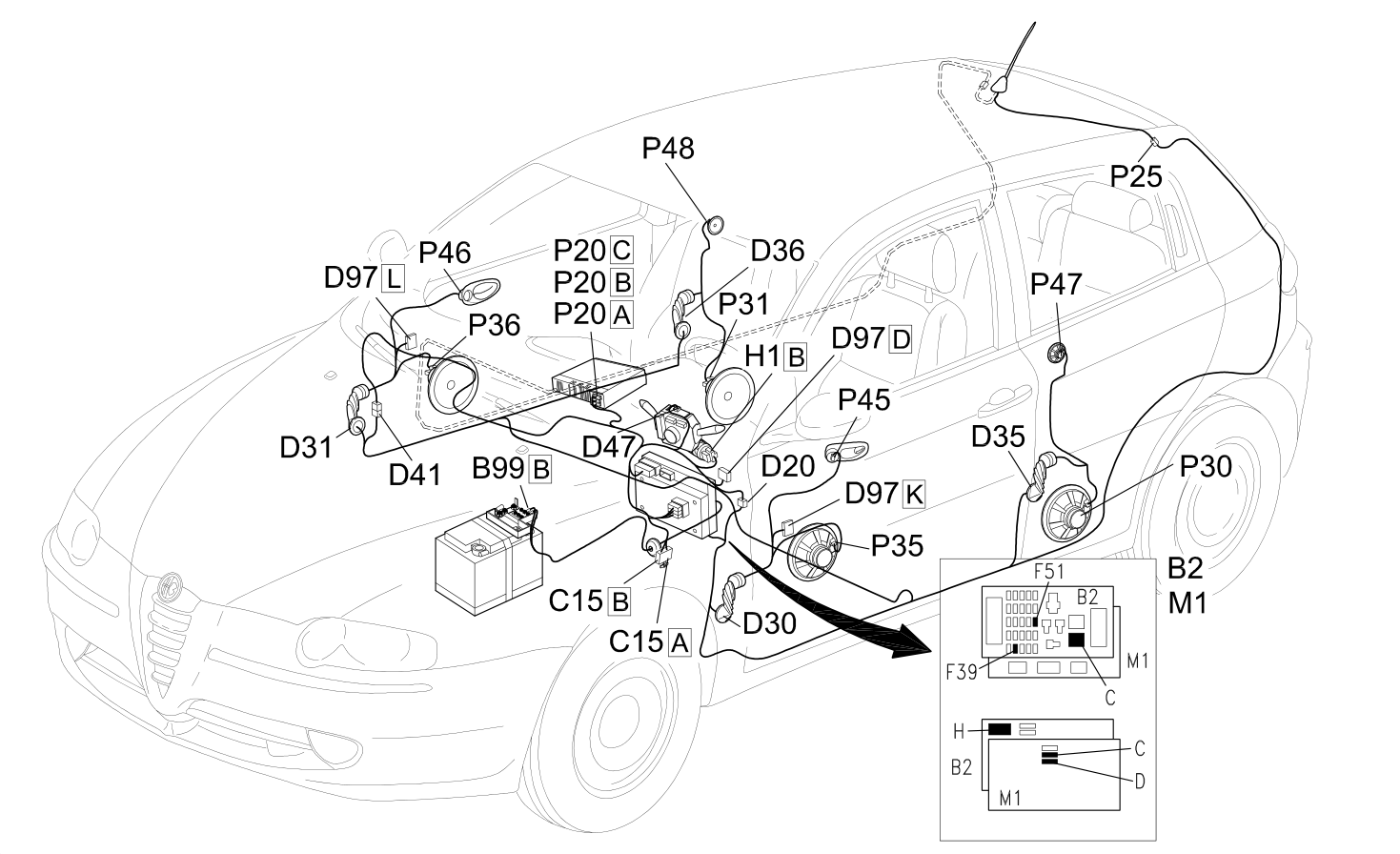

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 5-door
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 3-door, Right-hand drive

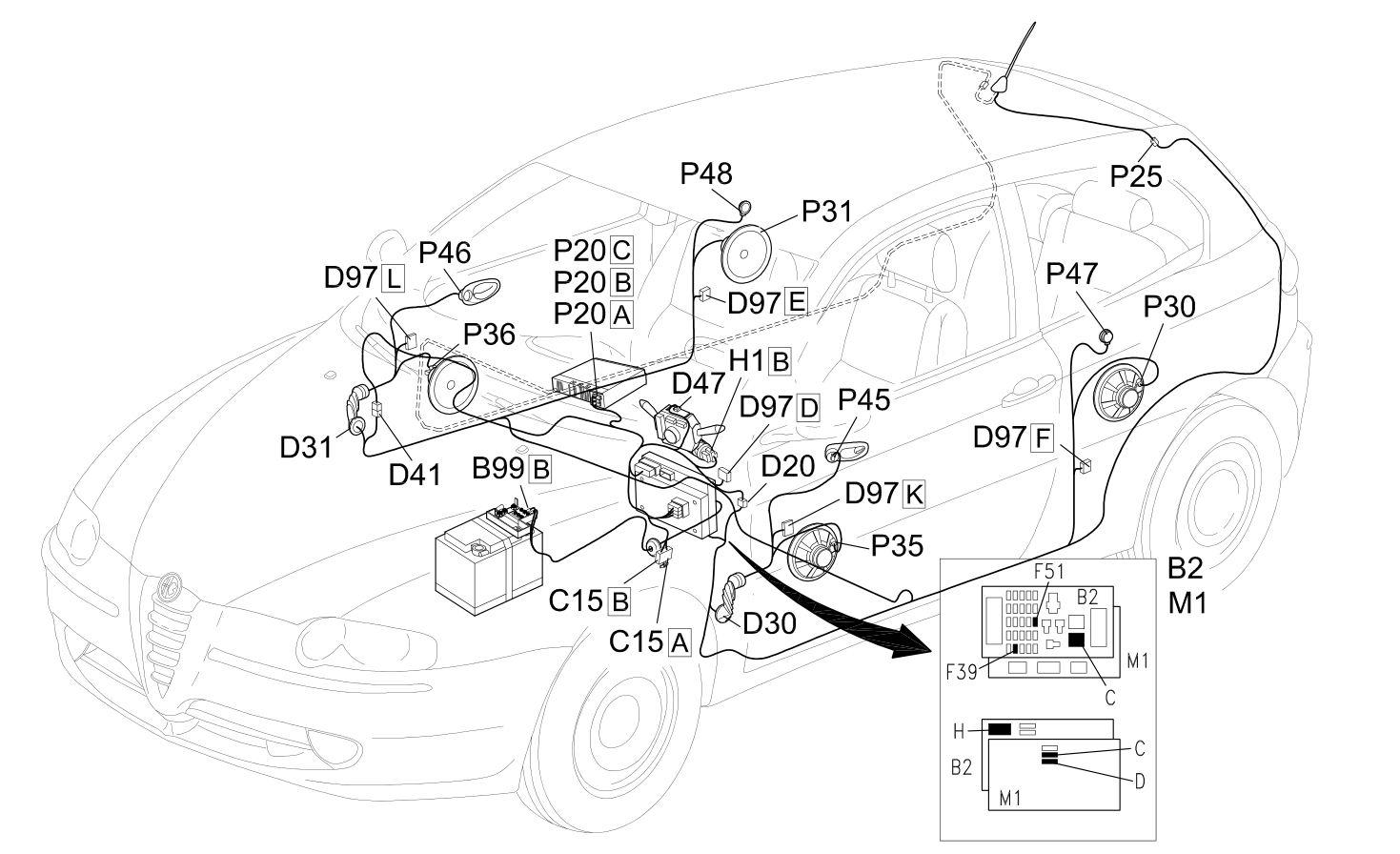

Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

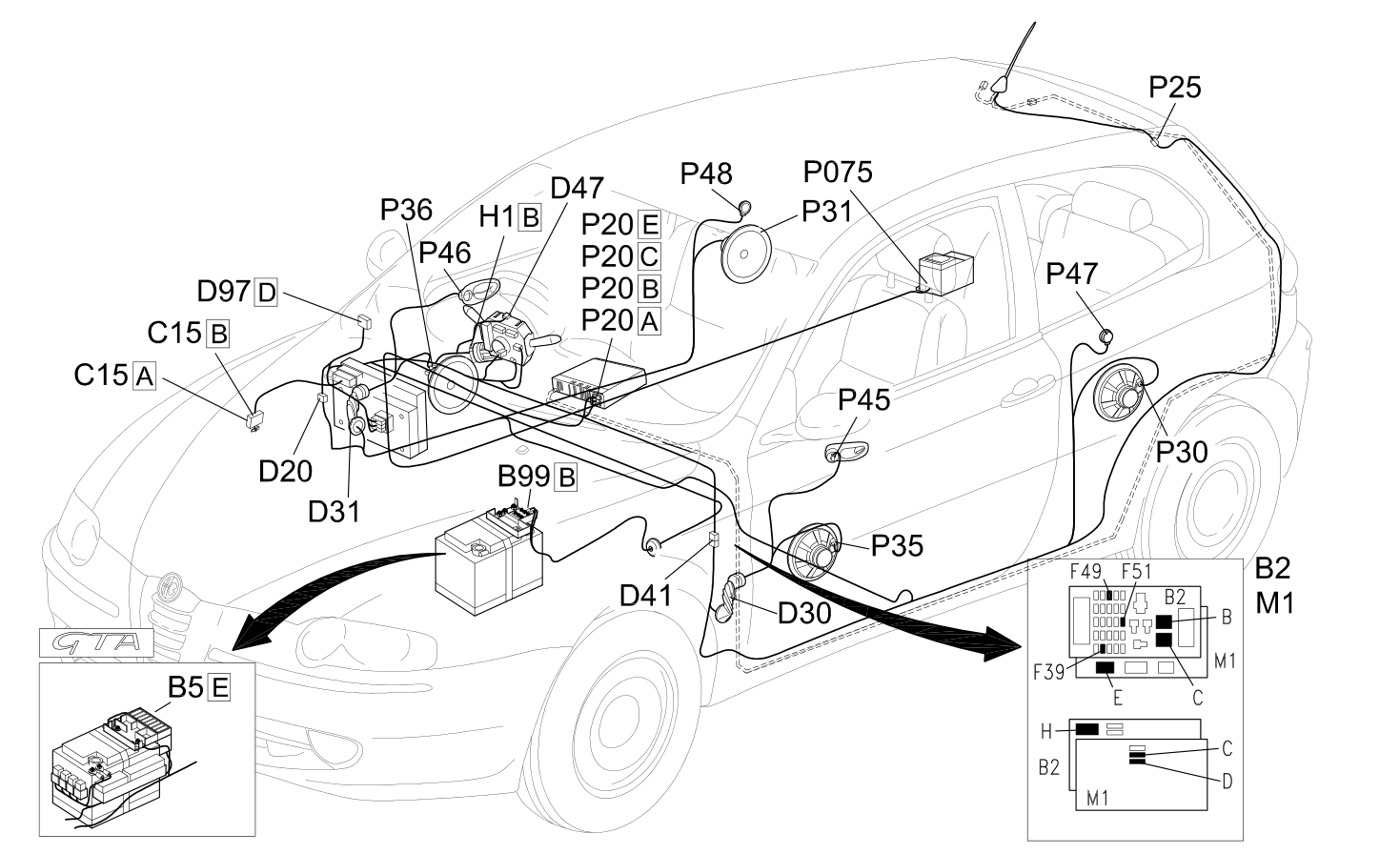

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04, from 02/04 · 5-door, Right-hand drive
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T

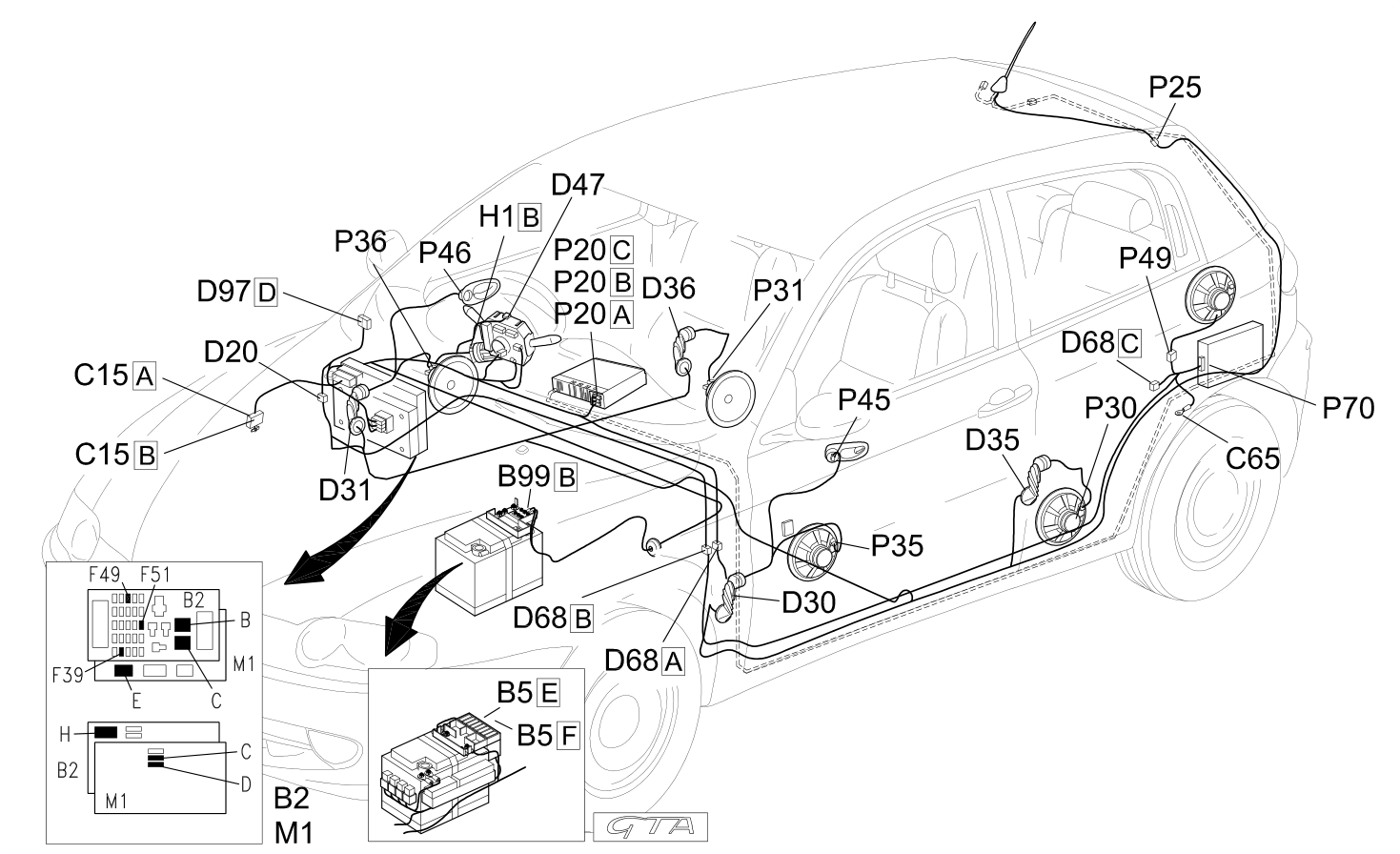

03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04 · BOSE system
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
03/03 to 09/03, 07/02 to 02/03, 10/03 to 01/04 · BOSE system, Right-hand drive
Location of components
Components
Component code Name Assembly reference B1 Engine compartment junction unit B1 Engine compartment junction unit 5505A B2 Junction unit under dashboard 5505A B5 MAXI FUSE box B98 Supplementary fuse box B99 Maxifuse box on battery 5530B C15 Facia earth, driver's side C65 Bose system earth D20 /Rear dashboard coupling D30 Rear coupling for /front door. driver's side D31 /Front passenger door. rear coupling D41 Rear dashboard/ coupling for speakers D47 Clock spring coupling 5580C D68 Bose system coupling D97 Short circuiting coupling H1 Ignition switch 5520A M1 Body computer 5505A P20 Radio 5570T P20 Radio 5580P P25 Aerial amplifier / feeder 5570T P30 Left rear speaker 5570T P31 Right rear speaker 5570T P35 Speaker in driver's .front door 5570T P36 Speaker in front passenger door 5570T P45 Driver's front tweeter speaker 5570T P46 Front passenger side tweeter speaker 5570T P47 Rear left tweeter speaker 5570T P48 Rear right tweeter speaker 5570T P49 Rear subwoofer speaker 5580T P70 Bose radio amplifier 5580T P75 CD / multi-player 5570T
