12 Climate controlA/C Unit

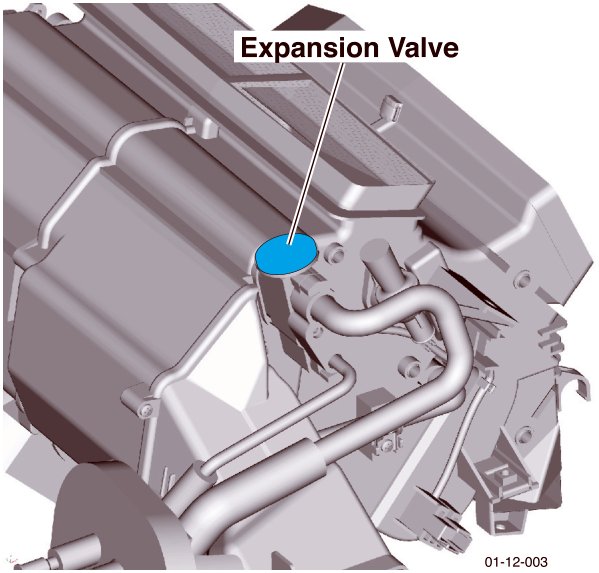

Diagram of the expansion valve located on the A/C unit

The expansion valve is located on the outside of the A/C unit and comprises of a diaphragm, connected by a capillary tube to a temperature sensing bulb, which regulates the valve according to temperature variations at the evaporator outlet pipe. This component is not serviceable.

A/C Unit

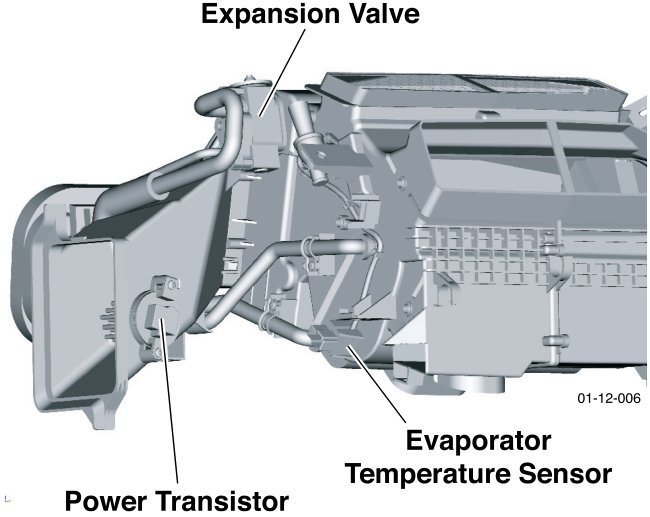

Diagram of the A/C unit showing the expansion valve, power transistor, and evaporator temperature sensor

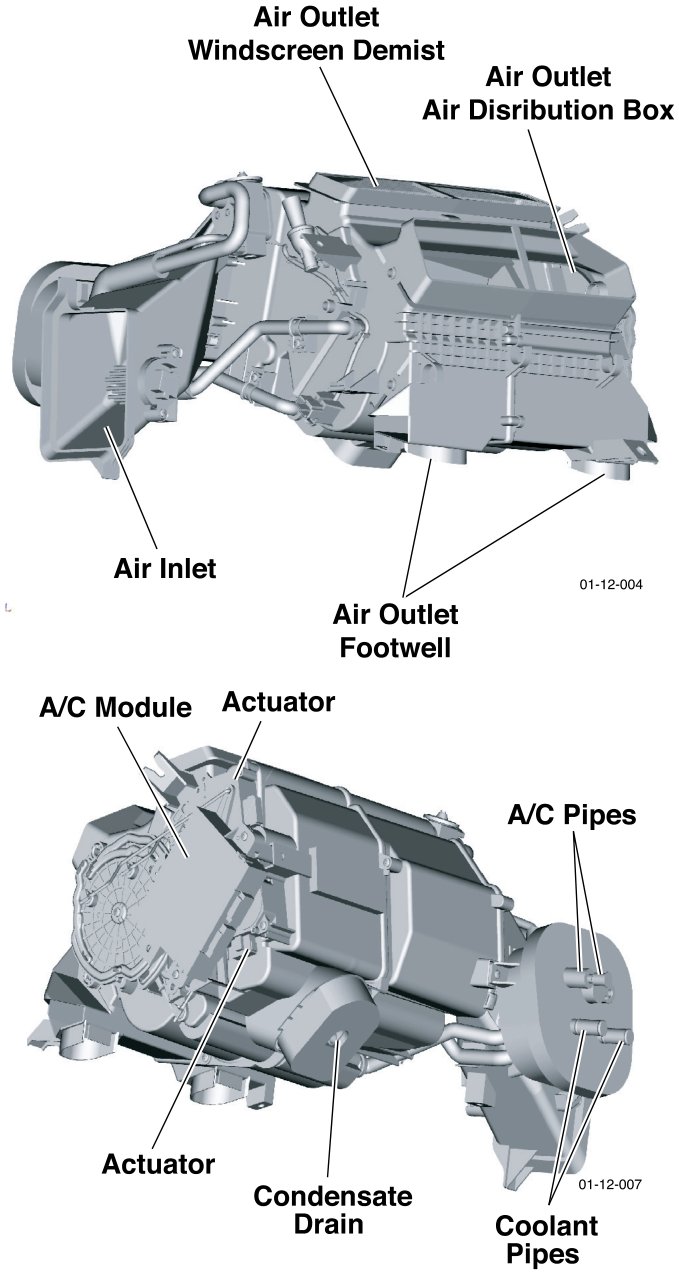

Diagram of the A/C unit showing air outlets, air inlet, A/C module, actuators, condensate drain, and coolant pipes

The A/C unit houses the evaporator, heater matrix and air flow flaps.

The unit also incorporates two servo motor operated air distribution flaps.

  1. Regulates airflow to the cabin vents.
  2. Regulates airflow to the defrost / demist air ducting.

When the cabin air flap is open, air is ducted to the cabin via face and foot level air vents.

Condensate (water) which forms on the evaporator fins is drained out of the unit case through a drain hose, located at underneath / rear of the evaporator.
