Aston Martin DB9 Factory Workshop Manual (Issue 2, 2005)13 · 12 Climate control
13 · Heating & A/C

Removal

Make
Aston Martin
Model
DB9 Factory Workshop Manual
Year
Issue 2, 2005
Section
Air Conditioning (A/C) System › Removal
12 Climate controlRemoval
Repair Operation Time (ROT)
ItemCode
A/C Unit Renew12.03.EB

Removal

  1. Connect the WDS and record any logged fault codes in the A/C system.
  2. Disconnect the vehicle battery.
  3. Recover the refrigerant from the A/C system (Refer to 'Recovery', page 12-3-8).
  4. Drain the engine coolant.
  5. Remove the IP (Refer to 'Instrument Panel (IP) (01.12)', page 1-9-1).
  6. Remove the blower unit.
    1. Disconnect the wiring harness plugs (x2).
Blower unit with callout lines pointing to bolts and a wiring harness plug

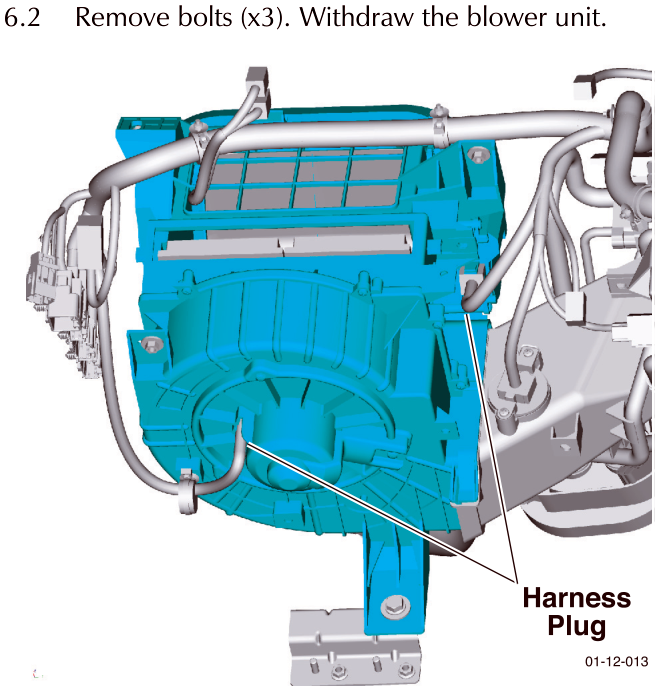

Remove bolts (x3). Withdraw the blower unit.

A/C unit assembly with callout lines pointing to bolts at the top and bottom
  1. Disconnect the wiring harness plugs (x3).

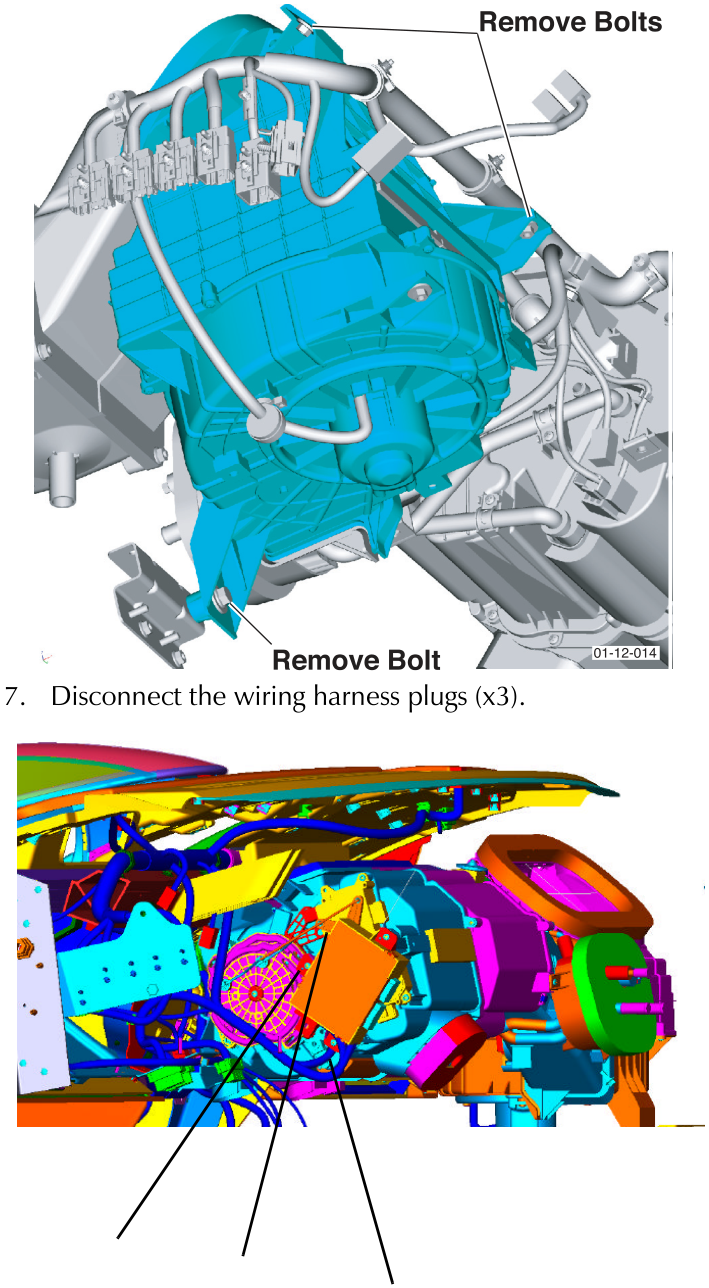

  2. Remove bolt (x1) and nuts (x2). Withdraw the A/C unit.

Image to Follow
