Installation

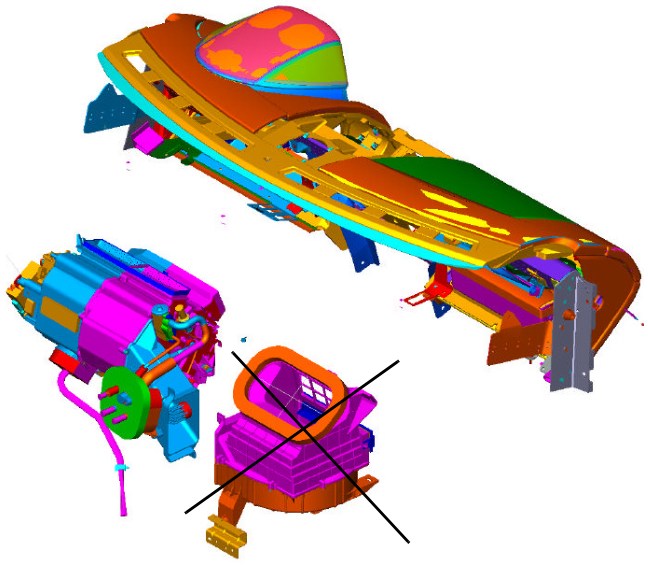

9. Unlatch the A/C unit from the defrost air duct (Push the A/C unit up into the IP). Withdraw the A/C unit.

Installation

1. Install the A/C unit to the IP. Torque bolts to 5.5 Nm.

Ensure the A/C unit interlocks with the defrost duct.

2. Install the blower unit to the IP. Torque bolts to 5.5 Nm.
3. Connect the wiring harness plugs.
   • (x3) to the A/C unit
   • (x2) to the blower unit
4. Install the IP (Refer to 'Instrument Panel (IP) (01.12)', page 1-9-1).
5. Recharge the A/C system (Refer to 'Charging', page 12-3-8).
6. Fill the engine coolant system (Refer to 'Cooling System (03.03)', page 3-4-1).
7. Connect the vehicle battery.
8. Start the engine. Allow the cooling system to come to normal operating temperature.
9. Carry out A/C system actuator check and functional check to ensure correct operation (Refer to 'A/C System Testing', page 12-3-9).

Heater Matrix

Remove

1. Connect the WDS and record any logged fault codes in the A/C system (Refer to 'Appendix & Glossary', page 20-1-2).
2. Disconnect the vehicle battery.
3. Recover the refrigerant from the A/C system (Refer to 'Recovery', page 12-3-8).
4. Drain the engine coolant (Refer to 'Cooling System (03.03)', page 3-4-1).
5. Remove the IP (Refer to 'Instrument Panel (IP) (01.12)', page 1-9-1).
6. Remove the blower unit assembly.

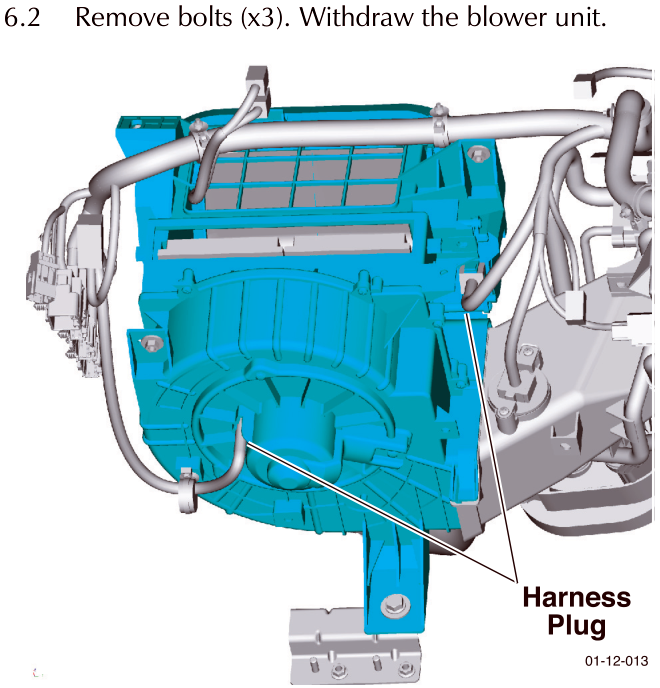

1. Disconnect the wiring harness plug (x1).

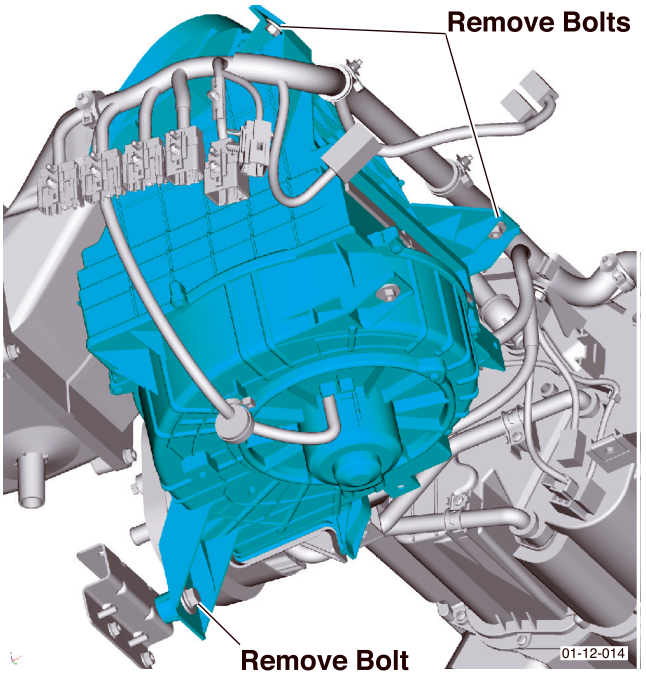

Remove bolts (x3). Withdraw the blower unit.
