ADHESIVE STRIPE ON BONNET LID - R.R.

Operation 7055C23 · ADHESIVE TRIMS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

The stickers should be removed and fitted at ambient temperature and the bodywork should be cleaned first.

1. Heat the sticker with a hot air blower.

- Remove the sticker heated previously.

- Repeat the operation several times for all the stickers.

- Clean the residual adhesive using the special product - 3m Cleaner Spray.

Refitting

- Clean the area where the sticker will be fitted using a cloth.

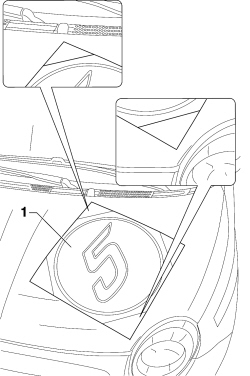

1. Position the sticker aligning the top black corner with the windscreen washer jet and the bottom one with the corner of the headlight housing in the bonnet.

1. Remove the lower protective film for the top corner then rest the sticker on the bonnet.

1. Remove the lower protective film completely.

1. Extend the sticker and keep it raised with the help of a second mechanic.

1. With the help of the buffer stick the sticker working gently from the middle towards the outside.

1. With the help of the buffer, gently stick the outer part of the sticker.

1. Remove the upper protective film for the sticker.

handle the stickers carefully: check for stretching, distortions or breaks.

- With the help of the special buffer, stretch all the stickers.

If there are bubbles in the stickers are they have been fitted, pierce them using a needle and stretch them again over the surrounding area using the special spatula.

Keep the vehicle under cover for at least one hour after fitting the stickers.

Avoid washing the vehicle for 24 hours after the stickers have been fitted.
