RIGHT FRONT WHEEL ARCH LINER - R.R.

Operation 7055B91 · EXTERIOR PROTECTIONS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

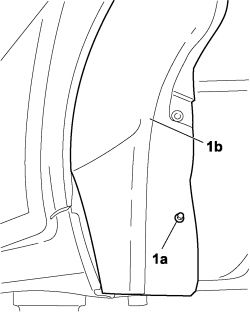

1. Undo retaining bolt (1a) and remove wheel compartment (1b) from its housing.

Refitting

- Place the wheel compartment in position and tighten the retaining bolt.

Op. 7055B66 ENGINE COMPARTMENT DUST COVER IN RIGHT FRONT WHEEL ARCH - R.R.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL - R.R

- Remove the vehicle from the lift.
