LEFT FRONT WHEEL ARCH LINER - R.R.

Operation 7055B90 · EXTERIOR PROTECTIONS

1.2 8v, 1.3 Multijet, 1.4 16v

Removing

- Position the vehicle on a lift.

Op. 4450B02 LEFT FRONT WHEEL - R.R

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

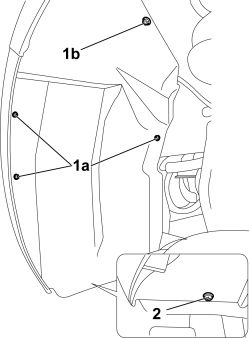

1. Undo the bolts (1a) and the nut (1b) securing the front wheel arch.

2. Undo the lower bolt securing the front wheel arch.

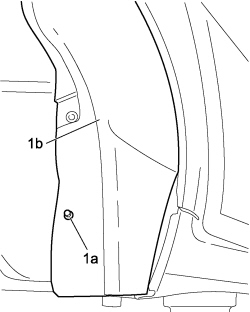

1. Undo the bolts (1a) and remove the wheel arch (1b) from its housing.

Refitting

- Position the wheel arch and tighten the bolts and the nut.

Op. 4410D22 BRACKET FIXING FRONT SUSPENSION CROSSMEMBER TO BODYSHELL (ONE), LEFT OR RIGHT - R.R.

Op. 4450B02 LEFT FRONT WHEEL - R.R

- Remove the vehicle from the lift.
