Vacuum air circuit

Make

Fiat

Model

500 Factory Service Manual

Year

2007–2024

Section

Engine air supply circuit › Vacuum air circuit

EngineVacuum air circuit

VACUUM AIR CIRCUIT

Description 1048A

1.4 16v

SPECIFICATIONS

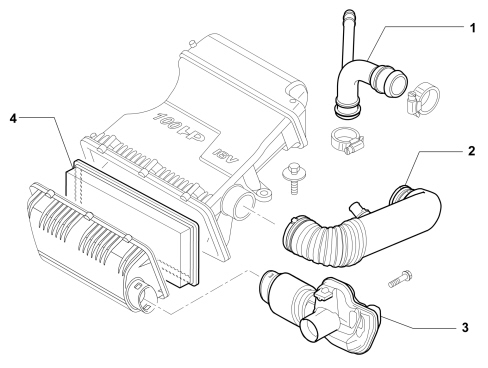

The air intake circuit is made up of various components that ensure the correct amount of air is conveyed to the engine under its various service conditions.

1. Gas intake from the engine block (blow-by)

See descriptions 1080 EMISSION CONTROL SYSTEM

2. Rigid pipe sending air to throttle body

3. Inlet vent with resonator

4. Filter element

5. Air filter assembly

08 Engine
