TURBOCHARGER AIR INTAKE PIPE - R.R.

Operation 1048A50 · VACUUM AIR CIRCUIT

1.3 Multijet

Removing

Op. 5530B10 BATTERY - R+R

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

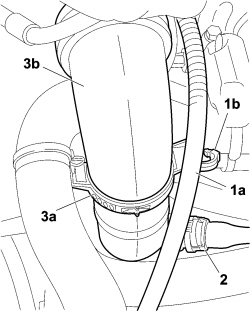

1. Release the electrical wiring for the heater plugs (1a) from the retaining clip (1b).

- Place the electrical wiring for the heater plugs to one side.

2. Disconnect the oil vapour recovery pipe, turbocharger air inlet pipe side.

3. Open the collar (3a) and disconnect the turbocharger air inlet pipe (3b), turbocharger side, removing the retaining band.

- Remove the turbocharger air intake pipe from its housing.

Refitting

- Fit the turbocharger air inlet pipe in place and connect it to the turbocharger securing it using the retaining band.

- Secure the turbocharger air inlet pipe to the retaining collar.

- Connect the oil vapour recovery pipe.

- Position the heater plugs electrical wiring and secure it to the retaining clip.

Op. 1048A23 COLD AIR INTAKE FOR AIR FILTER - R.R

Op. 1048A10 AIR FILTER ASSEMBLY - R.R.

Op. 5530B52 BATTERY SUPPORT/DRIP TRAY - R.R

Op. 5530B10 BATTERY - R+R
