WASTE GATE SUPERCHARGING PRESSURE ADJUSTMENT SOLENOID VALVE - R.R.

Operation 1064B38 · CONTROL/SAFETY DEVICES

1.3 Multijet

Removing

- Disconnect the negative battery terminal.

1. Disconnect the electrical connection for the turbocharging adjustment solenoid valve.

2. Undo the nut securing the bracket to battery drip-tray.

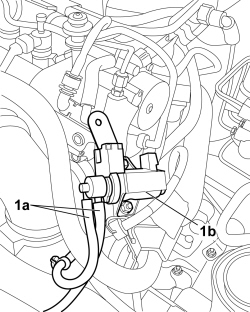

1. Disconnect air pipes (1a) and remove solenoid (1b).

- At the bench, tighten the main bolts and separate the turbocharging pressure adjustment solenoid mounting bracket.

Refitting

- At the bench, fit the turbocharging pressure adjustment solenoid on the mounting bracket and tighten the main bolts.

- Connect the vacuum air pipes to the solenoid.

- Fit the solenoid bracket on the battery drip-tray and tighten the nut.

1. Connect the electrical connection for the turbocharging adjustment solenoid valve.

- Connect the negative battery terminal.
