INTRODUCTION - EXHAUST PIPES AND SILENCERS

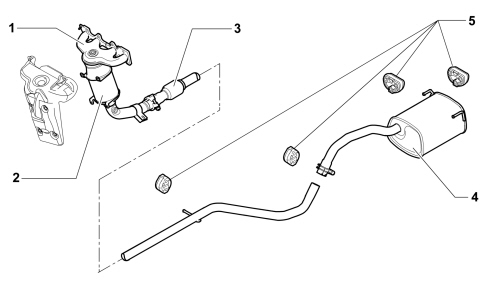

1.2 8v

The engine exhaust gases flow through manifold (1) to three-way catalytic converter (2) (see 1080).

There is a flexible element (3) in the central section of the exhaust pipe to restrict the transmission of vibrations.

The rear exhaust pipe section consists of a silencer (4).

Special guards prevent heat radiating toward the body.

The various components are supported by mountings and flexible rings (5) secured to the underbody.

1.4 16v

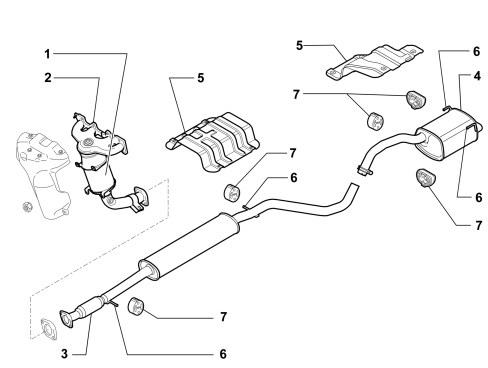

CONSTRUCTION SPECIFICATIONS

The engine exhaust gases flow through manifold (1) to three-way catalytic converter (2) (see 1080) to which it is connected via the exhaust pipe flange.

There is a flexible element (3) in the front section of the exhaust pipe to restrict the transmission of vibrations.

The rear exhaust pipe section consists of a silencer (4).

Special protections (5) limit heat radiation to the body.

The various components are supported by means of mounts (6) and retaining rings (7) fastened to the underbody.
