R.R FRONT CROSSMEMBER

Operation 7210A18 · STRUCTURAL ELEMENTS (FRONT PART)

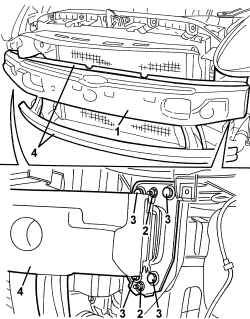

Removing

Op. 7210E10 R.R. FRONT BUMPER

1. If necessary, remove the front buffer releasing the retainers.

2. Undo the nuts fixing the crossmember to the front end.

3. Undo the bolts fixing the crossmember to the bodyshell.

4. Remove the sacrificial crossmember.

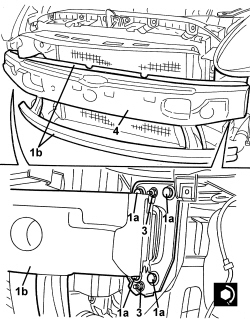

Refitting

- Check that the crossmember is not damaged.

1. Screw in the bolts (1a) fixing the crossmember (1b) to the bodyshell and tighten them to the recommended torque.

2. Tighten the nuts fixing the crossmember to the front end.

3. If removed, position the front buffer and attach the retainers.

Op. 7210E10 R.R. FRONT BUMPER
