R.R. FRONT WING MOUNTING BRACKET

Operation 7210A30 · STRUCTURAL ELEMENTS (FRONT PART)

Removing

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

- Or, alternatively

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7210E10 R.R. FRONT BUMPER

- Raise the bonnet lid.

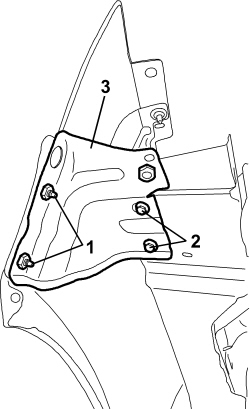

1. Undo the retaining nuts.

2. Undo the retaining bolts.

3. Remove the bracket.

Refitting

- Check that the bracket is not damaged.

- Position the bracket correctly and secure it using the bolts and the nuts.

- Close the bonnet.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.
