R.R. FRONT SIDE DOOR

Operation 7210E36 · EXTERNAL PARTS

Removing

- Lower the front window to the end of travel position (to protect it).

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

1. Release the electrical connections (1a) and (1b) from the retainer (1c).

2. Disconnect the electrical connections (1a) and (1b).

3. Remove the seal (3a) passing the wiring (3b) through the cut (3c).

4. Pass the wiring (3b) and the electrical half connections (1a) and (1b) through the opening in the bodyshell until the door can be removed.

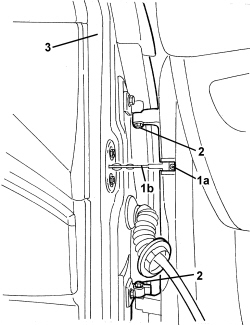

1. Undo the bolts (1a) fixing the limiter link (1b) to the body, then close the door momentarily so that the link is inside.

2. Undo the bolts for the hinges.

3. Lift up the door and remove it.

Refitting

- Check that the door is not damaged.

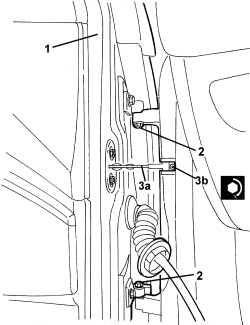

1. Place the door on the hinges.

2. Tighten the bolts for the hinges to the recommended torque.

3. Pull out the limiter (3a) out and tighten the bolt (3b) to the recommended torque.

- Pass the wiring and the door electrical connection through the opening in the bodyshell, then connect the electrical connections.

- Fit the seal passing the wiring through the cut.

- Attach the door electrical connections to the retainer.

Op. 7040L40 FRONT DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

- Check that the various consumers on the door are working.

- Check the door alignment and, if necessary, make out the following adjustments.

Op. 7005A10 FRONT SIDE DOOR - ADJUST STRIKER AND ADAPT SEAL IF NECESSARY

Op. 7005A14 FRONT SIDE DOOR - ADJUST CENTERING AND MOULDING - INCLUDES ADAPTATION OF HINGES AND SEALS ON DOOR COMPARTMENT
