Body panels and frameRear spoiler - r.r.
REAR SPOILER - R.R.
Removing
Op. 7015A05 TAILGATE LOWER INTERIOR PANEL-R R
Op. 7015A06 TAILGATE UPPER INTERIOR PANEL - R.R.

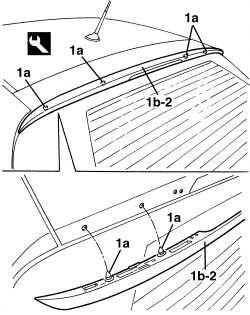

1. Working on the inside of the tailgate, undo the bolts (1a) securing the spoiler.
- Lower the tailgate.
1. Release the retainers (1a) from the spoiler (1b) using the special tool.
| Tool | Description | Function | Validity |
|---|---|---|---|
| 1823015000 | Knife | Retainer removal |
2. Keep the spoiler.
Refitting
- Check that the spoiler is not damaged.
- Position the spoiler and attach the retainers.
- Open the tailgate.
- Working on the inside of the tailgate, tighten the bolts securing the spoiler.
