R.R REAR CROSSMEMBER

Operation 7210B82 · STRUCTURAL ELEMENTS (CENTRE AND REAR SECTION)

Removing

Op. 4450B06 LEFT REAR WHEEL - R.R

Op. 4450B08 RIGHT REAR WHEEL - R.R

Op. 7210E66 R.R. REAR BUMPER

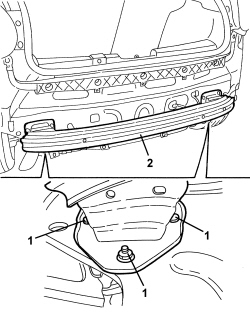

1. Undo the nuts fixing the crossmember to the bodyshell.

2. Remove the sacrificial crossmember.

Refitting

1. Check that the crossmember is not damaged.

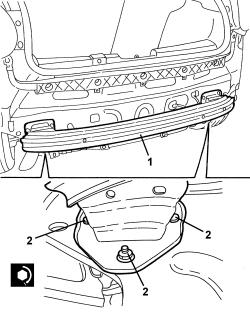

2. Screw in the nuts fixing the crossmember to the bodyshell and tighten them to the recommended torque.

Component	Fastening	dia	Value (daNm)	Validity
Rear crossmember	Nut	M8	2.3 ÷ 2.7
