CONNECT NAV +

General specifications

The CONNECT Nav+ controls and provides information for the following systems and functions:

- Navigation based on GPS (Global Positioning System);

- Audio with RDS (Radio Data System) radio, MP3, CD and CD Changer;

- GSM telephone (Global System for Mobile Communication) with WAP capacity and SOS-call;

- Voice recognition (VR module) with voice synthesis and memorization.

The interface is the multifunction information display for all integrated components.

The colour display has a 256 TFT colour 6.5" 16/9 LCD with a resolution of 400 x 240 pixels.

Dimensions: 2DIN box with front panel

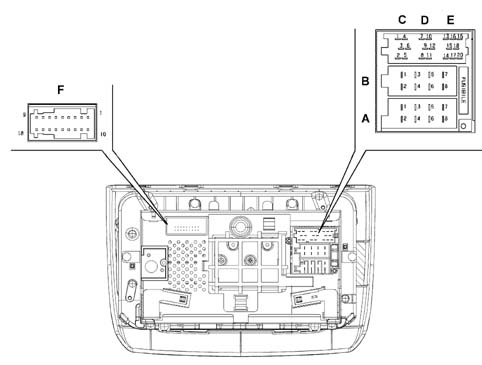

Internal modules

The system modules or the modules to which the system can be connected for obtaining information or requesting services are different.

Cd rom player

CONNECT is equipped with a CD ROM player that is able to read and manage CD ROMs and audio CDs. The Audio media may be normal commercial audio CDs or CD ROMs containing files in MP3 format (all levels). Other acceptable ROM media include official Marelli media that contain an updated copy of the CONNECT management software and also the map database required for navigation.

Cd changer

CONNECT is also designed to be connected to an external CD Changer and to accept analogue audio output.

Gsm module

The CONNECT system is equipped with a GSM Dual Band module and micro format SIM Card reader (that allows the user the insert a SIM Card). There is also an external microphone (for hands free use and voice recognition) and preparation for the connection of a hand set.

Radio - cd module

General specifications:

• Music audio power: 4x35W
• 5 band graphic equalizer
• Easy to manage menu for the adjustment of the radio settings and any external interfaces (CD-Changer)
• Remote control from the steering wheel
• Possibility of interface with external CD-Changer via ASCI-BUS line.
• Volume control according to the speed (via CAN)
• If a voice recognition module is fitted, several of the commands can be voice-activated.

Radio specifications:

• RDS
• RDS - TMC (Traffic Message Channel)
• EON (Enhanced Other Network)
• TA (Traffic Announcements)
• Tuning on the following bands: USW (87.5- 108 MHz) (FM), MW (153- 279 kHz) (AM), LW (531- 1602 kHz) (AM)
• Possibility of programming: 24 FM stations (including 6 stored by autostore), 6 MW stations, 6 LW stations, 6 stations that can stored by autostore on the MWST band.
• 2 scan modes (short listen to a station and automatic transfer to the next): Scan on the frequency band used; Scan of stored stations.
• Possibility of selecting programmes via PTY (on FM bands only).
• Local/Distant setting.

Audio specifications:

• Bass
• Balance
• Fader
• Loudness
• Treble
• HI-FI system active control
• 5 equalizing curves: BEST (manufacturer''s equalizing data) Rock, Jazz, Classical, MANUAL (can be set using 5 band graphic equalizer)
• Soft mute.

CD specifications:

• Motorized loading and ejection
• TPM function (Track Program Memory)
• Shuffle function
• Repeat
• Skip
• Pause
• Compression: activates the CD noise dynamic reduction circuit
• CD Naming: CD identification (max 30, including CDC).

MP3 CD specifications:

• Play List function (such as TPM for Audio CD)
• Functions associated with the Play List: Scan, Repeat (one or all tracks), Pause, Skip
• Maximum number of MP3 tracks considered for each CD: 999 (if the number of MP3 files contained in the CD ROM is higher than this limit, only the first 999 will be considered).
• Compression: activates the CD noise dynamic reduction circuit

CD Changer specifications

• Scan function
• Repeat track or entire cartridge function
• Shuffle CD or shuffle all function (one CD or all CDs)
• CD Naming:
• Compression: activates the CD noise dynamic reduction circuit
• Management of controls from steering wheel
• The audio module can be managed by the buttons on the steering wheel.

Management of controls from steering wheel

• The audio module can be managed by the buttons on the steering wheel.

System activation

The CONNECT system may be activated in two different modes:

• Automatic activation with key inserted
• Manual activation by means of ON button
• Emergency manual activation by means of SOS button

Automatic activation

With the key inserted, the CONNECT system comes on automatically ensuring that all the functions described in this chapter either are or can be activated.

Manual activation

Even if the key is not inserted, the CONNECT system comes on when the ON button is pressed to make the following modes available:

• MAIN
• AUDIO
• NAVIGATION

• TELEPHONE

  MAP

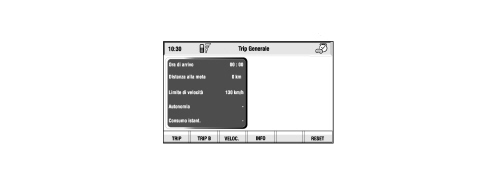

  TRIP

  MYCAR (setup)

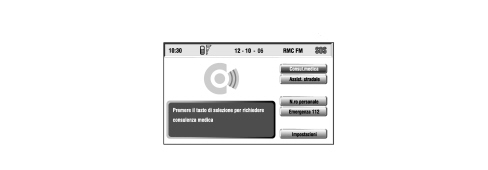

• SOS and SERVICE (bCONNECT)

In this mode, the SETUP and TRIP modules can be activated but it is not possible to validate any parameter change, language change or measurement unit change or any other type of adjustment envisaged by the CONNECT system. These limitations are normal when the system is activated by means of the ON button. When the vehicle is not running, the data transmission devices inside the vehicle are not operational. The system starts to work when the key is inserted.

System deactivation

The CONNECT system may be activated in two different modes:

• switching off independent of the key
• switching off dependent on the key

To choose the deactivation mode, see the Power OFF submenu in the SETUP menu.

Switching off independent of the key

When this mode is active, the CONNECT system may be turned off by pressing the ON button.

The display shows the message DEACTIVATION PROCEDURE IN PROGRESS, WAIT A FEW MOMENTS.

With the key extracted, the system deactivates with a delay of 20 minutes if a system destination has been set or if a phone conversation is in progress.

Switching off dependent on the key:

When this mode is active, the CONNECT system may be turned off by extracting the key.

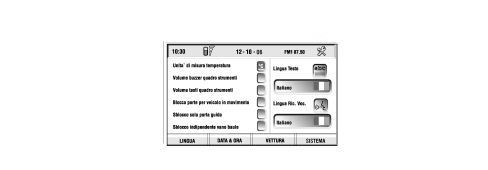

Languages available

The following languages are available for both strings of displayed text (menus) and navigation voice messages: Italian, English, French, German, Spanish and Portuguese.

The voice recognition unit language may be set independently of the menu and navigation message language. The same languages are available.

FRONT OF THE CONNECT NAV+

The aesthetic trim and the function buttons are painted with a shiny Black Metal effect, whilst the telephone keys and the CD buttons are painted in Grand Prix Grey.

The knobs are in soft touch black and embellished with a chrome ring at the front.

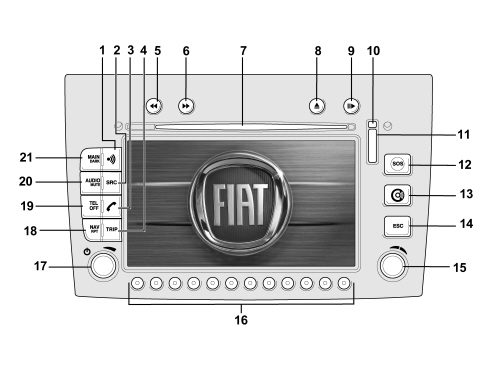

Front view

Key: pushbuttons

There are numerous buttons and two rotary selectors (a wheel and a pushbutton) on the front panel of the CONNECT.

There are also three buttons on the centre courtesy light.

Some keys perform multiple functions, according to the system operating conditions active at that time.

Activation of the selected function is controlled, in some cases, by the length of time for which the button is pressed (short or long push) as described in the following table.

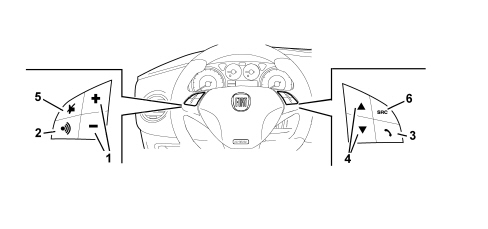

CONTROLS ON THE STEERING WHEEL

The controls for the main functions of the CONNECT are duplicated on the steering wheel for greater ease of use.

1 - + and - buttons: volume adjustment

2 - Voice recognition button (VOICE)

3 - Phone button TEL

4 - SCAN + and - buttons:

5 - MUTE function button

6 - SOURCE button

Activation of the selected function is controlled, in some cases, by the length of time for which the button is pressed (short or long push) as described in the following table.

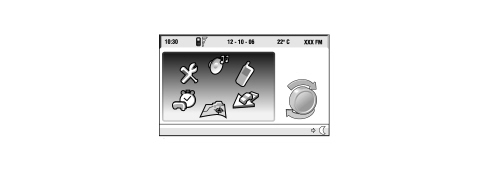

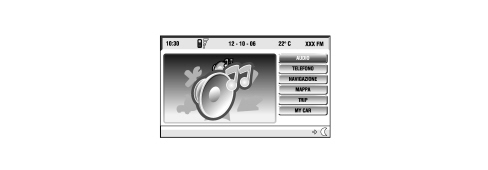

MAIN FUNCTION

The following modules become available when the system is turned on:

• AUDIO

  TELEPHONE

• NAVIGATION

  MAP

• TRIP

  MY CAR

The upper status bar displays the current time, GPS and GSM signal intensity, date (day, month, year), outdoor temperature and current operating mode (e.g. MAIN).

It is possible to select the desired module by turning the right knob and then pressing it for access to the menu.

When the system is switched off the last module activated is memorized and when it is turned back on the MAIN screen is displayed with the last module selected activated.

The lower bar has the symbol for switching the display brightness from daytime to nightime..

Code activation and recognition procedure

The Connect (NIT) includes an ANTITHEFT function that prevents it operating in the case of theft.

The NIT is installed during producition and connnected to the CAN network in order to establish communication with the Body Computer and store an antitheft code known as the Exchange Code.

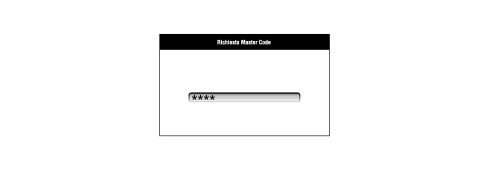

At each subsequent Key On (and even if the battery is disconnected), an automatic authentication procedure is repeated: if the Exchange Code check is positive, the system begins to operate. If the codes compared are not the same, a message appears on the display asking the user to enter a manual code (Master Code - 4-figure code from 1111 to 6666) that is shown on the radio code card.

The Master Code is pre-programmed in production and different for each NIT. It is also different from the Exchange Code.

A new NIT (never installed on other vehicles) may be fitted using an automatic authentication procedure without manual input of the Master Code.

AUDIO MODULE

Audio sources

Possible audio sources include standard sources (Radio Tuner, Audio CD/MP3 and CD Changer) whose specifications are detailed in the rest of the chapter. PTY31 Alarms (Program TYpe) and Traffic Announcements, Sources linked to other modules such as the telephone, telephone ringing, voice recognition and voice synthesis for navigation are treated as separate functions.

Standard source

One of the standard sources is activated (possibly interrupted by a Traffic Announcement). The navigation messages are available.

Phone call in progress

A telephone call is activated. If it is an incoming call, the source activated before the phonecall will be restored at the end of the conversation. The navigation messages are available.

Ringing

Sound to indicate incoming call. The navigation messages are not available.

Voice recognition

The dialogue between the recognizer and the user is activated. The navigation messages are not available.

Pty31 alarm

Due to the receipt of a PTY31 message from the tuner. The navigation messages are available.

Tuner function

FM, MW and LW tuner with RDS, EON, PTY and TP management. If a voice recognition module is fitted, several of the commands can be voice-activated.

Cd audio function

The Audio CD/MP3 source and hence the function can be selected from amongst the various audio sources on the CONNECT unit.

Various commands are available to the user through the direct buttons (front panel/steering wheel controls) and those selected from the menu on the screen If a voice recognition module is fitted, several of the commands can be voice-activated.

External cd changer management

The CD Changer source (Audio) and hence the function can be selected from amongst the various audio sources on the Connect unit. This function is only available if the CONNECT is connected to an external CD Changer of the type described previously.

Various commands are available to the user through the direct buttons (front panel/steering wheel controls) and those selected from the menu on the screen If a voice recognition module is fitted, several of the commands can be voice-activated.

Operation

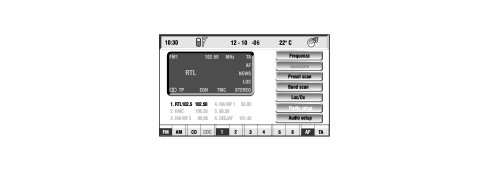

Press the AUDIO button to access the Connect Audio module screens.

Three sections appear at the left of the screen. The larger section at the top displays: the Frequency Band, the frequency and name of the radio station playing at the time and other information connected with the radio station.

The two smaller sections display the 6 radio stations stored in the 6 memory positions for each frequency band.

A menu appears at the right part of the screen where the user can make radio settings

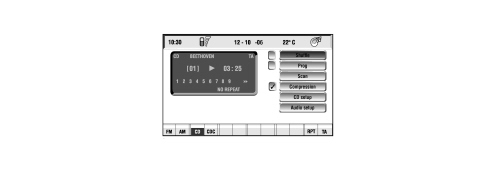

In CD or CDC mode, the menu to the right of the display will be as shown in the following figure.

The Connect systemis able to recognise the type of compact disc inserted.

During the recognition stage, the display shows the message "Reading CD... " and then the system detects whether the CD inserted contains musical tracks recorded in MP3 mode (e.g. music files with the extension .mp3).

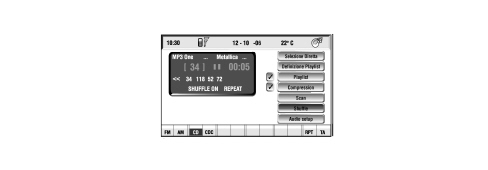

In CD MP3 mode, the menu to the right of the display will be as shown in the following figure.

The MP3 track names must not include the characters Open and Close Brackets “(“ “)“, otherwise the Connect system will be unable to play the tracks.

The Connect system automatically organises the tracks present on the CD in mp3 format into folders and creates sequential ists of all folders that contain MP3 tracks.

A CD could contain thousands of mp3 files. In this case, a maximum limit is set for the number of files managed. The system will consider only the first 999 music tracks and the display shows the following message for about 7 seconds: "Attention, only the first 999 MP3 CD tracks will be managed by the system

Refer to the Owner''s Handbook for more detailed user instructions on the AUDIO function.

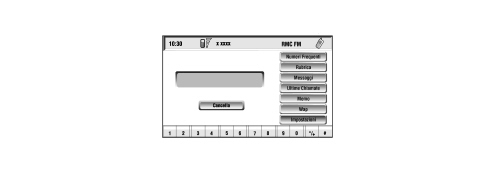

PHONE MODULE

The Connect system is equipped with a Dual Band GSM mobile phone with handsfree operation.

Functions available to the user

The phone module allows normal phone activity, text messages, support for Service Calls to the Provider (described in the relevant chapter) and Internet access by means of WAP (Wireless Access Protocol).

Phone functions

The phone module is used to:

• accept an incoming phone call.
• refuse an incoming call
• send a phone call

Sim data base access functions

The SIM Card database allows the following options:

• Read the list of phone numbers saved on the SIM card.
• Enter a phone number on the SIM
• Delete a phone number from the SIM.
• Copy the contents of a SIM phoneboook to the CONNECT phonebook and viceversa.
• Copy the contents of a SIM phonebook on another SIM.

Information is also provided on the status of the SIM (SIM Card corrected or incorrectly inserted) and the space available in the SIM memory.

Last number functions

The module is able to store the last 10 numbers called to help the user with repeat calls.

Sms message functions

The module manages text messages for the user and also from the Service Provider. It is therefore possibile:

• to display received messages that have not yet been read (full list or selected message).
• to display received messages that have been read or saved (full list or selected message).
• save a received message.
• delete a message (recently received or already saved).
• send a message to a particular number entered by the user.
• set up the Service Provider number for text messages.

Gsm status display functions

It is possible to obtain information on:

• aerial signal quality
• network operator''s name
• presence of text messages received but not yet read.

Configuration functions

"Call divert": incoming calls can be diverted to another phone number, specifying the type (Voice, Data..)

Network operater management: the module manages network operator selection (manual or automatic search) and also the user of a list of preferred operators (display, delete, input and overwrite functions).

Security: use of PIN code, PUK, display number of PIN input attempts remaining before PUK code requested, change PIN code.

Access to a WAP site requires data to be loaded into the memory (in technical terms: loading of the deck) and the first page (card) is not displayed until the end of the operation. The central part of the screen shows the text, links and selection/input options. The right side of the display shows the software keys (Vertical softkey) that are used to activate the possible card actions (max 6, usually in English).

For example, the following functions may be shown:

For example, the following functions may be shown:

• Next, Help, Back: key presence, number and functions depends on card content.
• The softkey "Card list" allows direct access to a card in the deck that has been loaded.

The lower bar shows browser functions that can be activated by means of the reconfigurable keys, described below:

• “Home”: access to the page set up as Home.
• "Previous": shows the previous card.
• “GO”: access to the specified page (insert address or bookmark).
• "In phonebook": saves the current address in the user bookmark file.
• cursor up, cursor down: up/down to scroll within a text window. If the card cannot be displayed in a single screen (the position in the page is displayed by the scroll bar on the left).

An hourglass is shown when data is loading.

ELEMENT SELECTION

To highlight/select active elements (link, selections, input, softkeys) in the card, use the selection knob to the left (rotate). Only the items shown on the screen can be highlighted. If a card takes up more than one screen, the scroll up/down options will be active in the lower bar.

CARD SELECTION

One of the cards in the loaded deck may be selected directly.

A WAP site may be accessed by specifying the address or selecting it from the list of bookmarks (if this operation is allowed by the Provider).

Phonebook.

The address of the WAP site may be stored in the phonebook (bookmarks) and associated with a name if required. The address is stored when the OK key is pressed.

Procedure for general use

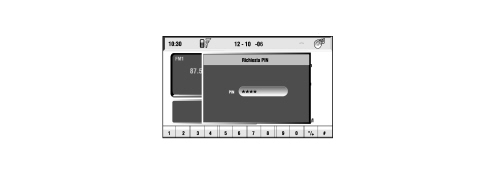

Before the phone module can be used, the user must enter a PIN security code whenever the CONNECT system is turned on after being turned off (unless "exclude PIN request" has been set under Settings). Unless the PIN code is entered, the system can be used only for emergency calls (112 in Italy) and not normal user calls or for the Service Call function.

If an incorrect PIN is entered three times, the module is bound to request the PUK code to release the block.

Management of controls from steering wheel

The phone module can be partly controlled by the buttons on the steering wheel.

Audio status repetition on the control panel display

The CONNECT module sends various information to the control panel via the CAN network on phone section operating status.

Voice recognition

Voice recognition module with speaker dependent functions (Phonebook, Navigation address book, Radio Station memory) and speaker independent functions for Radio, CD, CDC, Phone and Services, Navigation System. The speaker dependent function allows a voice command (prerecorded by the user) to be associated with a phone number in the phonebook, a stored radio station or a destination present in the destination list (personal).

The speaker independent functions allow the activation of general controls (e.g.: "Radio Autostore", "CD play", "Navigatore Zoom", ...).

Voice command

After pressing the VR key, the user can speak a voice command. The module compares the sample with those present in its memory and, if recognised, allows the relevant command to be activated (call one fo the phone numbers in the phonebook, select one of the preset stations as an audio source, start the autostore procedure for the radio stations in the current band, change to CD source, etc...) The system guides the user using voice information (Example - After pressing the VR key, the user says: "Call number" and the Connect responds: "Number please").

Speaker dependent functions

RECORDING RADIO VOICE COMMAND: When storing a radio station in one of the positions available in the radio bands (FM1, FM2, FM3….), the user can associate it with a voice command. Upon the user''s request, this gives rise to an initialisation stage when the module asks for a voice command to be entered and repeated and then confirms recording.

RECORDING PHONE (NAVIGATION SYSTEM) VOICE COMMAND: When entering a number and associated name in the phone book the user can associate a voice command with this item in the same way as with the radio stations.

RECORDING NAVIGATION SYSTEM VOICE COMMAND: When entering a destination in the navigation system address book the user can associate a voice command with this item in the same way as with the radio stations.

DELETING A VOICE COMMAND: The voice commands described above may be deleted or modified.

Speaker independent functions

The system does not require an initialisation stage to use this function (i.e. recording of voice samples by the user). Although the terminology has been designed to include commonly used phrases, it is nevertheless advisable to read the keyword table in the Connect User Handbook. As an example, the keywords for the CD player are given below.

LANGUAGES AVAILABLE: The following languages are availalbe for requests and communication with the user: Italian, English, French, German, Spanish and European Portuguese.

Record voice messages

This module, known as the Voice Memo, allows the user to record and re-enter voice messages up to 3 minutes long. The messages are recorded sequentially in the frame and a warning message is displayed if the memory contains messages.

Recording: the recording activated by the user can last up to 3 minutes and terminates automatically when the available time is up. The user can interrupt the recording manually in any case.

Voice memo management

The following functions are available:

• Play: plays the message
• Stop: interrupts playback or recording
• SKIP: skips to the next message
• SKIP: skips to the previous message
• Record: Starts recording
• Delete: clears the message memory (individual frames cannot be deleted).

Operation

Once the phone module is activated, it is always possible to make emergency calls to 112 regardless of whether a SIM card is present or a PIN has been entered.

When the Telephone module has been activated and no valid SIM card has been inserted, a warning message appears on the screen.

Insertion of a valid SIM card makes the phone operational and gives access to its functions.

The card must be inserted in its seat with the chip at the front and to the right in relation to the car''s direction of motion.

Correct SIM card insertion activates a request to enter the PIN code, as shown in the following figure.

Extraction of the SIM card with the phone active may give rise to temporary malfunction. In this case, turn off the phone by means of a long press on the TEL key or turn off Connect using the ON button before removing the SIM card.

After entering a valid PIN code, the following screen appears. The user can display the phone number to be called on the left part of the display.

The lower part shows icons with numbers from 0 to 9 and the “ */+ “ and “ # “ symbols found on a normal phone keypad.

A menu with these items appears on the right side of the display:

• FREQUENT NUMBERS
• ADDRESS BOOK
• MESSAGES
• LAST CALLS
• MEMO
• WAP
• SETTINGS

The Telephone Module functions are the same as for a mobile phone, i.e. in addition to PIN code input/update and emergency calls without a SIM card, the following are also available:

• call-up of phone numbers saved on the SIM card
• input of a new phone number on the SIM card
• deletion of a phone number from the SIM card
• information on SIM card status (correct or incorrect input)
• list of the last 10 numbers dialled
• list of the last 10 calls received
• text messages
• DTMF settings
• select network access provider
• set incoming call volume
• display remaining credit in the case of prepaid SIM cards
• display signal field intensity and other status reports by means of icons and messages

Refer to the Owner''s Handbook for more detailed user instructions on the TELEPHONE function.

NAVIGATION SYSTEM MODULE

Operation

The navigation system allows you to reach a destination set by the user by giving visual and acoustic instructions.

The navigation module built into the NIT receives data on progress (forward motion and reverse) and direction changes from information made available on the CAN network by the NBC. It cross-checks this with information received from GPS satellites by means of the GPS aerial on the car roof to calculate the Estimated Car Point (car location).

The navigation module does not contain a gyroscope because if no signals are received from the satelllites, the Navigation system recognises the car''s motion using vehicle motion information received from the CAN.

Upon initial activation and each time the battery is disconnected, the GPS takes about 15 minutes to activate.

The navigation system takes about 100km to self-regulate accurately from the first system start-up and when the tyres are changed.

If the engine is turned off and the vehicle is moved with the system off (e.g. on a pick-up truck), at the next key-on, the GPS system will take a few minutes to determine the car''s new position.

The navigation CD-ROM drive is located on the front of the Connect system and is the same as used for audio CDs.

It is not therefore possible to use the audio player and the navigation drive simultaneously: The navigation system can, however, work partly even without the navigation CD-ROM inserted.

Route guidance

The main function of the Navigation module is called Route Guidance. This is responsible for extracting, managing and processing the information required to guide the user to the set destination.

These activities are, basically:

• ROUTE CALCULATION: Calculation of the route between the current position and the destination. Route calculation with multiple destinations. Route recalculation in the case of deviation from the current route. Calculation of an alternative route.
• TRUE ROUTE GUIDANCE: Identification of the position of the vehicle on the route (and calculation of the distance to the destination); Identification of junctions along the route; Identification of manoeuvres at the junctions along the route (and graphic and voice instructions for the user): Calculation of the distance to the next junction where the user has to make a turn; junction zoom function in built-up areas.
• DIGITAL MAPS: The official M. MARELLI CD ROM contains a Map Database that is made available to all other system functions. Access to any map data (segments, areas, locations etc.) required by other modules takes place through one of the functions available on this CD ROM.
• COMPLETE DATA BASE MANAGEMENT: If a map CD-ROM is present, the navigation function uses the entire data base available (map list, points of interest, etc.).
• USE OF REDUCED DATABASE WHEN CD-ROM NOT PRESENT (LISTENING TO A MUSIC CD): It is possible to listen to an audio CD in the CD player during the navigation process. Simply following the procedure described. The map CD should be inserted in the CD player for the entire duration of the entering the destination and route calculation activities. At the end of this processing, the CD ROM can be removed using the eject button. At this point the system will: 1) automatically load the route calculated into the memory; 2) eject the map CD. The audio CD can now be inserted to start listening. Under these circumstances one part of the map information is available (names of towns and names of roads) relating only to the segments of the route. In any case, the reduced data base in the CONNECT memory allows deviations to the route with automatic recalculations without the need to reinsert the CD-ROM. However, the efficiency of these recalculations depends very much on the length of the original route. When the route data in the memory is not sufficient to continue the navigation process, there is a request to reinsert the map CD. If the system is switched off during navigation without a CD ROM, the next time it is switched back on, the map CD must be inserted to access the navigation functions.

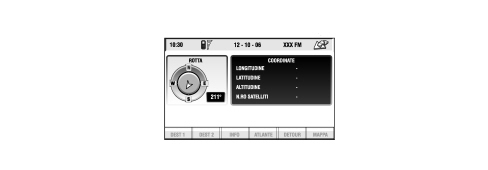

When the key is inserted, the Connect and Navigation system mobile are activated. A message appears reminding the customer that the navigation system is a tool that can help guide through traffic but the reponsibility always lies with the driver and the highway code must be respected at all times. When the control knob is pressed, the vehicle is the vehicle is located by the satellites and then the vehicle position co-ordinates are displayed as shown in the figure below.

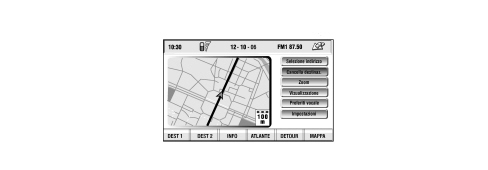

After location, the following screen appears showing a map with the car''s position and the main menu on the left.

Address book

The CONNECT contains two different address books: one for the phone and the other for the navigation system. The purpose of both is to make it easier to enter data (a phone number or destination) required by the user without going through a long procedure each time.

This operation may be carried out once only and the result is saved in CONNECT and associated with a memorable name. Then all you have to do is identify a saved option by selecting from a list or entering the memorable name.

Both address books are also stored in a back up memory (flash memory). This means that information stored persists even after the system has been turned on and off or after the battery has been disconnected.

Phonebook

The following fields are present in the phone book:

• name: memorable label for fast access to the list.
• Phone number: number used by CONNECT for calls.
• Position: origin of the item in the list.
• Voice recognition: voice sample for activation via voice recognition.

Name and number may be entered by the user during creation of a new address book item. In this case, the origin field indicates that the item is stored permanently in the CONNECT internal address book. Or Name and Number may be present on the SIM Card that the user has entered in the CONNECT SIM Reader. The System also displays this information as phone book items. After the Card has been inserted, the address book management module reads all the items on the Card and makes a copy by creating new temporary items if the name/number pair is not already present in the CONNECT address book. In this case, the position field indicates that the item comes from the SIM CARD.

This item type is deleted from the address book when it is downloaded or the system is turned off.

The following phone book functions are available to the user:

• enter new item
• delete all items in the phonebook
• listen to/delete all voice samples recorded by the user
• select item (open detailed window).

Detailed window:

• sent call to the selected number
• modify an individual item (name, number, listen/modify)

delete an individual voice sample:

• delete an individual item
• save an individual item in the Frequent Number list.

It is also possible to copy all the items from the CONNECT phonebook to the SIM Card and viceversa.

It is also possible to copy the contents of the phonebook on the SIM Card inserted to another SIM Card.

In any case, the content of the target phonebook will be completely overwritten.

Navigation system address book

The following fields are present in the navigation address book:

• name: memorable label for fast access to the list.
• Description of geographical location defined by user: string consisting of town name/street name or name of associated POI...
• Voice sample
• Co-ordinates: place co-ordinates (not visible to user and used internally for localisation or route calculation).
• The item may be entered in the address book when the destination is entered. It is also possible to associate a voice sample to be used to call up the address by means of the voice recognition function.

The functions available to the user for the address book are similar to those available for the phone book:

• delete existing item
• select item
• modify.

Refer to the Owner''s Handbook for more detailed user instructions.

Refer to the Owner''s Handbook for more detailed user instructions on the NAVIGATOR function.

TRIP COMPUTER MODULE

The Trip Computer module integral with the Connect manages and calculates a lot of information that can then be displayed on screen to supply a set of useful data on the route followed by the user.

Some information comes directly from the Navigation module, others comes from the various vehicle Nodes. For this reason, the Trip computer is fully operational only when the the ignition is ON and the network wakes up and can carry information required by the Trip Computer.

When the TRIP key is pressed, the TRIP COMPUTER module is activated and a screen appears with the following information:

• ARRIVAL TIME
• DISTANCE TO DESTINATION
• SPEED LIMIT
• RANGE
• INSTANTANEOUS FUEL CONSUMPTION
• TRAVELLING TIME
• DISTANCE TRAVELLED
• AVERAGE SPEED
• AVERAGE FUEL CONSUMPTION

The Trip module is able to calculate this data using information made available by other nodes on the CAN network.

To select this item, press the keys under the screen.

Press Trip (icon on the screen) to display information on the Main Trip. Press the Trip B key to display the same information but relating to Trip B.

The Main Trip and Trip B can be reset separately by pressing the RESET key.

The TRIP B can also be reset automatically, when the vehicle is switched off. This mode can be activated in the SETUP menu.

All the save and reset operations can be carried out only with the key ON.

When the SPEED key is pressed, a screen appears for the user to enter a speed limit and decide whether to enable alarm buzzer when the limit is exceeded.

Refer to the Owner''s Handbook for more detailed user instructions on the TRIP function.

EMERGENCY (SOS) AND ASSISTANCE (bCONNECT) SERVICES

The emergency, information and assistance services are managed by bCONNECT

The Connect makes two keys available for activating different Services.

• SOS KEY allows the activation of functions strictly connected with Rescue Services (doctor, roadside rescue) managed on subscription by bCONNECT (a paid service available as an option), a personal number and the EMERGENCY number 112 (always available, even without a SIM card inserted).
• CONNECT KEY: allows the activation of operations linked to information Services managed under subscription by bCONNECT.

Operation

Press the SOS key to display the following screen.

In detail:

• MEDICAL ADVICE: this function is present only if bCONNECT services are enabled.
• ROADSIDE ASSISTANCE: this function is present only if the bCONNECT services are enabled.
• PERSONAL NUMBER: this function is present only if the phone is on and if the SIM card is entered with the PIN keyed in and if the number has been set previously.
• EMERGENCY 112: this function allows a phone call to be made to the number 112 without the need to call up the phone menu and key in the number. 112 is the emergency number for all Countries where this public service is available. An Emergency 112 call can always be made, even if no SIM card is present in the slot.
• SETTINGS: this function allows certain operating modes to be entered and adjusted.

Refer to the Owner''s Handbook for more detailed user instructions.

MY CAR FUNCTION

The MY CAR set up function can be used to set a series of vehicle and Connect system parameters and operating modes.

The screen shows the setting and the language; the lower part of the display shows the following symbols:

• LANGUAGE
• DATE & TIME
• VEHICLE
• SYSTEM

To select this item, press the keys under the screen.

Pressing VEHICLE gives access to one or two setting menus depending on the vehicle trim level.

The menu consists of:

• INSTRUMENT PANEL BUZZER VOLUME: this adjusts the volume of fault/warning messages managed by the Instrument Panel
• INSTRUMENT PANEL KEY VOLUME: adjusts and cuts out (if necessary) the volume of the beep issued when the keys on the dashboard left panel are pressed
• DOOR LOCK FOR VEHICLE IN MOTION: activation or deactivation of the automatic door lock over a certain speed.
• RELEASE ONLY DRIVER''S DOOR: activation or deactivation of independent driver''s door release.
• INDEPENDENT BOOT RELEASE: activation or deactivation of independent boot release.
• RAIN/DUSK SENSOR: when active, a screen appears that allows sensor sensitivity to be adjusted.

Press SYSTEM to access the relevant menu:

In detail:

• INSTRUMENT PANEL: activates repetition of RADIO, TEL, NAV information on the instrument panel.
• SCREEN: allows adjustment of screen brightness and colour.
• POWER OFF: allows the user to choose a method for turning off the Connect: DEACTIVATION DEPENDENT ON THE IGNITION KEY or DEACTIVATION INDEPENDENT OF THE IGNITION KEY.
• UNITS OF MEASUREMENT: used to select units of measurement for some Trip data:

Refer to the Owner''s Handbook for more detailed user instructions.

REAR VIEW OF THE CONNECT

The following figure shows the rear view and the connectors.

Connector C/D/E

Connector B

Connector A

Connector F

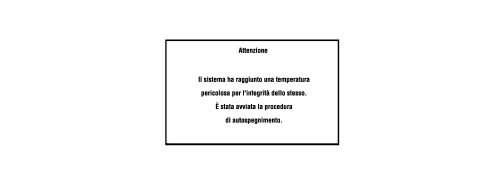

Excess temperature
