BLU&ME NAV

Description 5580M

Blue&Me

“BLUE&ME Nav”

BLUE&ME based on Windows Mobile is a personal telematic system which allows the use of applications for communication and entertainment, specially designed for use in vehicles.

The BLUE&ME system is available in two versions:

- standard version, with hands-free function for Bluetooth mobile phones with voice commands, SMS voice player and media player with USB port

- BLUE&ME Nav de-luxe version which, in addition to the previous functions, includes a satellite navigation system which uses the USB port, with map pre-loading and shows the navigation information on the control panel reconfigurable multifunction display.

The de-luxe BLUE&ME Nav system is described in this section.

The standard version is described in:

See descriptions 5570 ACCESSORIES

The control unit manages the entire system and is a CAN node through which information is exchanged with the Body Computer and with the other electronic units.

The entire operation of the system is also managed by voice commands, picked up the microphone near the front courtesy light.

The alphanumerical display used for text messages is the one for the control panel.

See descriptions 5560 INSTRUMENTS

The control unit is then connected to the controls on the steering (in addition to the radio control buttons there are 2 specific buttons for this function).

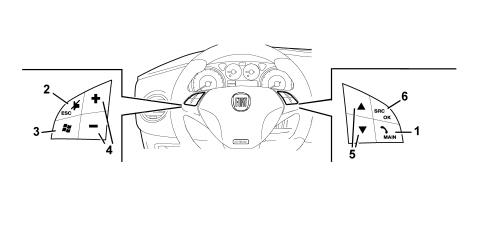

List of controls on the steering wheel functions:

For many functions, the controls on the steering wheel 6 and 1 are interchangeable and the preferred button can be selected.

For both operating modes for the controls on the steering wheel (short or prolonged press), the function is activated when the button is released.

"BLUE&ME" HANDS-FREE SYSTEM

The BLUE&ME system includes the hands-free function for Bluetooth mobile phones with voice commands, SMS voice player and media player with USB port.

Thanks to its complete integration with the voice commands, the controls on the steering wheel and the information in the on board multifunction display information, the Blue&Me system allows Customers who have a mobile phone with Bluetooth to use it even if it is in their jacket pocket or handbag without ever having to take their hands off the steering wheel.

In order to use the voice commands the voice recognition system does not require any preparation process. The system is capable of recognizing the voice commands given, irrespective of gender, by the tone of voice and intonation of the person giving the instructions.

It is possible to listen to music stored on a USB device, selecting the tracks and play modes using either the controls on the steering wheel or voice commands.

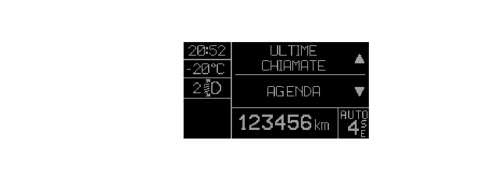

An example of a screen for the telephone input function is shown below:

Connection with bluetooth telephone

The system is connected to a mobile phone with a Bluetooth interface and hands-free profile.

The first connection between the mobile phone and the device (pairing procedure) is regulated by a password; the user connects by keying in the password into their own mobile phone in the menu for Bluetooth connections.

It is possible to memorize up to 5 users who are connected automatically at subsequent keys on without manual intervention on behalf of the actual user.

In each case, only one mobile phone can be connected to the control unit via Bluetooth.

The operation of the control unit is linked to the availability of the user''s mobile phone for Bluetooth hands-free profiles, in particular:

- the Bluetooth system comes on independently at the Key on and starts the search for Bluetooth (mobile) devices to connect with immediately.

- the equipment switches off independently at the Key off releasing any Bluetooth connection that may be activated: there is a delay of 30 seconds (provisional figure) to suppress accidental switching off of the engine (in traffic, at traffic lights, etc.).

- if a phonecall is in progress, the conversation is kept activated (except for the display in the control panel) even after the car is switched off; the control unit and the radio finally switch off at the end of the conversation.

List of compatible mobile phones

The current hands-free system with Bluetooth technology is compatible with all mobile phones that support Bluetooth 1.1 and a 1.0 hands-free probile (refer to the Bluetooth connection specifications in the mobile phone user manual).

As a result of the different possible software versions available on the market for different models of mobile phone, some additional functions (e.g.: second call management, call transfer from hands-free system to mobile phone and vice versa, etc.) may not correspond exactly to the description in the mobile phone user manual.

In any case, the possibility of carrying out a hands-free conversation will not be compromised.

The table below lists the mobile phones which, at the time this manual was updated, have undergone a full test on operation with the Bluetooth hands-free system; there are also other models listed for which full operation has not been tested.

Operating procedures

Incoming call:

- when a signal of an incoming call reaches the phone: the radio is turned to mute, the ringing of the mobile phone is produced through the speakers and the number/name of the caller (if available) is shown on the instrument panel display

- at this point the user can accept or reject the call

- during the conversation the user listens to the other person on the radio audio system and speaks via the microphone

- when the conversation is over the radio returns to its status prior to the call (volume, mode, etc.)

When a conversation is in progress, the user can carry out the following operations:

- alter the volume of the conversation using the radio Vol + and Vol - buttons. The level set can be reset at the end of the conversation: the next one will be at the radio default volume.

- move the conversation in progress from the Bluetooth control unit to the mobile phone on (and vice versa) to speak in private (local privacy)

- momentarily interrupt the conversation with the remote user (keeping them on hold) to talk privately with any passenger in the vehicle without being overheard by the user on the line (remote privacy)

- answer another incoming call and switch from one conversation to the other

- refuse another incoming call.

The last 2 functions in the list are linked to the presence on the GSM network, the user profile and the mobile phone of the necessary specifications and authorizations to manage 2 calls simultaneously.

Outgoing call

The user can make a call in 4 ways

- using their own mobile phone keypad

- using the list of recent calls

- using their own mobile phone list

- dictating the number they wish to call.

Media player

The Blue&Me multimedia player makes it possible to play digital audio stored on a USB device via your vehicle sound system simply by connecting it to the USB port on the vehicle at the base of the centre console next to the current socket/cigar lighter.

The following operations can be carried out using the multimedia player:

• reproduction of digital audio: it is possible to reproduce all digital audio files (.mp3 - .wma - .wav) or a personalized playlist (in .m3u or.wpl format);
• selection of audio depending on the category: it is possible to reproduce all digital audio that belongs to a certain category, for example an album, an artist or a musical genre;
• use the reproduction functions: it is possible, whilst playing tracks, to use certain functions such as Play, Stop, Next track, Previous track, Random and Continuous play.

The multimedia player does not support audio files compressed with other formats (e.g. .aac files downloaded from itunes for ipods) and DRM protected audio files (Digital Right Management). If there are audio files on the USB device that are not supported, they will be ignored.

The multimedia player supports the reproduction of digital audio files in the following formats:

Sms voice player

If the telephone supports this function, the system includes the SMS messages voice player. it involves an application that allows the Customer to listen to the automatic reading of the incoming message on their mobile phone via the vehicle audio system.

The Blue&Me SMS message reader allows the Customer to:

• be informed, by means of a warning message in the instrument panel multifunctiondisplay, of the arrival of a new SMS message on their mobile phone giving the name/number of the sender and Blue&Me can also read the message
• manage the SMS messages received list on a mobile phone connected to the Blue&Me system
• reread SMS messages already received and memorized.
• make a voice call, using the controls on the steering wheel or voice commands, to the sender of the SMS message received.
• delete individual SMS messages or the entire list of SMS messages received using the controls on the steering wheel or voice commands.

The Blue&Me system is also capable of recognizing and reading any abbreviations (for example, "TVB" will be read as "Ti voglio bene" - I love you) and interpreting the most frequently used symbols (e.g. :-) will be read as "Smile") in text messages.

The table below lists the mobile phones which, at the time this manual was updated, have undergone a full test on operation with the Bluetooth hands-free system and manage the SMS voice player function correctly.

Some mobile phones in the list may not support the transmission of interlinked SMS messages (with more than 160 characters). Therefore, refer to the user manual for the mobile phone.

Navigator

The Blue&Me Nav system also has a navigator that allows a desired location to be reached quickly and safely.

Voice messages and pictograms and the names of roads are shown in the instrument panel display to help guide you to a destination.

The navigator makes it possible to:

- enter a new destination

- navigate to a point of interest (that can be selected from a list of categories such as, for example, hotelts, restaurants, airports, railway stations, etc.)

- acquire journey information (arrival time, distance of the destination, vehicle position)

- recover the last destinations memorized

- set preferences for the type of route, such as, for example, motorways, toll roads

- simulate the route in advance.

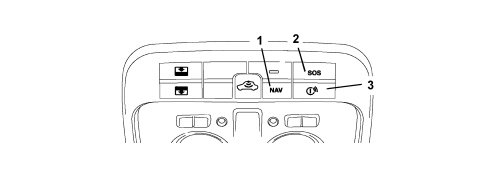

The navigation system is managed using voice commands and three additional control buttons located in the panel in front of the centre courtesy light.

1 - NAV

2 - SOS

3 - Info

List of functions:

(*) SOS and Info services may not be available at the time the vehicle is purchases; to get information on availability and activation, call the freephone number CIAOFIAT 0080034280000 or consult the dedicated area at www.fiat.com

Navigation system

The navigation module receives data on progress or change in direction from the vehicle sensors. This information is accumulated and processed by a dedicated algorithm which, also taking the current position obtained from the GPS satellites into account, allows the estimated point to be calculated: location of the vehicle.

Vehicle position is identified by analysing GPS data together with speedometer and reverse gear signals received from the vehicle.

The navigation maps are loaded onto the USB device connected to the USB port on the vehicle.

In order to use the voice commands the voice recognition system does not require any preparation process. The system is capable of recognizing the voice commands given, irrespective of gender, by the tone of voice and intonation of the person giving the instructions.

OPERATION:

To start using the navigation function proceed as follows:

- connect the USB device, with the pre-loaded maps, to the USB port on the vehicle;

- make sure that the ignition key is in the ON position;

- press the windows command on the steering wheel and say "Navigation": at this point say "New destination" and then "Address":

- the system will ask for the desired country, say the country for your destination;

- the system will then ask for the name of the destination town to be entered starting with manual interaction followed by a voice command;

- scroll using the up and down buttons for the characters required to compose the name of the town confirming each one selected by pressing the SRC button;

- as soon as a sufficient number of characters has been entered, the system will way the name of the town. It will then be possible to continue by entering the name of the town using the controls on the steering wheel;

- continue by entering the name of the destination road, using the same method as previously,

- say "Start" to start the navigation immediately.

The address can only be entered when the vehicle is stationary for safety reasons.

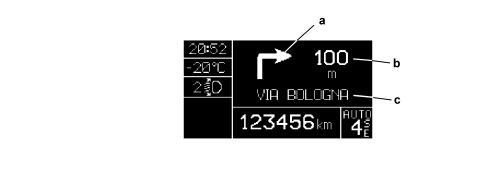

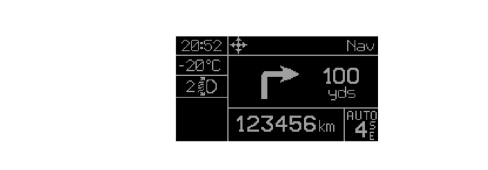

The manoeuvres to be carried out (turn right, turn left, rotation, straight on or reverse direction) will be shown, by means of pictograms on the control panel reconfigurable multifunction display.

The display will also show the name of the road being driven along and the distance to a manoeuvre; when close to a turn the name shown will be the name of the road where the manoeuvre needs to take place.

a - Navigation pictogram

b - Distance to the next manoeuvre

c - Name of the road

The voice instructions given by the system recommended all the manoeuvres to be carried out: in particular, the manoeuvre is announced first and then detailed instructions are given.

In order to become familiar with all the navigator functions and modes, refer to the handbook that comes with the vehicle.

System components

The main components of the C3 version system are:

• Bluetooth electronic control unit
• microphone
• steering wheel controls
• USB port for connection of Media Player and software update
• aerial for GPS
• GSM aerial
• additional control buttons located in the trim in front of the front courtesy light

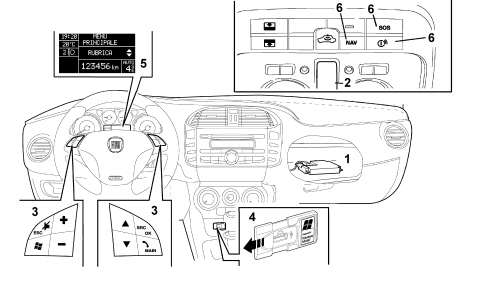

1 - electronic control unit

2 - microphone

3 - controls on the steering wheel

4 - USB port

5 - Instrument panel display

6 - Additional buttons

Control unit

The C3 version control unit includes the following modules:

- Bluetooth receiver

- integrated voice recognition module

- Text to Speech integrated module

- USB interface

- SMS reader.

- dual band GSM/GPRS module

- GPS receiver.

The control unit that manages the entire system is a node of the CAN through which information is exchanged with the Body Computer and the other electronic units (e.g. the navigation system downloads information from the odometer, reverse engagement signal etc.) ).

The control unit is connected via the CAN to the radio node and the Body Computer which, in turn, is connected to the controls on the steering wheel.

The entire operation of the system is also managed by voice commands, picked up the microphone near the front courtesy light.

Each piece of equipment responds to its own commands depending on the button activated and the operating mode activated at the time (in this case the Bluetooth control unit prevents the radio from carrying out commands from the CAN when the hands-free function is activated).

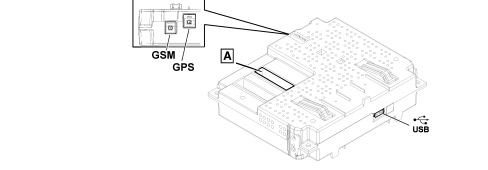

Control unit pin out

- USB: USB port that can be used as an alternative to the one located at the base of the centre console.

- GSM: Connection for GSM aerial located on the roof

- GPS: Connection for GPS aerial located on the roof

- Connector A:

Aerials

The GPS consists of an aerial that allows the vehicle to be GPS satellite-located: The aerial is connected to a receiver located in the control unit by means of a special shielded cable.

The GSM aerial is connected to the GSM unit inside the control unit used for the connection of GPRS data for telematic services (SOS, Info, etc.)

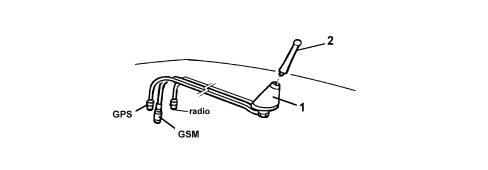

The stylus aerial is fitted at the rear of the roof: it performs three functions (radio/GSM/GPS) because it also incorporates the radio aerial.

GPS - connection with GPS device

GSM - connection with GSM aerial

radio - connection with AM-FM aerial

1 - aerial mounting

2 - triple function outside aerial

Service operations for the system

Fault diagnosis

The control unit is connected via the B-CAN to the radio node and the Body Computer; therefore the diagnostic activities are carried out, in the same way as for all the other CAN "nodes", via the special diagnostic socket and the Examiner equipment.

The following operations can be carried out using this method:

- language change for voice messages;

- software update.

USB pen: The USB "pen" to be used should have the following specifications: USB standard version 1.0, 1.1 or 2.0 with minimum memory of 256 MB, compatible with "WINDOWS XP" or "WINDOWS 2000".

Whilst this "pen" is being used for the above mentioned operations, it will be "formatted" and therefore all data stored in it previously will be lost !

Languages

The following languages are available, both for the text strings displayed (menu) and for voice recognition and text to speech messages:

• French
• English
• German
• Italian
• European Spanish
• Dutch
• Polish
• European Portuguese
• Brazilian Portuguese

As far as the messages shown on the display are concerned, the languge selected is the one set for the control panel

See descriptions 5560 INSTRUMENTS

As far as the voice recognition and text to speech messages are concerned, the language should be set separately using the Examiner diagnostic equipment, inserting a USB "pen" in the special socket.

Proceed following the instructions below.

Software update

Similarly, any control unit software updates should be entered using the Examiner diagnostic equipment with a USB "pen" to be inserted in the special socket.

Proceed following the instructions below

Never disconnect the battery terminals during the software updating or language updating procedure.

Control unit replacement

The battery terminals must be disconnected before removing the old control unit.

Order a new control unit from the Parts Dept. who will send a pristine component. once fitted; the initial default data must be transferred to it by carrying out the "PROXI ALIGNMENT" procedure using the Examiner.

Once a new control unit is installed it is necessary to:

- update the software;

- check and, if necessary, set the voice message language correctly;

- carry out the pairing operation for the telephones to be connected.

Op. 5570T49 BLUETOOTH ELECTRONIC CONTROL UNIT - R.R.

Operations using the examiner

To carry out the language change operations for voice messages and software updating, a special operating system must be temporarily installed on the Examiner, using the special "WINDOWS MOBILE FOR AUTOMATIVE EXAMINER CD" CD-ROM supplied together with the traditional Examiner software updates.

In addition, as already pointed out, a USB "pen" is required for transferring the data to the system control unit.

The pen should have the following specifications: USB standard version 1.0, 1.1 or 2.0 with minimum memory of 256 MB, compatible with "WINDOWS XP" or "WINDOWS 2000".

Whilst this "pen" is being used for the above mentioned operations, it will be "formatted" and therefore all data stored in it previously will be lost !

Never disconnect the vehicle battery terminals during any of the operations indicated

Always follow the sequence described below (for all of the operations):

- switch on the Examiner following the traditional operating methods

- insert the "WINDOWS MOBILE FOR AUTOMOTIVE EXAMINER CD"

- switch off the Examiner

- insert the USB "pen" in the special port at the back of the Examiner

Warning: the "pen" is NOT "recognized" if it is inserted with the Examiner on.

- restart the Examiner.

At this point the Examiner will work temporarily with the special operating system and it is capable of transferring the data necessary for the following operations to the USB pen:

- individual language setting

- multi language setting

- software update

Only one of these three operations can be carried out at a time; in order to carry out two operations on the same system (e.g. language change and software update) the instructions illustrated previously must be repeated twice separately.

- follow the instructions until the pen preparation operations are completed (the Examiner will advise you)

- remove the USB "pen"

- extract the WINDOWS CD

- switch off the Examiner

ALTERNATIVELY, THESE OPERATIONS CAN BE CARRIED OUT USING A PERSONAL COMPUTER, OPERATING "WINDOWS XP"

- take the USB "pen" to the vehicle

- with the ignition OFF, insert the USB "pen" in the special USB port in the control unit or in the external one, located at the base of the centre console next to the current socket/cigar lighter.

- turn the ignition key ON

At this point the control unit will carry out the operation requested (language change or software update):

- at the end a display message in the control panel will advise that the operation is over

- check that the operation has been successful (e.g. check the voice message language by giving an instruction).

Never disconnect the vehicle battery terminals during any of the operations indicated

Warnings on the use of the system software

This system contains software under licence from Fiat Auto S.p.A. in accordance with a licensing contract.

Any removal, reproduction, reverse engineering or other unauthorized use of the software for this system in violation of the licensing contract is strictly prohibited.

Tampering inside the Blue&Me device or installing unauthorized software can lead to the cancelling of the warranty and adversely affect the security of the information stored.

Read all the warnings relating to the "LICENCE CONTRACT" on the pages at the end of the "BLUE&ME" appendix to the handbook very carefully.

* Microsoft is a registered make of the Microsoft Corporation.

* Sony is a registered make of the Sony Corporation.

* Ericsson is a registered make of Telefonaktiebolaget LM Ericsson.

* Motorola is a registered make of Motorola, Inc.

* Nokia is a registered make of the Nokia Corporation

* Siemens is a registered make of Siemens AG.

* Orange is a registered make of Orange Personal Communications Services Limited

* Audiovox is a registered make of the Audiovox Corporation.

* Bluetooth is a registered make of Bluetooth SIG, Inc.
