CRUISE CONTROL LEVER ASSEMBLY - R+R

Operation 5580A10 · CRUISE CONTROL SYSTEM

Removing

Op. 7040A26 STEERING COLUMN TRIM - R+R

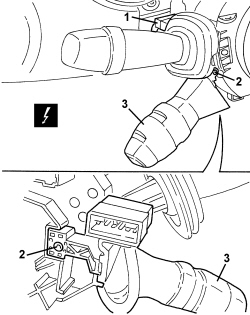

1. Disconnect the electrical connection for the cruise control lever

	Description	Connector
1	CRUISE CONTROL COMMAND	See H007 CRUISE CONTROL SYSTEM CONTROL

2. Undo the bolts fixing the cruise control lever.

3. Remove the cruise control lever.

Refitting

- Check that the cruise control lever is not damaged.

- Position the cruise control lever.

- Tighten the retaining bolts.

- Connect the electrical connection for the cruise control lever.

Op. 7040A26 STEERING COLUMN TRIM - R+R
